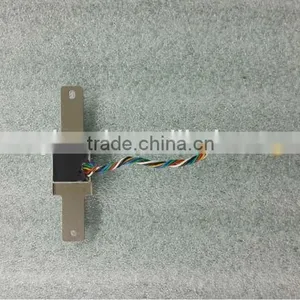

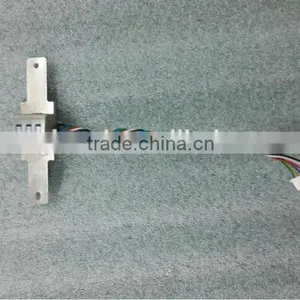

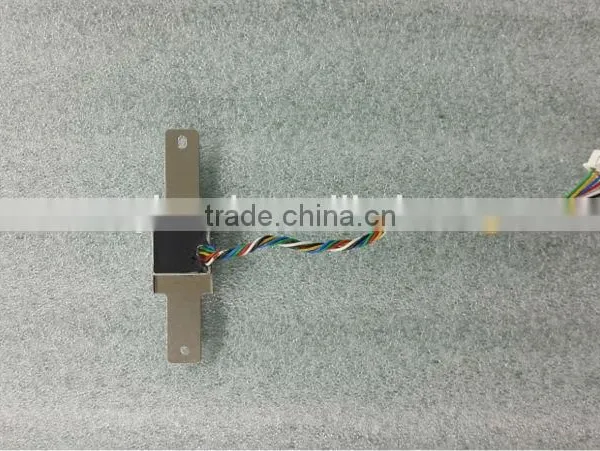

Help CenterEncrypted IC With Magnetic Head
Related Products
Specifications
encrypted IC with magnetic head used in POS• 1-, 2-, 3-track read head series used in POS (point of sales), magnetic card readers/writers, credit/debit cards
• 2M-1RXXXX-1 series (1-track read head series):
o Outline dimensions: 11.0mm x 8.0mm (L x W)
o Head height: 8.0mm to 9.7mm
• 2M-2RXXXX-1 series (2-track read head series):
o Outline dimensions: 11.0mm x 8.0mm (L x W)
o Head height: 8.0mm to 9.7mm
• 2M-3RXXXX-1 series (3-track read head series):
o Outline dimensions: 11.8mm x 11.0mm (L x W)
o Head height: 8.0mm to 9.7mm
Main parameters include inductance, DC resistance, gap width and more. Adjustable as follows:
o Inductance from 16 mH to 110 mH
o DC resistance from 20 ohm to 350 ohm
• Normal lifetime (500,000 times) and long-lifetime (more than 1,000,000 times) technology support(sendust).
Core: permalloy, sendust
Products ID include “s” is sendust.
• We supply several mounting brackets for read heads.
