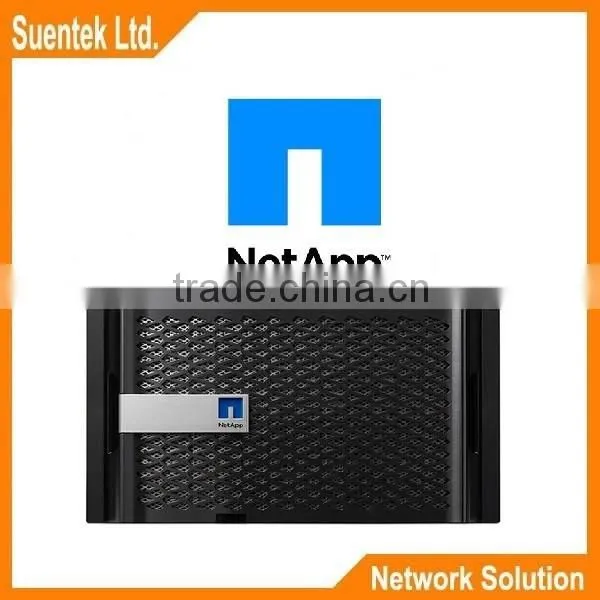

NetApp FAS8000 Series FAS8040

NetApp FAS8000 Series FAS8040 thumbnail-1
NetApp FAS8000 Series FAS8040 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Enterprise
LAN Ports:
Other
Contact Supplier Request Quote Chat Now
Guangzhou Suenyuet Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Enterprise
LAN Ports Other
WAN Ports Other
Brand Name NetApp, NetApp
Model Number FAS8040
Place of Origin United States

NetApp FAS8000 Series Unified Scale-out Storage for the Enterprise

Accelerate business operations and deliver superior TCO with the industry’s only unified scale-out storage architecture.

Adapt faster to changing business needs while achieving core IT requirements for uptime, scalability, and cost efficiency, by using the NetApp® FAS8000 Series storage systems.

Our most powerful hybrid storage array, the FAS8080 EX (PDF) is purpose-built for business-critical workloads requiring massive performance (up to 4M IOPS), multi-PB scale, and leading flash integration—including all-flash configurations.

Complete business operations faster. Realize consistent application performance across a broad range of SAN and NAS workloads. FAS8000 unified scale-out systems boost throughput and decrease latency with a new high-performance, multicore architecture and self-managing flash acceleration.

Streamline IT operations. Leverage simplified management and proven cloud-provider integration to deploy the FAS8000 in your data center or hybrid cloud. Nondisruptive operations simplify long-term scaling and improve uptime.

Deliver superior TCO. Reduce capacity utilization and improve long-term ROI via proven storage efficiency and twice the price/performance of the previous generation. Integrate existing arrays with the FAS8000 using NetApp FlexArray™ storage virtualization software to increase consolidation.

Key Points

  • Accelerate SAN and NAS workloads with 2x the performance; scale to 103PB.
  • Increase return on assets and cloud-enable existing storage with FlexArray.
  • Perform installs 3x faster and simplify application integration.
  • Consolidate storage and improve price/performance by 2x.
  • Deliver nondisruptive operations and greater than 99.999% availability.

 Technical specifications for the NetApp FAS8000 Series unified scale-out storage

  FAS8040
NAS Scale-Out 1–24 nodes (12 HA pairs)
Maximum drives 8,640
Maximum capacity 51PB
Maximum Flash Pool™ capacity 576TB
Maximum memory 768GB
SAN Scale-Out 1–8 nodes (4 HA pairs)
Maximum drives 2,880
Maximum capacity 17PB
Maximum Flash Pool capacity 192TB
Maximum memory 256GB
Cluster interconnect 2 or 4 10GbE



Per HA Pair Specifications (Active-Active Dual Controller)


  FAS8040
Maximum capacity 4320TB
Maximum Flash Pool capacity 48TB
Maximum drives 720
Controller form factor Single-enclosure HA; 2 controllers in single 6U chassis
Memory 64GB
Maximum Flash Cache™ 4TB
Maximum Flash Pool 48TB
Combined flash total 48TB
NVRAM 16GB
PCIe expansion slots 8
Onboard I/O: UTA2
(10GbE/FCoE, 16Gb FC) 		8
Onboard I/O: 10GbE 8
Onboard I/O: GbE 8
Onboard I/O: 6Gb SAS 8
Storage networking supported FC; FCoE; iSCSI; NFS; pNFS; CIFS/SMB
OS version Data ONTAP 8.2.1 RC2 or higher
High-availability features Alternate Control Path (ACP); Ethernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optic
Supported configurations




Data ONTAP 8.2.x 		Clustered Data ONTAP configurations:
  • Single-node cluster
  • Two-node switchless or switched cluster
  • Clusters of HA pairs
7-Mode configurations:
  • Single controller
  • Active-active controller with controller failover and multipath HA storage

7-Mode MetroCluster™ configurations:

  • Active-active controller with stretch (non-switched storage) MetroCluster
  • Active-active controller with fabric-attached (switched storage) MetroCluster

Supported configurations




Data ONTAP 8.3

Clustered Data ONTAP configurations:

  • Single-node cluster
  • Two-node switchless or switched cluster
  • Clusters of HA pairs

MetroCluster Clustered Data ONTAP configurations:

2 x two-node switched or switchless clusters with fabric-attached (switched) storage; 4 nodes total: a 2-node active-active cluster at each site total)
Disk shelves supported DS2246 (2U; 24 drives, 2.5" SFF)
DS4246 (4U; 24 drives, 3.5" LFF)
DS4486 (4U; 48 drives, 3.5" LFF)
DS4243 (4U; 24 drives, 3.5" LFF) supported for upgrades only
DS14 disk shelves (mk2-AT, mk4) are supported for upgrades only
See NetApp Disk Shelves and Storage Media for more details on each disk shelf and supported drive types.
Maximum RAID group sizes

RAID 6 (RAID DP®):

Performance disk: 28 (26 data disks plus 2 parity disks)

Capacity disk: 20 (18 data disks plus 2 parity disks)



RAID 4:

Performance disk: 14 (13 data disks plus 1 parity disk)

Capacity disk: 7 (6 data disks plus 1 parity disk)

RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror®)
Operating systems supported Windows® 2000, Windows Server® 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux®, Oracle® Solaris, AIX, HP-UX, Mac® OS, VMware®, ESX®
Max. number of LUNs 8,192
Number of supported SAN hosts Up to 512 hosts per HA pair
Up to 24 directly connected servers per HA pair
FlexVol® volumes Up to 1,000 per controller (clustered Data ONTAP); up to 500 per controller (7-Mode)
Snapshot® copies Up to 255,000 per controller
Maximum volume size 100TB
Maximum aggregate size 324TB
Maximum Port Count (Includes Integrated Ports and PCIe Expansion Slots)
FC target ports (16Gb autoranging) 24
FC target ports (4Gb or 8Gb) 40
FCoE target ports, UTA (max.) 24
10GbE ports (max.) 32
GbE ports (max.) 40
6Gb/12Gb SAS ports (max.) 40
FC initiator ports (max.) 40
Maximum Adapters
Dual 10GbE (optical or copper) 8
Dual 10Gbase-T (RJ-45,CAT 6A-E) 8
Quad GbE (copper) 8
Dual 10GbE/FCoE 16Gb FC Unified Target Adapter 2 (UTA2, optical or copper for 10GbE/FCoE deployments, optical for 16Gb FC) 8
8Gb FC target 8
Flash Cache Performance Acceleration Module (2TB) 2
Flash Cache Performance Acceleration Module (1TB) 4
Flash Cache Performance Acceleration Module (512GB) 8
Quad 6Gb SAS storage HBA 8
Quad 12Gb SAS storage HBA 8
Quad 4Gb FC storage/tape HBA (fiber) 8



System Environmental Specifications

  FAS8040
Thermal Rating (at 200V) 1,495 BTU (typical)

1,843 BTU (worst case)
Weight (heaviest) 119.49lb.
Height 6U
Width 19" IEC rack-compliant (17.6", 44.7cm)
Depth 24.3" (28.9" with cable management)
Operating temperature, altitude, and relative humidity 10°C to 40°C (50°F to 104°F); at <= 3,000m (at <= 10,000') elevation; 20% to 80% relative humidity, noncondensing (28°C wet bulb temperature)
Nonoperating temperature and relative humidity –40°C to 70°C (–40°F to 158°F); 5% to 95% relative humidity, noncondensing, in original container
Operating acoustic noise  FAS8020:
  • Declared sound power (LwAd) per ISO 9296: 7.8 Bel
  • Sound pressure (LpAm) (bystander positions): 62.6 dB

FAS8040/FAS8060:
  • Declared sound power (LwAd) per ISO 9296: 7.6 Bel
  • Sound pressure (LpAm) (bystander positions): 62.4 dB

FAS8080 EX:
  • Declared sound power (LwAd) per ISO 9296: 7.5 Bel @ normal operating conditions (at 23°C and at sea level)
Compliance RoHS-compliant (PDF)
Safety/emissions/immunity Safety: EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, CU, BIS, BSMI, SONCAP, NRCS LOA (South Africa)

Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI



NetApp Systems Cabinet

  FAS8040
Rack space 42U
Dimensions (height/width/depth) 78.75" (200cm)/23.6" (60cm)/44.3" (112.5cm)
Minimum cabinet clearances for airflow 10" (25.4cm) front and 12" (30.5cm) rear
Minimum cabinet clearances for service 30" (76.3cm) front and rear, 12" top
AC power 200 to 240VAC
Current 30A single-phase or 3-phase
Weight (empty) 307lb. (138kg)
Features Split rear door with cable egress opening, reversible front door (left or right handed)





Relative goods:



FAS 8080EX, FAS8060, FAS8040, FAS8020
