Help CenterAutomatic Flat-bed Label Die-cutting Machine
Related Products
Specifications
Automatic Label Die-cutting Machine1.Max.Speed:180times/min
2.Max.Unwinding Dia:450mm
3.Main power:2.2kw
4Size:2.8*1.1*1.5m

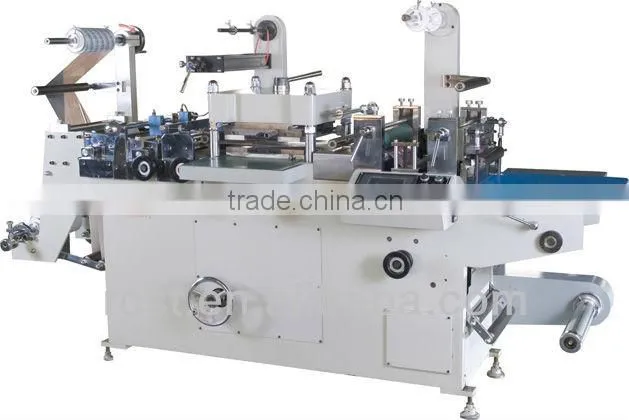

Automatic Flat-bed Label Die-cutting Machine
Product Description:
A) The machine adopts flat-bed mode and the material runs stably.
B) Servo motor controls the driving to ensure precise material transportation.
C) The machine has auto edge correction and electric eye tracer which ensure high precise die-cutting.
D) It can do die-cutting, waste discharging, sheeting and rewinding in one process.
E) It is optional for the machine to add separate unwinding unit, lamination, stamping and punching.
F) Multi-function design makes the machine fit for adhesive, Nylon, laser anti-counterfeit and blank label die-cut. It is a complementary equipment for rotary label printing machine, flexo printer, screen printers etc.

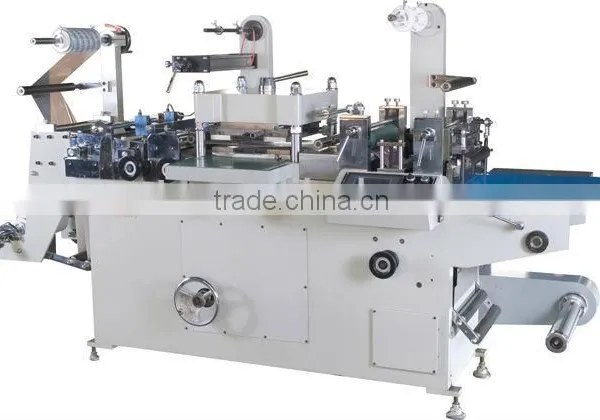

Automatic Flat-bed Label Die-cutting Machine
Technical Variables:
Items |
Specifications |
Specifications |
Unit |
Paper Width |
320 |
350 |
mm |
Max Die-cutting Size |
300*290 |
350*300 |
mm |
Max Die-cutting Speed |
120 |
times/min |
|
Main Power |
3 |
3 |
KW |
Overall Dimensions |
2800*950*1400 |
2800*1100*1500 |
mm |
Machine Weight |
1400 |
1500 |
kg |
In the field of label printing machines, we have been issued the following certificates and have been honored with many awards, such as:
Type of Certificate |
Quality management certificate: ISO 9001: 2008 standard |
CE: CE Certificate |
Type of Honor |
Science & Technology Progress Award of Tangshan |
The Title of Famous Trade Mark of Hebei Province |
National SME Technology Innovation Fund for Projects to Support Enterprises |
Enterprise Technology Center of Hebei Province |
Host Reviser of National Standard on “Rotary Printing Press Industry Standard” in Year 2011 |
One of the Top Ten Creative Brands of Printing Press Industry of Year 2010 |
Excellent Performance Award of China Label Industry in Year 2009 |
Famous Brand of Hebei Small & Medium-Sized Enterprises |
Good Quality and Credit Standing Demonstrating Enterprise |
