Help CenterAutomatic Flexo Coating Machine
Related Products
Specifications
Automatic Flexo Coating Machine1.Max.web width:320mm
2.Printing Speed:15-60m/min
3.Printing Length:178-340mm
4.weight:800kg

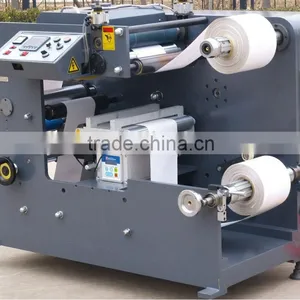

Automatic Label Flexo Coating Machine
This machine is generally used for one color roll paper flexo printing (70-250gsm) and self-adhesive paper coating (solid printing). It has functions of IR drying and re-winding. The main motor is driven by converter with auto tension control unwinding and rewinding.
Automatic Label Flexo Coating Machine
Technical Variables:
Item |
Specification |
Max.web width |
320mm |
Printing Speed |
15-60m/min |
Max. Unwinding Dia. |
500mm |
Max. Rewinding Dia. |
500mm |
Printing Length |
178-340mm |
Printing Color |
1 Color |
Main Power |
1.5 kw |
Overall dimensions(L*W*H) |
1500*1100*1300 mm |
Weight |
800 Kg |
Automatic Label Flexo Coating Machine
Main Features of the Machine:
Feeding and discharging are controlled through magnetic powder brake and clutch
Adopt ceramic anilox roller, which is characterized by durability, wear resistance, and corrosion resistance as well as more efficient for reducing the times for changing in order to increase the production efficiency.
The rolling device is adopted clipping device with pneumatic core shaft...
The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
In the field of label printing machines, we have been issued the following certificates and have been honored with many awards, such as:
Type of Certificate |
Quality management certificate: ISO 9001: 2008 standard |
CE: CE Certificate |
Type of Honor |
Science & Technology Progress Award of Tangshan |
The Title of Famous Trade Mark of Hebei Province |
National SME Technology Innovation Fund for Projects to Support Enterprises |
Enterprise Technology Center of Hebei Province |
Host Reviser of National Standard on “Rotary Printing Press Industry Standard” in Year 2011 |
One of the Top Ten Creative Brands of Printing Press Industry of Year 2010 |
Excellent Performance Award of China Label Industry in Year 2009 |
Famous Brand of Hebei Small & Medium-Sized Enterprises |
Good Quality and Credit Standing Demonstrating Enterprise |
Wanjie Printing Machinery Company was founded in 1999, is the first one who research and manufacture trademark printing machine of northern. Our Company locates in the Northern Printer Base of China -Yutian, Tangshan city, Hebei, with a total area of 21 acres. The first color-coated steel shop take up 4000 square meters, with consummation mechanical processing and testing equipment. We always adhere to that "science and technology as a guide, and the market for the prop, the quality of survival" and as it as sustainable development strategy. It has become a high-tech enterprise with strong researching and independent producing ability
We have set up fully-funded branch sale in many areas of china. Product marketing net works in major cities throughout the country. In addition, it sold far away as Malaysia, Indonesia, Pakistan, South Korea and other countries.
Our company animates by superior products, preferential prices and consummation services to benefit the community, to produce better label printing machinery. We given full play to own advantages in scientific research and technology development, aggregate years of label printing machinery manufacturing experience, make every effort to forge ahead, commit to the label printing machinery and related auxiliary equipment research and development work.
Welcome you visit our factory!
