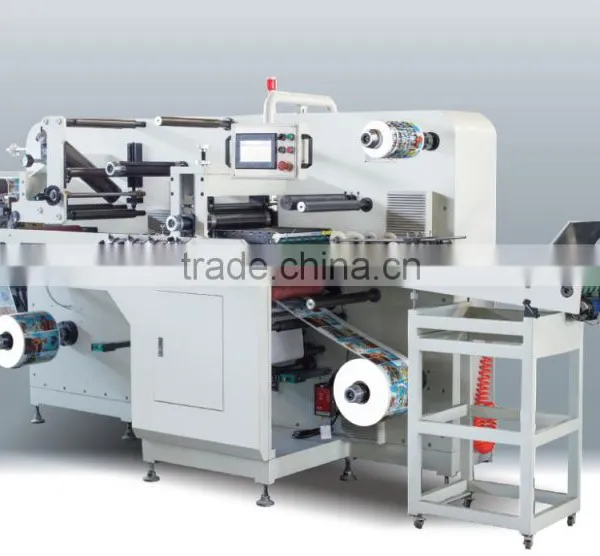

High-speed intermittent and full-rotary die-cutting machine
Product Description
1,The die-cutting part adopts intermittent feeding mode, using a fixed-diameter magnetic roller. The die-cutting to various size and design of the products is realized by changing the steel die.
2,The rotary die-cutting mode ensures a stable die-cutting pressure and easy adjustment
3,Magnetic clutch and brake makes a good control on rewinder and unwinder, which ensures the constant tension while the material is running.
4,4 servo motors ensure the high precision of die-cutting and speed.
5,Touch screen makes the operation easily. Remote diagnose and repair can be achieved as well.
6,According to the client's requirement, it can be equipped with inkjet, laminating, cold foil stamping and slitting functions.
| Intermittent Max die-cutting speed | 300cycle/min(60m/min) |
| Full rotary Max die-cutting speed | 110Meters/min |
| Non-adhesive die-cutting precision | ±0.15mm |
| IML die-cutting precision | ±0.25mm |
| Max die-cutting area | 350mm×340mm (L×W) |
| Unwinding width | 100-350mm |
| Max unwinding diameter | ø700mm(≈2000meters) |
| Max rewinding diameter | ø700mm(≈2000meters) |
| Magnetice roller | 120Teeth 1/8"CP (Standard) |
| Repeat die-cutting length | 50mm~350mm |
| Main motor | 10kW |
| dimension | 2900mm×1200mm×1500mm |
| weight | 3200KGS |
In the field of label printing machines, we have been issued the following certificates and have been honored with many awards, such as:
Type of Certificate |
Quality management certificate: ISO 9001: 2008 standard |
CE: CE Certificate |
Type of Honor |
Science & Technology Progress Award of Tangshan |
The Title of Famous Trade Mark of Hebei Province |
National SME Technology Innovation Fund for Projects to Support Enterprises |
Enterprise Technology Center of Hebei Province |
Host Reviser of National Standard on “Rotary Printing Press Industry Standard” in Year 2011 |
One of the Top Ten Creative Brands of Printing Press Industry of Year 2010 |
Excellent Performance Award of China Label Industry in Year 2009 |
Famous Brand of Hebei Small & Medium-Sized Enterprises |
Good Quality and Credit Standing Demonstrating Enterprise |
