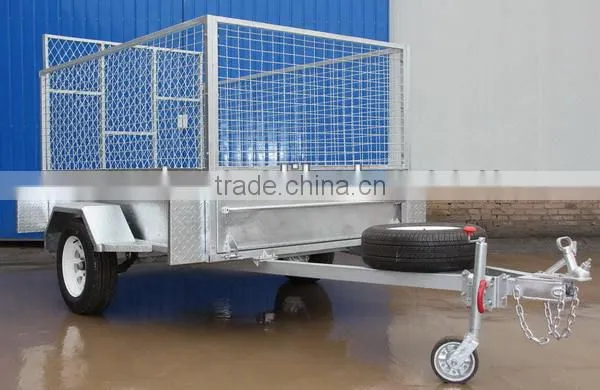

Help Center8*5 Ramp Trailer
Related Products
Specifications
8*5 hot-dipped galvanized box trailerFinish: Hot dipped galvanized
Heavy duty type
New model
Box trailer with ramp
Trailer specification table:
Size/FT |
No. of axles |
No. of brakes |
Tire size |
Draw bar tube/mm |
Drawbar length from front gate/mm |
Bottom chassis frame tube/mm |
Box height/ mm |
Ground clearance height/ mm |
ATM/kg |
6x4 |
1 |
0 |
175R13 |
70*50*3 |
1500 |
50x50x2.5 |
300 |
950 |
750 |
7x4 |
1 |
0 |
175R13 |
70*50*3 |
1500 |
50x50x2.5 |
300 |
950 |
750 |
8x5 |
1 |
0 |
185R14 |
70*50*3 |
1500 |
50x50x2.5 |
300 |
950 |
750 |
Trailer body construction and materials
Trailer side panels, front panel & tailgate: 2.5mm thick steel checker plate with checker side inside the trailer
Trailer floor: 2.5mm thick steel checker plate welded onto chassis;
Trailer mudguards: 2.5mm thick steel checker plate as standard;
Trailer suspension and wheel
Standard 40mm solid square axle;
Standard number of mechanical brakes as per above table.
Standard hand braking system
Standard eye-to-eye leaf springs for single axle box trailers.
Wheels: White powder coated steel rims as standard; All tires are DOT certified.
Trailer details and accessories
Safety chains: 8mm diameter hot-dipped galvanized finish, comply with Australian standard, with standard markings
Coupler: Australian standard 50mm ball coupling with Australian standard markings, complies with Australian standard;
Jockey Wheel: swing up type jockey wheel with solid wheel
Trailer electric set-up
LED tail Lights and number plate lights (ADR approved or with E-mark)
7-pin plug: flat or round plugs available for choice
Wire cable: standard 6-core wire cable
Cages
Cage height: 800mm
Material: 70*50*4 crimped steel mesh, 30*30*2mm steel tube
