Home > Computer Products > Network Hardware & Parts > Router > CISCO 1800 Series INTEGRATED SERVICES 1841 ROUTER Cisco1841

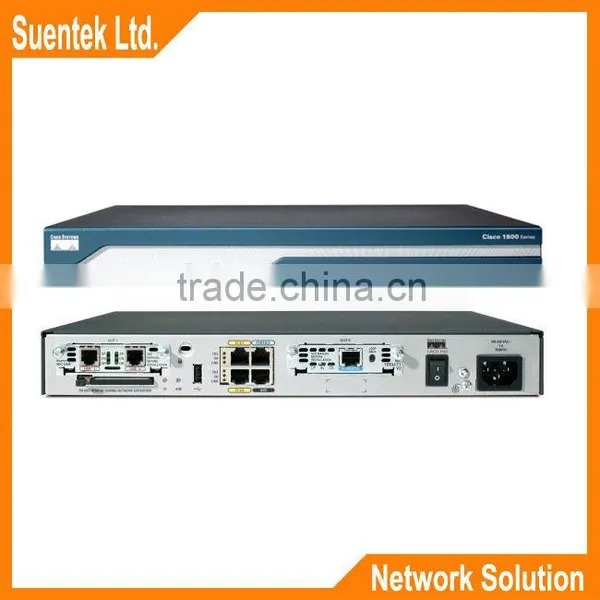

CISCO 1800 Series INTEGRATED SERVICES 1841 ROUTER Cisco1841

CISCO 1800 Series INTEGRATED SERVICES 1841 ROUTER Cisco1841 thumbnail-1
CISCO 1800 Series INTEGRATED SERVICES 1841 ROUTER Cisco1841 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
Guangzhou Suenyuet Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function Firewall, QoS, VPN, Other, Firewall, QoS, VPN, VLAN
Brand Name CISCO
Model Number Cisco1841

Product Overview

Cisco 1800 Series integrated services routers are the next evolution of the award-winning Cisco 1700 Series modular access routers. The Cisco 1841 router is designed for secure data connectivity and provides significant additional value compared to prior generations of Cisco 1700 Series routers by offering more than a fivefold performance increase and integrated hardware-based encryption enabled by an optional Cisco IOS® Software security image. The Cisco 1841 dramatically increase interface card slot performance and density over the Cisco 1700 Series while maintaining support for more than 30 existing WAN interface cards (WICs) and multiflex trunk cards (voice/WICs [VWICs]-for data only on the Cisco 1841 router).
The Cisco 1841 router features secure, fast, and high-quality delivery of multiple, concurrent services for small-to-medium-sized businesses and small enterprise branch offices. The Cisco 1841 router offers embedded hardware-based encryption enabled by an optional Cisco IOS Software security image; further enhancement of VPN performance with an optional VPN acceleration module; an intrusion prevention system (IPS) and firewall functions; interfaces for a wide range of connectivity requirements, including support for optional integrated switch ports; plus sufficient performance and slot density for future network expansion and advanced applications as well as an integrated real-time clock.
Support of high-density WICs (HWICs) is optional.


Applications

Secure Network Connectivity for Data

Security has become a fundamental building block of any network, and Cisco routers play an important role in embedding security at the customer's access edge. The Cisco IOS Software security feature sets for the Cisco 1841 router that enable the hardware-based encryption on the motherboard provide a robust array of features such as Cisco IOS Firewall, IPS support, IP Security (IPSec) VPNs (Digital Encryption Standard [DES], Triple DES [3DES], and Advanced Encryption Standard [AES]), SSL Web VPN, Dynamic Multipoint VPN (DMVPN), Group Encrypted Transport (GET) VPN, and Easy VPN, Network Admissions Control (NAC) for antivirus defense, Secure Shell (SSH) Protocol Version 2.0, and Simple Network Management Protocol (SNMP) in one solution set. In addition, the Cisco 1841 router offers bundled network security solutions with IPSEC and SSL VPN encryption-acceleration modules, making it the industry's most robust and adaptable security solution available for small-to-medium-sized businesses and small enterprise branch offices. As Figure 1 demonstrates, the Cisco 1800 Series routers help enable customers to deliver high-performance, concurrent, mission-critical data applications with integrated, end-to-end security.

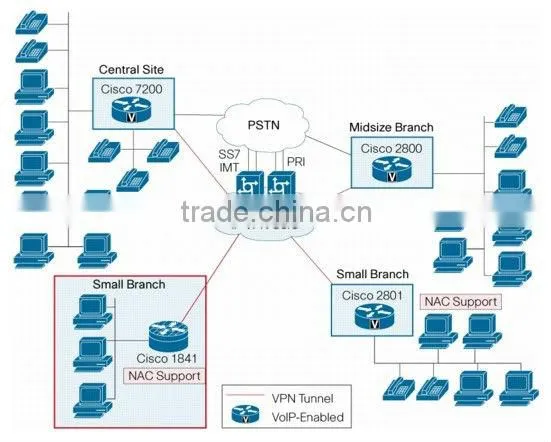

Figure 1. Secure Network Connectivity with Cisco 1841 Router
CISCO 1800 Series INTEGRATED SERVICES 1841 ROUTER Cisco1841


Integrated Services

The new, high-performance and secure integrated services architecture of the Cisco 1841 router (as shown in Figure 1) enables customers to deploy simultaneous services such as secured data communications with traditional IP routing at wire-speed performance. By offering a hardware-based encryption on the motherboard that can be enabled with an optional Cisco IOS Software security image and the flexibility to integrate a wide array of services, modules, and interface cards, the Cisco 1841 router helps enable businesses to incorporate the functions of a standalone secure data solution.

Specification
GENERAL
Device Type Router
Enclosure Type Desktop - modular - 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Network / Transport Protocol IPSec
Remote Management Protocol SNMP, HTTP, SSH-2
Encryption Algorithm DES, Triple DES, SSL, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method Secure Shell v.2 (SSH2)
Features Firewall protection, hardware compression, VPN support, VLAN support, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), wall mountable, Dynamic Multipoint VPN (DMVPN), Network Admissions Control (NAC)
RAM 128 MB (installed) / 384 MB (max) - SDRAM
Flash Memory 32 MB (installed) / 128 MB (max)
EXPANSION / CONNECTIVITY
Interfaces 2 x 10Base-T/100Base-TX - RJ-45
USB : 1 x 4 PIN USB Type A
Management : 1 x console
Management : 1 x auxiliary
Expansion Slot(s) 1 (total) / 0 (free) x CompactFlash Card
Memory
1 (total) / 1 (free) x AIM
2 (total) / 2 (free) x HWIC
Installed Modules Qty (Max) 0 (installed) / 3 (max)
POWER
Power Device Power supply - internal - 50 Watt
Voltage Required AC 120/230 V ( 50/60 Hz )
MISCELLANEOUS
Width 34.3 cm
Depth 27.4 cm
Height 4.4 cm
Weight 2.7 kg
Rack Mounting Kit Optional
Compliant Standards CSA, CTR 21, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CS-03, EN 61000-4-5, UL 60950-1
SOFTWARE / SYSTEM REQUIREMENTS
OS Provided Cisco IOS IP Base
ENVIRONMENTAL PARAMETERS
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 85%
