Heavy Duty Galvanized Utility TrailerStrong and durable
Convenient to use
Different sizes are available
Heavy Duty Galvanized Utility Trailer RC-HDCT-04
1. Specification:
Surface treatment: powder coated or hot-dipped galvanized
Loading capacity: 2500KG
Floor size: 4*1.88m (L*W)
Side bars: 100mm
Size can be also tailor made according to customers’ requirements.

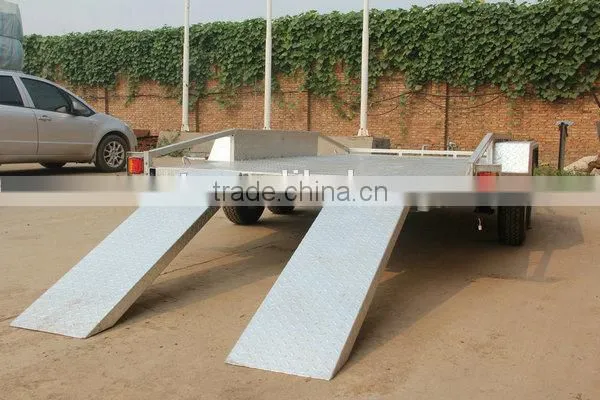

Easy loading & unloading: with 2 checker plated loading ramps (3mm thick), size of each loading ramp: 1300mm long and 400mm wide
2. Material & construction:
Bolted on drawbar, RHS tube: 100*50*3mm
Trailer chassis RHS tube: 70*50*3mm

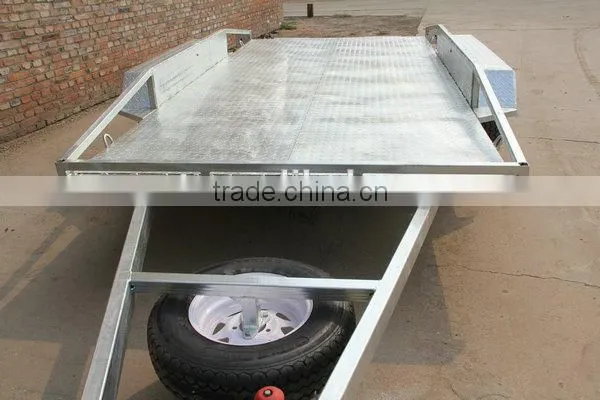

Floor: 2.5mm steel checker plate
Mudguards: 2.5mm steel checker plate
Side steps: 2.5mm steel checker plate
With square bar on the front & sides: 300mm high at its highest point,
Square bar size: 40*40*2.5mm
3. Suspension system:
With 2 painted Axle: 50mm solid square axle, with 1 set of hydraulic brake
Galvanized Leaf spring: 7-leaf eye-to-eye springs
Wheel: 5*15" wheel (powder coated steel rim+ DOT certified tire), tire size: 185R14, with one spare tire in the front, under drawbar
4. Standard trailer parts and accessories:

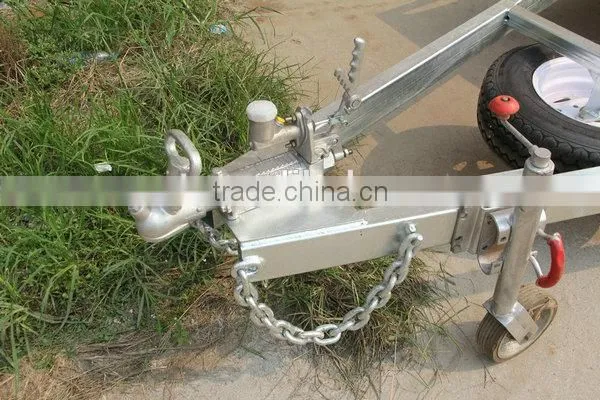

Coupling: Australian standard 50mm ball coupler, or any other type/s of coupling according to locations & requirements of overseas customers
Winch and winch bracket is optional (NO)
Safety chain: 8mm diameter in compliance with Australian standard, or to be made according to requirements of other countries’ standards
Jockey wheel: 8" solid wheel, swing up type
5. Electric Set-up
With LED tail lights (ADR certified or E-marked)
With number plate light (ADR certified or E-marked)
With wirings and 7-pin plug
