ZYJ200 CE ISO HydraulicTake-up device for Belt Conveyor from China Supplier
- 100 Set / Sets per Month
- SHANGHAI/QINGDAO/TIANJING
- T/T L/C Credit Card
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Shandong, China | Brand Name: | LBHI | Model Number: | ZYJ200/16.5D |
Product Description

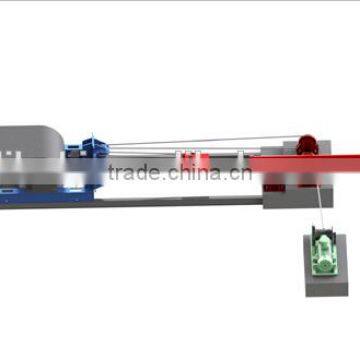

ZYJ series hydraulic automatic take-up device is developed for continuous conveying equipment, such as belt conveyors, ropeway and so on, which integrates mechanical-electrohydraulic system.
One,Technical advantage:
1.According to different working conditions, the tension can be set ,and then the device can keep the system in a state of constant tension;
2.The device is of quick response and good dynamic, which can make up for plastic deformation of belts or steel wires;
3.The device can be connected with integrated control system, which realizes all kinds of automatic controls and hand-operated controls.
4.It is convenient to tension and loosen the belt;
Two, Working conditions
1.The surrounding temperature range is -20~50℃
2).No remarkable and severe swaying, quiver and impact.
Three,Effect on the environment
The device adopts advanced design methods and manufacture process, with good safety and reliability, little noise and no harm to the environment, which is a kind of energy-saving and high-tech products.
Modle Parameter | ZYJ100 | ZYJ160 | ZYJ200 | ZYJ300 | ZYJ400 | ZYJ600 | ||||
Max. tensioning force of tension vehicle(KN) | 100 | 160 | 200 | 300 | 400 | 600 | ||||
Steel rope | Diameter(mm) | 16 | 18 | 18 | 22 | 18 | 22 | |||
| Strength(N/mm2) | 1770 | ||||||||
Rope Capasity of winch (m³) | 0.047 or 0.104 | |||||||||
Move distance of oil cylinder(m) | 1.5,2,2.5,3,3.5,4,4.5,5 | |||||||||
Parameter of hydraulic station | Hydraulic medium | Motor power | Oil cylinder volume | Weight | ||||||
| No.46 wearable hydraulic oil | 5.5kw | 0.7m³ | 720kg | ||||||
Dimension of hydraulic station(mm) | Length X Width X Height =1200X1000X1250 |
We own complete manufacture lines, including the cutting of all parts, rough and elaborate processing, fitting-up and whole-set assembly.
1.Packing:
We all take standard export packing cases made of exemption plates that thickness of the composite plates are about the 9mm to 15mm according with the export requirements.Of course,We also can take the wooden cases made of solid wood with fumigation and supply the Inspection Certificate of Fumigation.
2.Freight:
(1)Shipping:We cooperate with good international ship agency to ensure the interests of the buyer that the buyer can receive the goods in time.We usually accept liner shipping so that we should contact duly and co-operate on the freight peak to solve those problems of transportation.If you have any other requirements,Please tell us and consult with it.
(2)Express and Air transport:We also move goods by express and air transport if you really have emergency demand for these goods .But we can’t take the resulting costs and the scale of the goods must be small.
(3)International multimodal transport:The qualified MTO takes the transportation of the goods to make sure to arrive in terminal on time.We use container transport in general with the exception of special circumstances.
