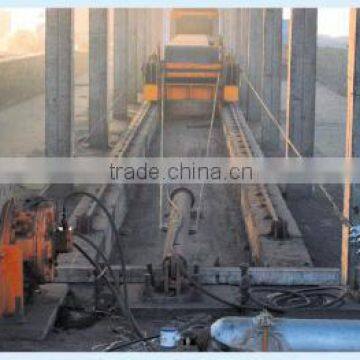

Help CenterHydraulic Tensioner Device for Belt Conveyor
Related Products
-
Hydraulic Tensioner Device With Low VibrationUS$ 6,000 - 6,500MOQ: 1 Set -
ZYJ Hydraulic Take-up Device for Sale With Low Vibration and NoiseUS$ 6,000 - 6,500MOQ: 1 Set
-
ZYJ-500 Hydraulic Take-up Device for Sale With Low Vibration and NoiseUS$ 6,000 - 6,500MOQ: 1 Set
-
Hydraulic Tensioner Device With Low Vibration and NoiseUS$ 6,000 - 6,500MOQ: 1 Set
-
Hydraulic Post Tension Equipment, Hydraulic Wire Tension Device, Hydraulic Auto Tension Controller for Concrete MachineUS$ 6,000 - 6,500MOQ: 1 Set
One,What is a hydraulic tension device?
ZYJ series hydraulic automatic take-up device is developed for continuous conveying equipment, such as belt conveyors, ropeway and so on, which integrates mechanical-electrohydraulic system.
Two,The types of tension devices:
The tension devices mainly contain screw tension device, weight tension device, winch tension device and hydraulic tension device.
Three,Technical advantage:
ZYJ series hydraulic automatic take-up device possess the following feathers:
(1) According to different working conditions, the tension can be set to ensure the optimum of equipment;
(2)The device can keep the system in a state of constant tension after the tension force is set;
(3)The device is of quick response and good dynamic, which can make up for plastic deformation of belts or steel wires;
(4) Oil pump motor can start in an unloaded state, and will be off when the hydro-cylinder reaches the rated tension;the oil pump motor will start automatically to replenish oil when oil pressure is below the specified value. The function of keeping constant oil pressure and replenishing oil can be realized by accumulators when lack of electricity, which ensures the device to energy-saving operate.
(5)The device is of compact structure and installed conveniently;
(6)The device can be connected with integrated control system, which realizes all kinds of automatic controls and hand-operated controls.
Four, Working conditions
(1)The surrounding temperature range is -20~50℃
(2)No remarkable and severe swaying, quiver and impact.
Five,Effect on the environment
The device adopts advanced design methods and manufacture process, with good safety and reliability, little noise and no harm to the environment, which is a kind of energy-saving and high-tech products.
|
Modle Parameter |
ZYJ100 |
ZYJ160 |
ZYJ200 |
ZYJ300 |
ZYJ400 |
ZYJ600 |
||||
Max. tensioning force of tension vehicle(KN) |
100 |
160 |
200 |
300 |
400 |
600 |
||||
Steel rope |
Diameter(mm) |
16 |
18 |
18 |
22 |
18 |
22 |
|||
|
Strength(N/mm2) |
1770 |
||||||||
Rope Capasity of winch (m³) |
0.047 or 0.104 |
|||||||||
Move distance of oil cylinder(m) |
1.5,2,2.5,3,3.5,4,4.5,5 |
|||||||||
Parameter of hydraulic station |
Hydraulic medium |
Motor power |
Oil cylinder volume |
Weight |
||||||
|
No.46 wearable hydraulic oil |
5.5kw |
0.7m³ |
720kg |
||||||
Dimension of hydraulic station(mm) |
Length X Width X Height =1200X1000X1250 |
|||||||||
We own complete manufacture lines, including the cutting of all parts, rough and elaborate processing, fitting-up and whole-set assembly.
