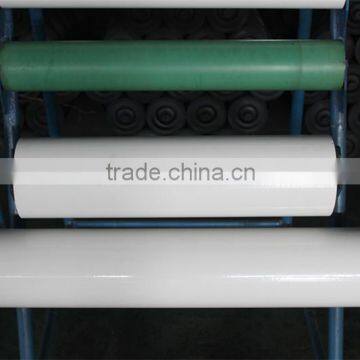

Help CenterDia.76mm PU Roller/Rubber Roller for Conveyor System
Related Products
-
Dia.219mm Belt Conveyor Steel Roller/Roller Idler With Q235 TubeUS$ 8 - 38MOQ: 20 Pieces -
Hot Product Dia.194mm Steel Roller/Roller Idler With CE Certificates for SaleUS$ 8 - 38MOQ: 20 Pieces
-
Dia.159mm Steel Roller/Roller Idler With High Quality Bearing for ConveyorsUS$ 8 - 38MOQ: 20 Pieces
-
Conveyor System Dia.133mm Steel Roller/Roller Idler With Good After ServiceUS$ 8 - 38MOQ: 20 Pieces
-
Belt Conveyor Competitive Price Dia.108mm Steel Roller/Roller IdlerUS$ 8 - 38MOQ: 20 Pieces
ISO Certificate Conveyor Roller/Return Roller/Impact roller for Conveyor System
Product Introduction
As one of National Innovation Fund Project, LIBO conveyor rollers are of complete sealing waterproof and dustproof design, whose bearing assembly employs high-precision bearing chamber and special bearings for idlers, which provide fine appearance, low noise, free maintenance, long service life(exceeding 50,000 hours) and high reliability. We invented controllable braking conveyor rollers, which can solve the problem of controllable brake along the line of large downward belt conveyors.
Advantage:
1. The rubber ring of impact conveyor rollers is made up of flame retardant rubber.
2.Stamping parts are used as bearing housing, which are machined by NC lathe;
3.The bearings are KA serial special bearing for rollers;
4.The material used for bearing shafts is high-strength 45#steel, and NC turning and grinding can ensure precision;
5.The sealing is specially designed with abilities of self-compensation, low resistance, waterproof and dustproof, which can keep bearing in good lubricated condition for a long time.
Basic Parameter of our roller
| Order | Parameter | Description |
| 1 | Brand | LBHI |
| 2 | Lift time | More than 50000 hours |
| 3 | Production capacity | as usual 600000/year. |
| 4 | Roller Diameter | 76-219mm(non-Standard supported) |
| 5 | Roller Length | 190mm to 3500mm |
| 6 | Roller tube | Q235 carbon steel,high-precision ERW,welded with DIN2394 Standard. |
| 7 | Shaft |
45# Cold drawing round steel in accordance withDIN17100 and other equivalent standard, ISO h6 precision |
| 8 | Bearing | Deep groove ball bearing 2RZ and 2Z with C3 clearance |
| 9 | Bearing brand | SKF, NSK,FAG, HRB, LYC, ZWZ etc. |
| 10 | Color | according to your requirement. |
| 11 | Finish | Ordinary painting/hot galvanized painting/rubber/steel screw/galvanized |
| 12 | Welding | Mixed gas shielded arc welding /Automatic CO2 gas shielding welding |
| 13 | Standard | ISO/BS/JIS/DIN//CEMA/Australia |
| 14 | Package | standard export plywood cases or iron cage with protective bubble film |
| 15 | suporting speed | Max speed 7m/s |
| 16 | Inspection | Professional inspection team |

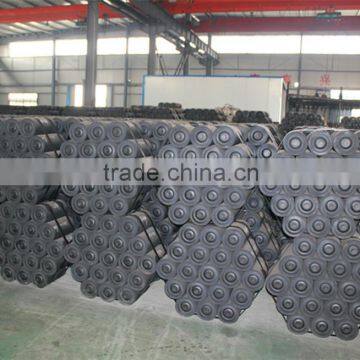

Overview of rollers
Material and Bearing
Seal and structure
Product Equipment
Parameter
We offer the accurate technical and installation parameters that are feasible to our standard product to you so that you can make the best choices for the needs. If you have any special requirement for our product,Please let me know so as to send your needs to our engineer to deal with your problem by technical calculation on time. Above all,Please give us the accurate and comprehensive data about your project because the parameters are different according to multiple circumstances.It must makes you comfortable that we offer the professional high quality products to you.
Packing and Freight
1.Packing:
We all take standard export packing cases made of exemption plates that thickness of the composite plates are about the 9mm to 15mm according with the export requirements.Of course,We also can take the wooden cases made of solid wood with fumigation and supply the Inspection Certificate of Fumigation.
2.Freight:
(1)Shipping:We cooperate with good international ship agency to ensure the interests of the buyer that the buyer can receive the goods in time.We usually accept liner shipping so that we should contact duly and co-operate on the freight peak to solve those problems of transportation.If you have any other requirements,Please tell us and consult with it.
(2)Express and Air transport:We also move goods by express and air transport if you really have emergency demand for these goods .But we can’t take the resulting costs and the scale of the goods must be small.
(3)International multimodal transport:The qualified MTO takes the transportation of the goods to make sure to arrive in terminal on time.We use container transport in general with the exception of special circumstances.
Company introduction
LIBO HEAVY INDUSTRY SCIENCE&TECHNOLOGY CO.,Ltd. is located at the foot of Mount Tai, as the state-level High-Tech Enterprise with integrated system of Production, Study and Research.We are specialized in the development and manufacture of complete sets and key components for bulk material handling, especially belt conveyors and stacker-reclaimer used in round stockyard.With the registered capital of ¥119.6millions, we are one of the largest companies in the bulk materials handling industry, which owns high-level technical equipment and comprehensive strength and offer full service for products
Certificates
LBHI possesses complete quality system certification, including ISO9001 Quality Management System Certificate, ISO14001 Environmental Management System Certificate, OHSAS18001 Occupational Health and Safety Management System and GB/T28001 Occupational Health and Safety Management Certificate. LBHI manufactures and provides products to customers complying with American standards, European standards and international standards and possesses EN-1090-2 structural steel-work certificate, LBHI also possesses more than 250 registered patents.
Partner
LBHI is known all over the world by its high-performance product,higher scientific and environmentally friendly mode of production.These characteristics make LBHI be the quality supplier and reliable business partners to many company in the world.
FAQ:
1.I have some question about the insurance of goods.
Usually CIF to be effected by the sellers at 110% of invoice value covering Free from Particular Average(F.P.A.) as per China Insurance Clauses(C.I.C) dated 1/1/1981.OF course,if you need other service we also can cover with particular average(w.p.a.) or All Risks with War Risks.
2.How should I pay to my orders?
We support these payments as following:
1.30%T/T deposit +70% sight, confirmed and irrevocable L/C
2.100% sight, confirmed and irrevocable L/C
3.30%T/T +70% after seeing Ocean copy or fax of Bill of Lading
4.Other trusted platform for third-party to pay
5.Other circumstances
3.Can I take the goods by express or airlift if the need is urgent?
We can move goods by express and air transport if you really have emergency demand for these goods .But we can’t take the resulting costs and the scale of the goods must be small.
4.Can I know more Information about the packing and Freight of the product?
Of course you can,you can get the detailed the information in our “Packing and Freight” module of Product Details.You also can contact with us by phone, fax and e-mail.
