Product Details
| Place of Origin: | China | Brand Name: | Coopsecurity | Model Number: | LC-10MIHD-SDI Dome Camera |
| Type: | Analog Camera | Style: | Dome Camera | Sensor: | CMOS |
| Technology: | Pan / Tilt / Zoom | Special Features: | Waterproof / Weatherproof |
Product Description

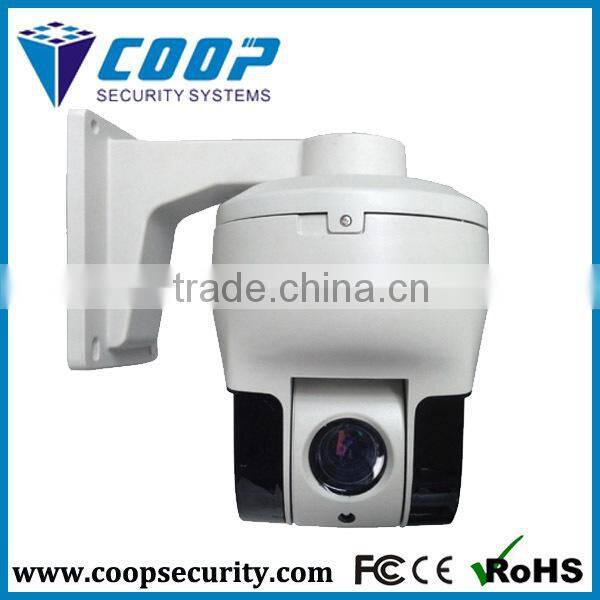

HD-SDI High Mini Speed Dome 1080P Metal Housing PTZ 10X Zoom Dome CCTV Camera
Product Description
| Specification | LC-10MIHD-SDI | |
| Camera spec | ||
| Zoom lens | Optical 10X | |
| Image Element | 1/2.8 type CMOS Image sensor | |
| Effective Pixel | 2200(H) X 1125(V) | |
| Video output | 1080P60/50,1080P30/25,1080I/60(30FPS),1080I/50(25FPS),720P60/50 | |
| Lens | 3.0 mm(Wide)~9.0mm(Tele) | 5.1mm(Wide)~51mm(Tele) |
| Angle of View | 90°(Wide)~32°(Tele) | Horizontal:56.7°(Wide)~4.65°(Tele) |
| Vertical: 32.5°(Wide)~3.8°(Tele) | ||
| Mini illumination | Color:1.0 Lux B/W :0.05Lux | |
| Sync system | Internal | |
| Shutter Speed | 1/60~1/10000S | |
| Color Gain | 60%-200% | |
| White Balance | Auto/ Manual | |
| S/N ratio | ≥50db | |
| Backlight Compression | YES | |
| Auto ICR | YES | |

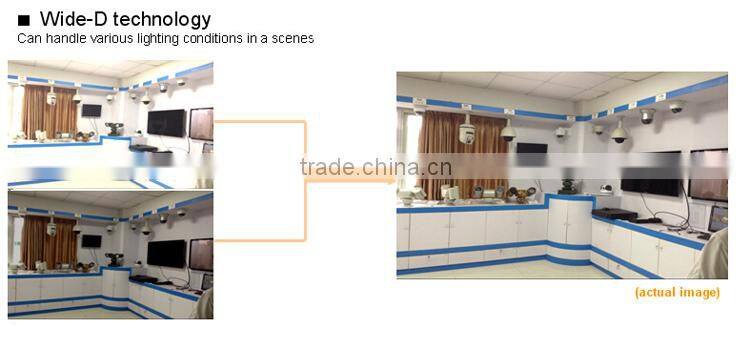

| WDR | Yes | |
| Mechanical spec | ||
| Power supply | AC 24V/DC12V | |
| Power consumption | 24W | |
| IR light control | Manual/Auto( auto adjust according to zoom time and speed) | |
| Manual speed | Pan 0.4°~240°Tilt 0.4°~120° | |
| Preset speed | Pan 240°/s,Tilt 120°/s | |
| Rotation | Pan 360°continuously, Tilt 0-90° with auto-flip | |
| Speed proportion | Auto-adjust speed per the focus length | |
| Preset | 128 presets, titles can be set | |
| Auto-flip | Tilt down 90°, with auto-flip 180° | |
| Scan | 355° programmable, 4 scan | |
| Display zone | 8 programmable zones with titles | |
| Alarm Function | 4 alarm input/ 1 alarm output | |
| Sync | Internal/ External | |
| Decoder | Built-in | |
| Interface | Female BNC | |
| Remote controlling | RS485 | |
| Baud rate(RS485) | 2400/ 4800/ 9600/ 19200bps | |
| ID range | 1-254 | |
| Environment temperature | (-30~50)℃ | |
| Environment humidity | 0-95%(Non-condensation) | |
| Protection grade | IP66, built-in 4000V lightning-proof, surge-proof, | |
| Housing | wave-proof, all-day defend cover | |
| Gross weight | 3.5KGS(without bracket) | |

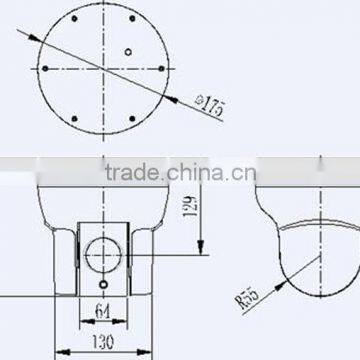

| Dimension | 184mm*Φ178 | |
