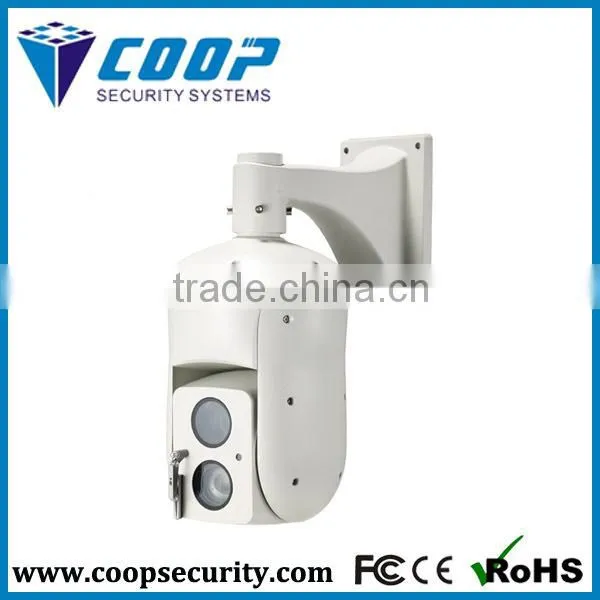

2 MP 30X 1080P Outdoor Network Laser High Speed Dome PTZ Camera SONY FCB-EH6500 IP High Speed Dome Camera

Model

LC-36MSHD-IP

Camera

Image Sensor

1/3-type “Exmor” CMOS

Effective Pixels

Approx. 2 Mega pixels

Minimum working distance

10 mm (wide) to 800 mm (tele)

Minimum Illumination

High sensitivity mode: 0.5 lx (F1.6, 50 IRE, ICR Off), 0.095 lx (F1.6, 50 IRE, ICR On) Normal mode:

Video S/N Ratio

More than 50 dB (AGC: OFF)

Signal system

HD

1080p/29.97, 1080p/25, 1080i/59.94 (Frame out: 29.97 PsF), 1080i/50 (Frame out: 25PsF), 720p/59.94, 720p/50, 720p/29.97, 720p/25

SD

NTSC, PAL

Video Output

HD

Analog: Component (Y/Pb/Pr) Digital: Y/Cb/Cr 4:2:2 via LVDS (Y: 8 bit, C: 8 bit)

SD

VBS: 1.0 Vp-p (sync negative)

Camera control interface

VISCA (TTL signal level) Baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s

Stop bit: 1/2 bit selectable

Electronic Shutter

1/1 to 1/10,000 s, Total 22 steps

White balance

Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual

Gain

Auto/Manual (-3 to +28 dB, +2 dB step/Total 16 steps)

AE control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE

Slow AE

Approx. 5 minutes

Focusing system

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF

Synchronization

Internal

Lens

Focal Length

f=4.6mm (wide) to 138.0 mm (tele)

Zoom Ratio

30x Optical Zoom, 12x Ditgital Zoom

View Angle

1080p/30 mode: 55.4° (wide end) to 2.9° (tele end) 720p/60, 30 mode: 37.6° (wide end) to 1.95° (tele end)

Pan and Tilt

Manual Speed

Pan(0.4°~180°/S) Tilt(0.4°~80°/S)

Rotation

Pan 360°Continuously Tilt0-105° Auto Flip

Focus Speed

Speed adjustable base on focus distane

Preset

128

Function

PRESET/TOUR/SCAN/PATTERN

Display Zone

8 editable title zone

Alarm function

7CH Alarm in, 2CH alarm out

 Video Out

 1.0Vp-p,75Ω,BNC Connector

Communicate

RS485 Bus

Protocol

PELCO-D,PELCO-P,KALATEL,VCL,MOLYNX,VICONEtc

Baud Rate

2400/4800/9600/19200 bps

Camera ID

1~254

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240)

Frame Rate

Main Stream

1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Audio

compression

G.711a / G.711Mu(32kbps)/ PCM(128kbps)

Interface

1/1 channel In/Out

Network

thernet

RJ-45 (10/100Base-T)

Protocol

PPPOE, RTSP, VLC, NTP, UPNP

Compatibility

ONVIF

Smart Phone

iPhone, iPad, Android, Windows Phone

Infrared

IR Distance

250-300M

IR Instnsity

Automatically adjusted,depending on the zoom ratio

Alarm

Alarm Input

7 Alarm input

Alarm Output

2 Alarm Output

General

Menu Language

English,Chinese

Working Temperature

-40℃~+60℃

Working Humidity

0~95%(None condensation)

Protection

IP66,4000W lighting proof, wave proof, surge-proof

 Power

AC 24V±4V

 Consumption

 (PTZ+IR)33W    (PTZ+IR+Heating)53W

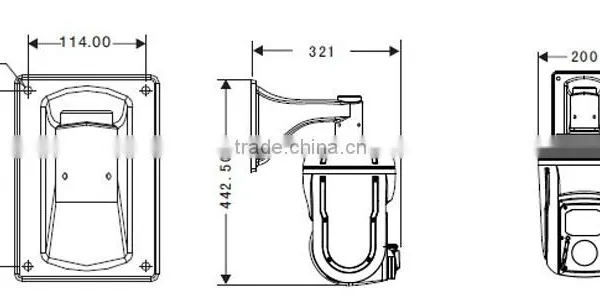

 Measure

 L520×W320×H300mm

 Weight

 9.68KG
