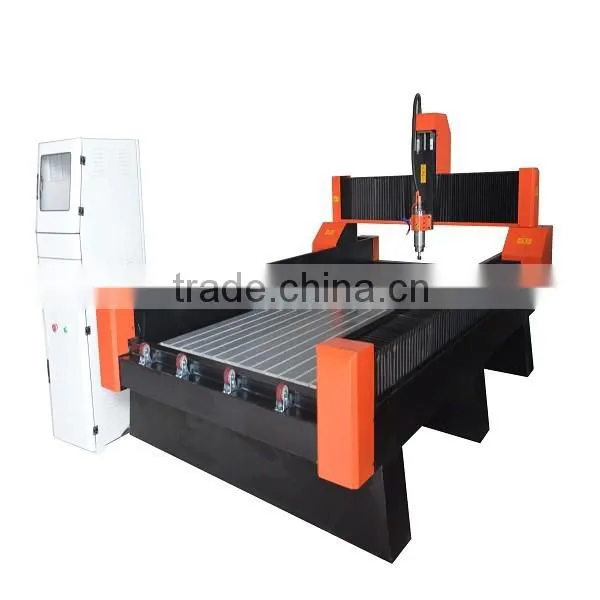

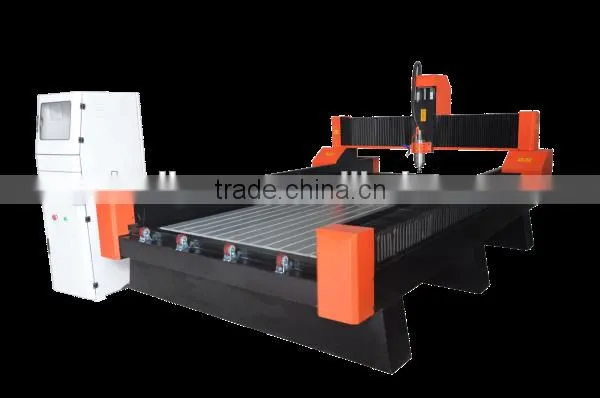

Jinan missile stone marble cnc engraving cutting machine for pebble
FEATURES:
Jinan missile stone marble cnc engraving cutting machine for pebble

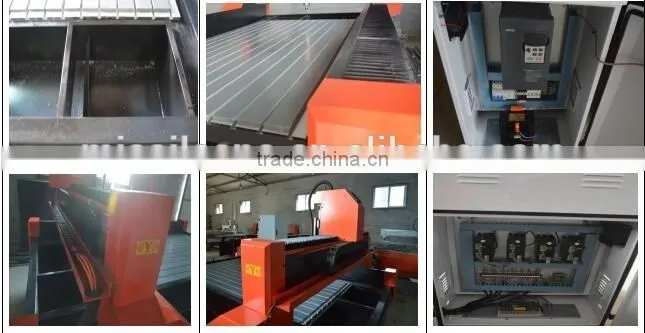

1.Structure:Thick square pipe welded structures, which strengthen hole lathe bed stability.
2.Transmission: X and Y Axis helical rack. Y Axis two sides driving, fast speed, powerful.
3.Drive ststem: Leadshine stepper drive with high-speed stepper motors.
4.Control system: Nc-studio system.
5.OptionalL: Air-cooling or water-cooling spindle, DSP handling control ststem, Servo motor, customized model.
| X,Y,Z Working Area | 1300x2500x250mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | AluminumT-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Rack and Pinion gear |
| Z axis transmission | Ball Screw |
| Max. Traveling speed | 25000mm/min |
| Max. Working speed | 15000mm/min |
| Rail Configuration | 20 square rail |
| Spindle Power |
Water-cooling 5.5kw (Opitioinal 3.0 ,4.5 ,7.5kw) spindle |
| Spindle rotationg Speed | 0-24000RPM |
| Drive Motors | Stepper System (Opitional: Servo motors) |
| Working Voltage | AC380V ,50Hz ,3PH |
| Operating System | Ncstudio system(Option: DSP) |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | Type3,Wentai,Artcut |

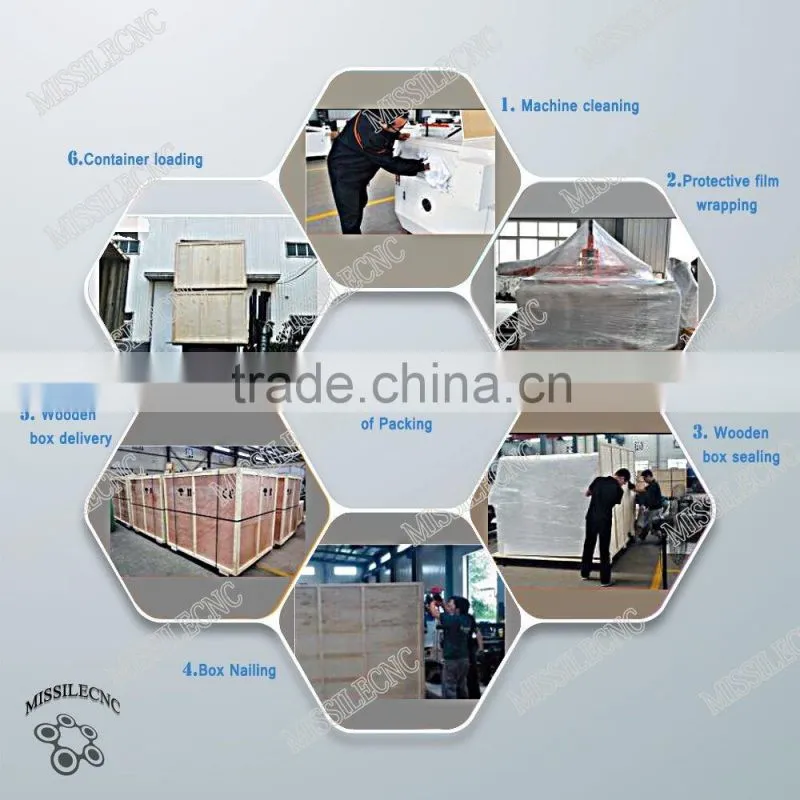

| Packing | Wooden case |
| N.W. | 1600KG |

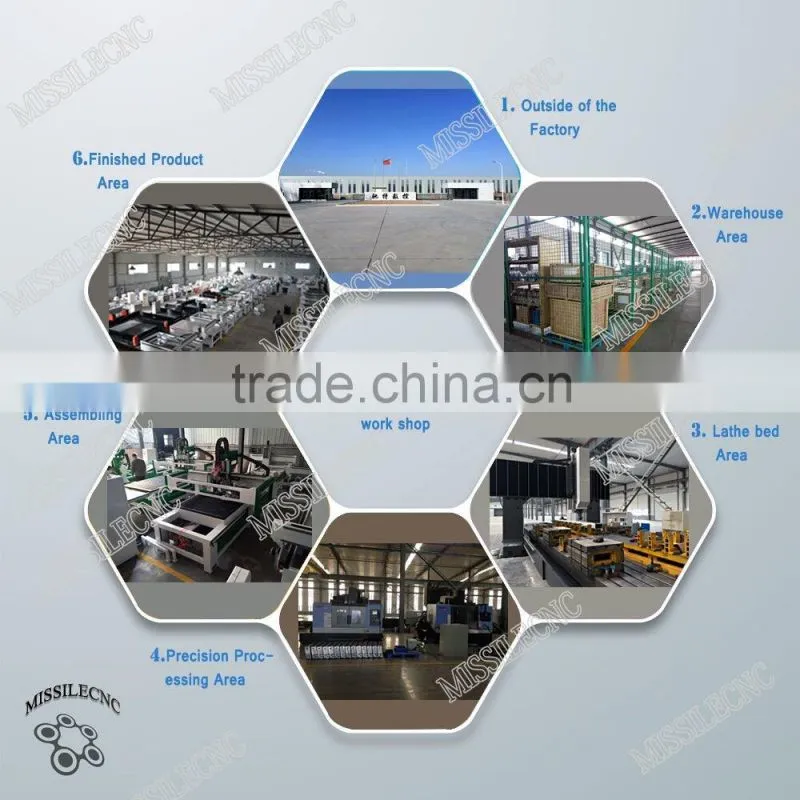

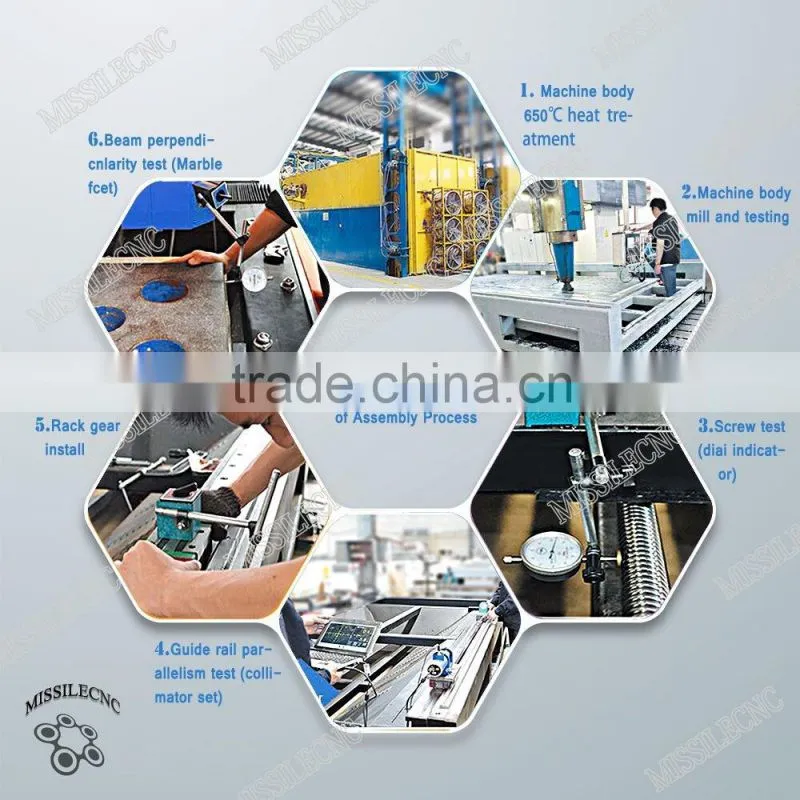

Factory & Office
APPLICABL FIELD:
Jinan missile stone marble cnc engraving cutting machine for pebble

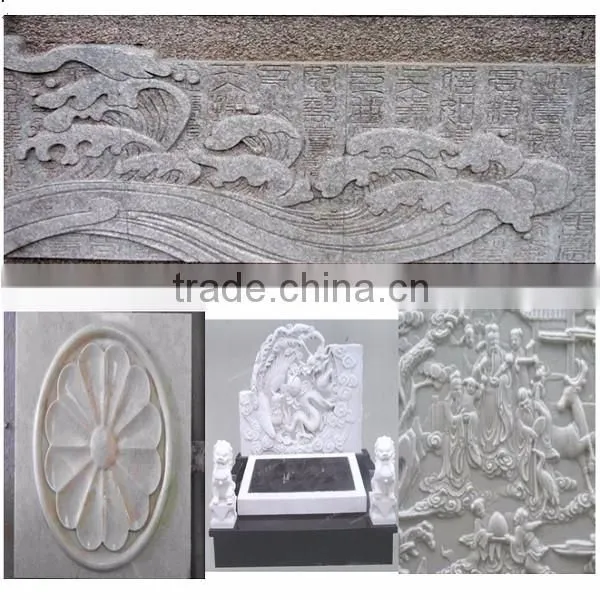

Wall painting, marble, granite,tombstone ceramic tile etc. These stone letter and patten engraving and relief engraving. Also used for copper, aluminum cuttinng.
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
