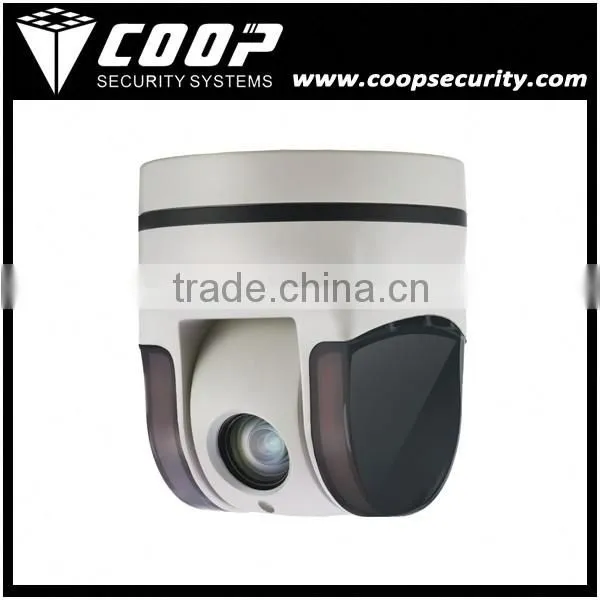

HD 1080P RS485 PTZ Spped Dome Camera 10X Zoom 1080P High Speed HD-SDI IR Mini Dome Camera
Specifications
High Speed HD-SDI IR Mini Dome Camera1.Clear IR LED more than 60M
2.IRC
3.IR LED Consumption 12W
4.1/2.8 type CMOS Sensor
HD 1080P RS485 PTZ Spped Dome Camera 10X Zoom 1080P High Speed HD-SDI IR Mini Dome Camera LC-03MIHD-SDI/LC-10MIHD-SDI
High Speed HD-SDI IR Mini Dome Camera Features and Benefits:

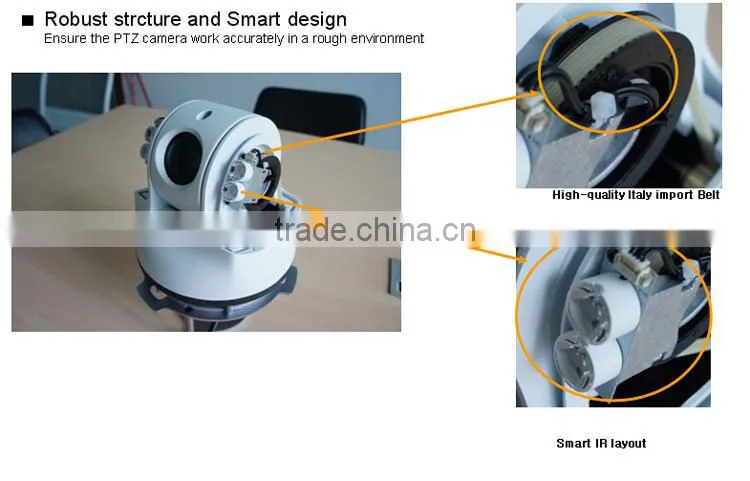

- Humanized design, novel structure, easy for installation and maintenance.
- 1080p,1080i,720P optional,None-compressed image transmission. Trasnmission distance over 100M.
- Clear Night-vision distance of IR LED light more than 60M,
- IR LED Consumption 12W,angle 6°- 48°
- Pan 360°continuously,Non-Limited Position, Tilt 105°(-15°~90°),Non Blind spot
- 128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.
- 8 programmable zones, 4 patterns, and each record time is not less than 180s. 4 scan, support scan between left and right limit at an appointed speed(Manually Zoom & Tilt are available while Dome auto scanning)
- Built-in OSD menu, can change information and parameter of dome through menu, also can set and Call presets, tour, scan, pattern, camera mode and display name etc.
- Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.
- 4 alarm input,1 alarm output, support linkage. (To call preset pattern, scan, tour, display areas etc)
- Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.
- Fan enable function, through pre-setting the temperature to start-up the fan.
- Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
- Real-time pan/tilt co-ordinate value and zoom value display
- Privacy masking zone, you can set masking frame to protect privacy when there is a private zone display on screen.(Depends on the camera module)
- Built-in multi-protocols and fully compatible with PELCO-D,PELCO-P,KALATEL, VICON, BOSCH(PHILIPS), SENSORNT, AD, VIDO B02 etc.
- Communication:RS485,Manchester,BI-PHASE,Coaxitron
- IP56 all-weather defend cover, built-in constant temperature device
- Built-in TVS4000V lightning-proof, surge-proof and wave-proof
High Speed HD-SDI IR Mini Dome Camera Specification:
| LC-03MIHD-SDI | LC-10MIHD-SDI | |
| Camera spec | ||
| Zoom lens | Optical 3X | Optical 10X |
| Image Element | 1/2.8 type CMOS Image sensor | |
| Effective Pixel | 2200(H) X 1125(V) | |
| Video output | 1080P60/50,1080P30/25,1080I/60(30FPS),1080I/50(25FPS),720P60/50 | |
| Lens | 3.0 mm(Wide)~9.0mm(Tele) | 5.1mm(Wide)~51mm(Tele) |
| Angle of View | 90°(Wide)~32°(Tele) | Horizontal:56.7°(Wide)~4.65°(Tele) |
| Vertical: 32.5°(Wide)~3.8°(Tele) | ||
| Mini illumination | Color:1.0 Lux B/W :0.05Lux | |
| Sync system | Internal | |
| Shutter Speed | 1/60~1/10000S | |
| Color Gain | 60%-200% | |
| White Balance | Auto/ Manual | |
| S/N ratio | ≥50db | |
| Backlight Compression | YES | |
| Auto ICR | YES | |

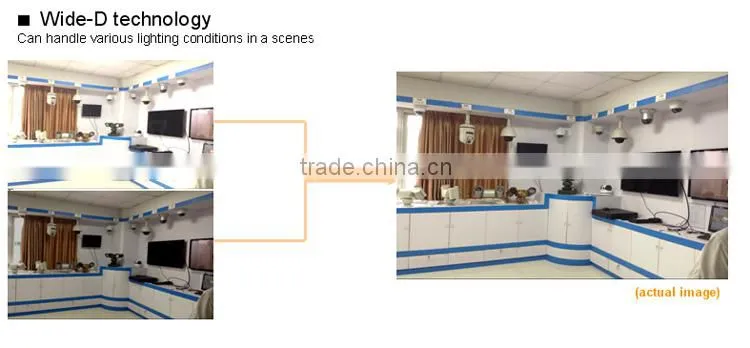

| WDR | Yes | |
| Mechanical spec | ||
| Power supply | AC 24V/DC12V | |
| Power consumption | 24W | |
| IR light control | Manual/Auto( auto adjust according to zoom time and speed) | |
| Manual speed | Pan 0.4°~240°Tilt 0.4°~120° | |
| Preset speed | Pan 240°/s,Tilt 120°/s | |
| Rotation | Pan 360°continuously, Tilt 0-90° with auto-flip | |
| Speed proportion | Auto-adjust speed per the focus length | |
| Preset | 128 presets, titles can be set | |
| Auto-flip | Tilt down 90°, with auto-flip 180° | |
| Scan | 355° programmable, 4 scan | |
| Display zone | 8 programmable zones with titles | |
| Alarm Function | 4 alarm input/ 1 alarm output | |
| Sync | Internal/ External | |
| Decoder | Built-in | |
| Interface | Female BNC | |
| Remote controlling | RS485 | |
| Baud rate(RS485) | 2400/ 4800/ 9600/ 19200bps | |
| ID range | 1-254 | |
| Environment temperature | (-30~50)℃ | |
| Environment humidity | 0-95%(Non-condensation) | |
| Protection grade | IP66, built-in 4000V lightning-proof, surge-proof, | |
| Housing | wave-proof, all-day defend cover | |
| Gross weight | 3.5KGS(without bracket) | |
| Dimension | 184mm*Φ178 | |

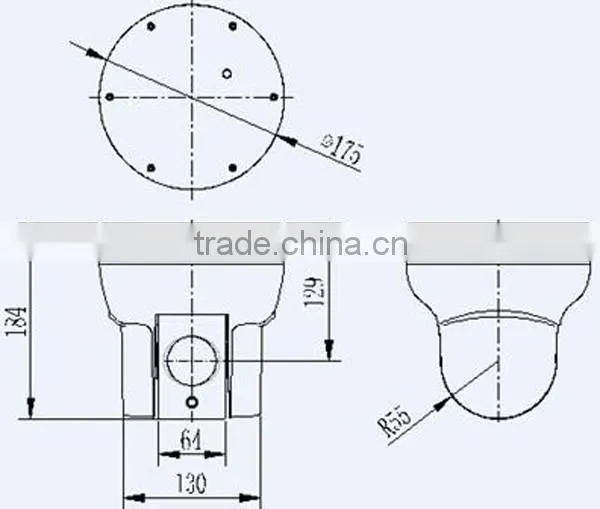

High Speed HD-SDI IR Mini Dome Camera Dimension:

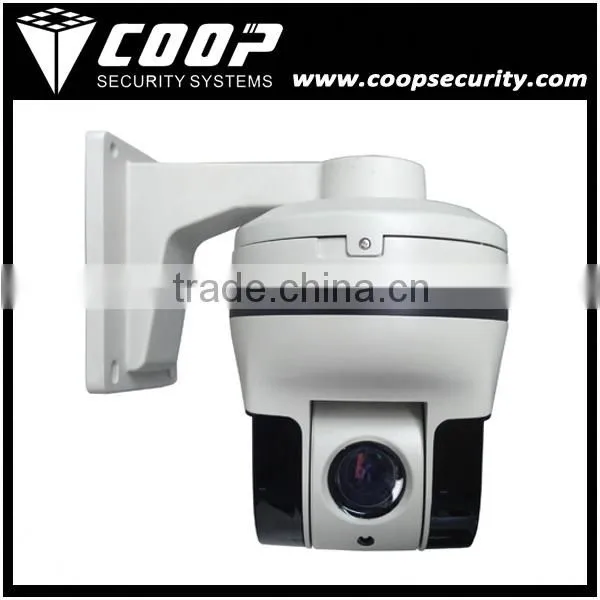

High Speed HD-SDI IR Mini Dome Camera Bracket:
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Electronic Show:
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS

Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
