Image Stabilization HD 1080P HD-SDI PTZ Camra High Speed Dome Sony CMOS PTZ Camera
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Coop
Model Number:
CC-36MSHD-SDI High Speed Dome Sony CMOS PTZ Camera
Payment & Shipping
Payment Methods:
Port of Shipment:
Quanzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Network PTZ Onvif Sony CMOS IP High Speed Dome Camera 20X Zoom HD 1080P IP PTZ CameraNegotiableMOQ: 1 Piece -
Sony CMOS 30X Zoom 2MP PTZ Camra IR Network HD 1080P High Speed Dome Camera IP PTZNegotiableMOQ: 1 Piece
-
Full HD 1080P Laser Camera 36X Zoom Sony CCD 530TVL High Speed Dome PTZ Laser CameraNegotiableMOQ: 1 Piece
-
20X Zoom HD 1080P HD-SDI PTZ Laser Camera Sony CMOS High Speed Dome CameraNegotiableMOQ: 1 Piece
-
Image Stabilization HD SDI PTZ Camera Full HD 1080P High Speed Dome Sony CMOS Laser PTZ CameraNegotiableMOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
Coop
Model Number
CC-36MSHD-SDI High Speed Dome Sony CMOS PTZ Camera
Type
Analog Camera
Style
Dome Camera
Sensor
CMOS
Technology
Infrared
Special Features
Waterproof / Weatherproof
Specifications
High Speed Dome Sony CMOS PTZ Camera1.FCB-EH6500 Zoom
2.20X Optical Zoom
3.1920*1080P
4.Image Stabilization
Image Stabilization HD 1080P HD-SDI PTZ Camra High Speed Dome Sony CMOS PTZ Camera CC-36MSHD-SDI
Product Description
High Speed Dome Sony CMOS PTZ Camera Features:
- Humanistic design, fashion Structure, Easy for Installation and Maintenance
- Clear Night-vision distance of IR LED light 120M
- Pan:360°, Non-Limited Position, Pitching 105°(-90°~15°), Non Blind spots
- Humanize focus and speed proportion.
- 128 Presets (Titles can be set), according to Preset run Tour, also can setting the preset speed and stay time
- 8 programmable zones with titles, 4 PATTERN ), Each records time is not less then 180s
- 4 Scan, support scan between left and right limit at an appointed speed.
- Built-in OSD Menu,can change information and parameter of dome through menu, also can set and call presets, tour, scan, pattern, camera mode and display name etc.
- Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
- 7 alarm input, 2 alarm output, support linkage. (To call preset pattern, scan, tour, display areas etc)
- Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.
- Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.
- Temperature display function, can survey the temperature inside of dome.
- Fan enable function, through pre-setting the temperature to start-up the fan.
- Display function of Pan/tilt position and zoom, provide a port for motion-tracking and data processing
- Privacy masking Function
- Communication: RS485, Manchester, BI-PHASE, Coxial Video Control
- Support Built-in Protocol, Completely compatible PELCO-D, PELCO-P, KALATEL, AD, PHILIPS, MOLYNX and So on
- IP66 All-day protection cover, Built-in constant temperature device.
- Built-in TV4000V Light-proof, Surge-Proof, Wave-Proof
High Speed Dome Sony CMOS PTZ Camera Pictures:
High Speed Dome Sony CMOS PTZ Camera Specification:
| Model No. | CC-36MSHD-SDI | |
| Camera | ||
| Zoom Type | FCB-EH6500 | |
| Image Sensor | 1/2.8-TYPE Exmor CMOS | |
| TVL | 1920*1080P | |
| Mini Workin Distance | 10mm(wide end ) to 1.200mm (tele end) (Default: 300mm) | |
| Mini Lux | High Sensitivty Mode | 0.5 Lux(F1.6 ICR OFF) 0.095Lux(F1.6 ICR ON) |
| Normal Mode | 1.7 Lux(F1.6 ICR OFF) 0.3Lux(F1.6 ICR ON) | |
| IR Light Angle | 6o—48° | |
| Video S/N Ratio | More than 50 dB (AGC: OFF) | |
| Auto Flip | Tilt down 90°, with auto-flip 180° | |
| Scan | 355° (Optional Setting ),4 Scans | |
| Decoder | Built-in | |
| Video Output Interface | Female BNC | |
| Remove Control | RS485/422 ,Manchester,BI-PHASE,Coaxial Video Control | |
| Baud Rate(RS485) | 2400/4800/9600/19200 bps | |
| ID Range | 1~254 | |
| Signal system | HD | 1080p/30,1080p/29.97, 1080p/25, 1080i/60(30PsF)/1080i/59.94 (29.97 PsF), 1080i/50 (25PsF), 720p/30, 720p/59.94, 720p/50, 720p/30,720p/29.97, 720p/25 |
| SD | NTSC, PAL | |
| Video Output | HD | Analog: Component (Y/Pb/Pr) Digital: Y/Cb/Cr 4:2:2 via LVDS (Y: 8 bit, C: 8 bit) |
| SD | VBS: 1.0 Vp-p (sync negative) | |
| Camera control interface | VISCA (TTL signal level) Baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s | |
| Stop bit: 1/2 bit selectable | ||
| Electronic Shutter | 1/1 to 1/10,000 s, Total 22 steps | |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual | |
| Gain | Auto/Manual (-3 to +28 dB, +2 dB step/Total 16 steps) | |
| AE control | Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE | |
| Slow AE | Approx. 5 minutes | |
| Focusing system | Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF | |
| Synchronization | Internal | |
| Lens | ||
| Lens | f=4.6~138.0mm | |
| f=4.6mm (wide) | ||
| 135.0mm(tele) F1.6 to F4.7 | ||
| Zoom Ratio | 30x Optical Zoom, 12x Ditgital Zoom | |
| View Angle | 1080p/30 mode: 59.5° (wide end) to 2.1° (tele end) 720p/60, 30 mode: 40.6° (wide end) to 1.4° (tele end) | |
| Pan and Tilt | ||
| Manual Speed | Pan (0.4°~180°/S) Tilt(0.4°~80°/S) | |
| Rotation | Pan 360°Continuously Tilt0-105° Auto Flip | |
| Focus Speed | Speed adjustable base on focus distane | |
| Preset | 128 | |
| Function | PRESET/TOUR/SCAN/PATTERN | |
| Display Zone | 8 editable title zone | |
| Alarm function | 7CH Alarm in, 2CH alarm out | |
| Video Out | 1.0Vp-p,75Ω,BNC Connector | |
| Communicate | RS485 Bus | |
| Protocol | PELCO-D,PELCO-P,KALATEL,VCL,MOLYNX,VICON etc | |
| Baud Rate | 2400/4800/9600/19200 bps | |
| Camera ID | 1~254 | |
| Infrared | ||
| IR Distance | 120M | |
| IR Instnsity | Automatically adjusted,depending on the zoom ratio | |
| Alarm | ||
| Alarm Input | 7 Alarm input | |
| Alarm Output | 2 Alarm Output | |
| General | ||
| Menu Language | English,Chinese | |
| Environment Temperature | -40℃~+60℃ | |
| Environment Humidity | 0~95% (Non-Condensation) | |
| Protection Grade | IP66, TV4000V Light-proof, Surge-Proof, Wave-Proof | |
| Power | AC 24V±4V | |
| Comsuption | (PTZ+IR) 33W (PTZ+IR+Heating) 53W | |
| Dimension(HxD) | Φ200*353mm L520×W320×H300mm | |
| Weight | 9.68KG | |

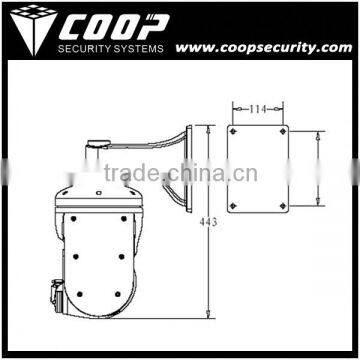

High Speed Dome Sony CMOS PTZ Camera Auxiliary Bracket:
High Speed Dome Sony CMOS PTZ Camera Other Light Sources:
Laser PTZ Dome Camera White LED PTZ dome Camera
Night Vision:250M-300M Night Vision:100-120M
