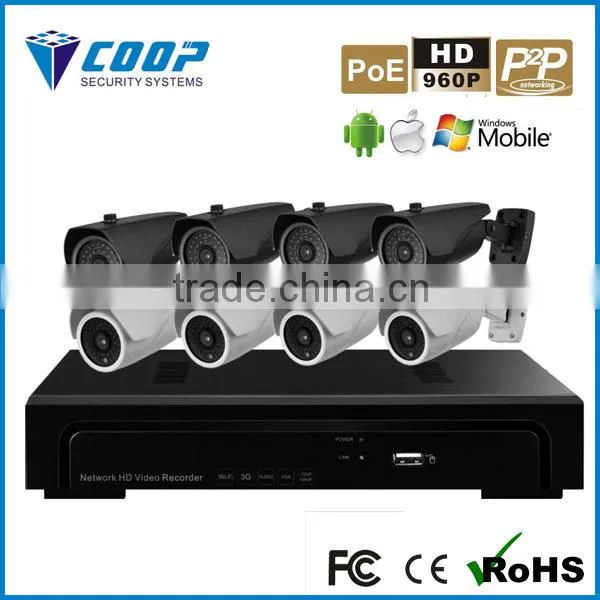

1.3MP 960P 8CH IP67 Waterproof IR IP Bullet camera system
Model NO.:HD-960P-8POE
Feature:
. NVR Built-in POE Switch,IPC no need Power supply.
. Video Output:1CH VGA + 1CH HDMI Out
. 8CH Network Audio input,1CH RCA output
. Preview & Recording:8CH 720P/D1
. Recording frame rate:30fps/channel
. SATA Port:1x4TB SATA HDD,DC48V 2.5A
. With 3x USB2.0 Port,VGA Output,HDMI Out
. Support Onvif,Third-party IP Camera supported,3G,WiFi
. Support 15x digital zoom in preview/playback channel
. Backup way: U disk, USB, USB DVD-RW, Network storage and backup
Technique Specification:

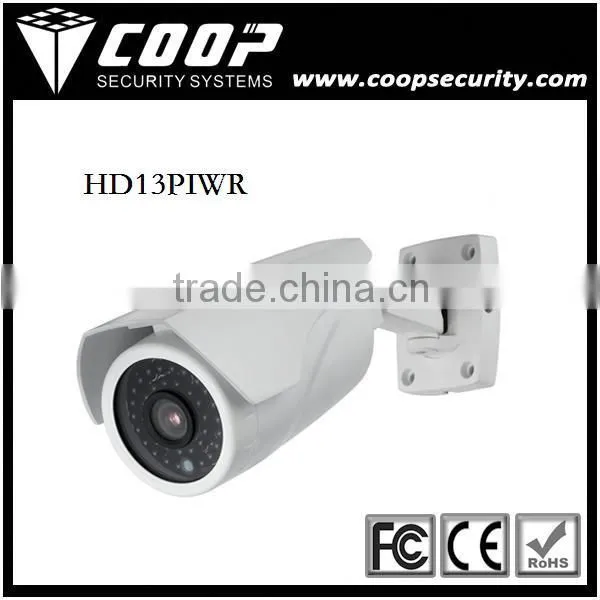

POE Camera:
F |
1.3MP 960P IR Bullet camera |
|
General |
Feature |
Low Illumination |
CMOS Type |
Aptina 0130+ Hisilicon 3518C |
|
CMOS Model |
1/3″1.3 Mega Pixel |
|
Illumination |
Color: 0.1Lux/BW:0.01Lux(F1.2,AGC ON) |
|
IR Distance |
30m(36pcs BLACK IR LED) |
|
Shutter Speed |
1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable |
|
Lens |
3.6/6/8mm Fixed Lens |
|
Exposure Control |
DSP Auto Adjust |
|
AGC & W/B |
Auto |
|
S/N Ratio |
≥50dB |
|
Network Function |
Protocol |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,P2P |
Support Agreement |
Support ONVIF 2.2 |
|
Video Storage |
FTP Storage,Local storage,Support ONVIF NVR Storage,optional:SD Card&TF Card(Max 32GB) |
|
Smart Alarm |
Motion detect Video Shelter, I/O Alarm for Video Lost |
|
Extended Function |
POE power supply,the temperature control switch, I/O alarm, electric lens |
|
General Function |
Anti flicker, dual stream,, mirror, password protection, video hiding, watermarking technology |
|
Upgrade maintenance |
Support Remote Upgrade, With Password Protect. |
|
Wireless(Optional) |
Adapting WIFI or 3G,Adapting P2P Intelligence Mobile Phone Visit |
|
Special Features |
3 |
With portable & fast 3Construction for Adjust. |
Appearance quality |
Metal Case |
|
Waterproof |
Strong waterproof stopper for IP67 |
|
Smart IR |
Intelligence Prevent IR light Over Exposure |
|
Video Efficiency |
Compression |
H.264 |
Video Frame Rate |
1280x960P |
|
Effective Pixel |
50Hz:25fps (1280*960) 60Hz: 30fps (1280*960) |
|
Bit Rate |
32 Kbps~8Mbps |
|
Image Setting |
Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
Audio |
Audio Encoding |
With G.726/G.722/G.711 standard code,64Kbps transfer Speed |
Audio Function |
Audio Broadcast,Audio talkback |
|
Mount |
Power Mount |
DC female connector,5.5×2.1mm |
Network Mount |
1ch 10M/100M ether net mouth, RJ45 Mount |
|
Video Output |
1ch local analog output, BNC interface. |
|
Alarm Mount |
1ch alarm input,1ch alarm output |
|
Audio Mount |
1ch audio input,1ch audio output |
|
RS485 Mount |
1ch RS485 Mount |
|
Others |
Work Temperature |
Circle temperature:-10℃~+60℃ Body temperature:25℃~35℃ Work humidity:<90% (no condensation) |
Power Consumption |
DC 12V±5% ,IR ON: 8W |

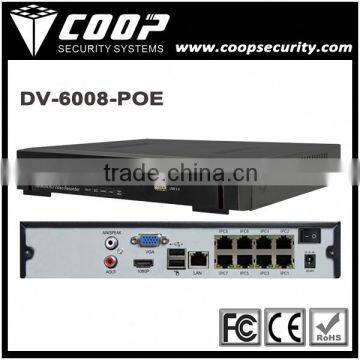

POE NVR:
Feature |
8CH POE NVR | |
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) |
|
Recording Playback Quality |
4ch playback in 4ch 720 mode; 1ch 1080P playback in 4ch 960P/1080P model |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
Operation Way |
Mouse |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |
8×(1280*960)+sub[640*480]+4Ref.+1Play 8ch 1.3MP IP Camera |
8×(1280*960)+sub[720*576]+2Ref.+1Play 8ch 1.3MP IP Camera | ||
Audio Input |
8ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA Output |
|
Network Port |
9 RJ45, 100M LAN port, data transferring and power supply both by network cable |
|
USB Port |
3 USB 2.0 ports |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
1 SATA HDD Port |
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
DC48V 2.5A |
|
Power Consumption |
≤115W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
