3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output

3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output thumbnail-1
3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output photo-1
US$ 110 - 200 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
coopsecurity
Model Number:
DV9016 2U3MP 9HHD NVR 16ch
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name coopsecurity
Model Number DV9016 2U3MP 9HHD NVR 16ch

Specifications

IP Camera Recorder 16CH NVR
support third IP Camera
cheap price
reliable performance



3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output



Product Description





 3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output







Parameter



Model Number

 DV9016

 Operating System

 Embedded LINUX operating system

 Image Code Control

 Image code quality adjustable, variable bitstream and constant bitstream optional

 Dual Stream

 Each channel can set main stream and sub stream

 Video Standard

 1080P(1920×1080)30fps / 960P(1280×960) 30fps /720P(1280×720)30fps

 Monitoring Image Quality

 1080P(1920×1080) / 960P(1280×960) /720P(1280×720)

 Image Motion Detection

 Each screen can set multiple detection areas and set 6-level

 sensitivity

 Recording Playback Quality

 Any 4ch 1080P/960P/720P playback simultaneously

 Region Cover

 Every channel can set 4 cover regions(IPC Support)

 Recording Mode

 Support manual , auto, dynamic detection, alarm trigger record mode

 Backup Way

 Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup(Partly needs IPC Support)

 Operation Way

 Mouse

 Local Login

 User name and password

 Recording Storage

 Local HDD, network

 External Ports

Video Input

 20×(1280*960)+sub[640*480]+4Ref.+4Play    20ch 1.3MP IP Camera

 9x(1920*1080)+sub[960*576]+4Ref.+4Play     9ch 2.0MP IP Camera

 4×(2048*1536)+sub[960*576]+4Ref.+4Play    4ch 3.0MP IP Camera

 20×(1280*960)+sub[720*576]+1Ref.+4Play    20ch 1.3MP IP Camera

 16x(1920*1080)+sub[720*576]+1Ref.+4Play   16ch 2.0MP IP Camera

Audio Input

 16ch network audio input

Video Output

 1ch VGA+1ch HDMI

 Audio Output

 1ch RCA output

 Network Port

 1 RJ45,10M/100M/1000M self-adaptive LAN port

 RS485 Port

  Full duplex standard 485 port

 USB Port

 3 USB 2.0 ports(one on front panel, two on rear panel)

 Alarm Input

 4ch

 Alarm Output

 1ch

 Wireless Port

 3G,WIFI

 HDD

 HDD Port

 9 SATA+1 E-SATA HDD ports

 MAX Capacity

 Each port supports MAX 4TB HDD

 Mobile Surveillance

 Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

 Power Supply

 ATX110-220V 300W 50-60Hz

 Power Consumption

 ≤35W(without HDD)

 Working Temperature

 -10℃~+55℃

 Working Humidity

 10%-90%

 Dimension

 Equipment: 440mm×450mm×90mm, Packing: 539mm×550mm×225mm

 Weight(without HDD)

 N.W.: 7.4Kg; with packing: 10Kg

 Outside Carton

 2pcs/carton. 555mm×545mm×470mm; weight: 21Kg

 Installation Way

 Desktop Installation

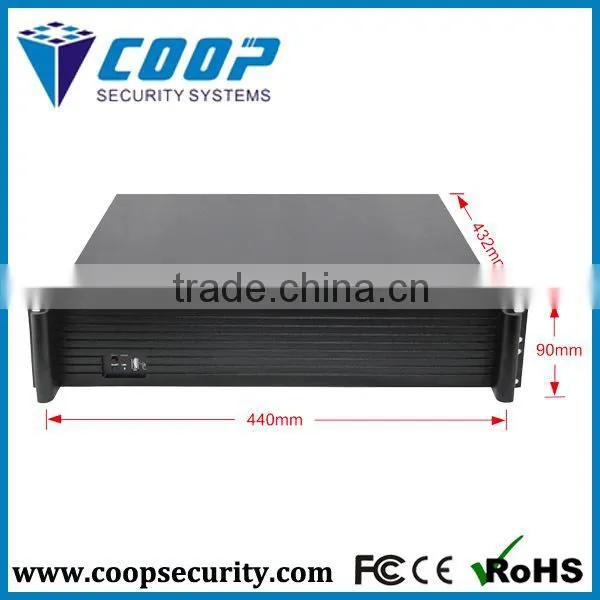

Dimension



 3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output

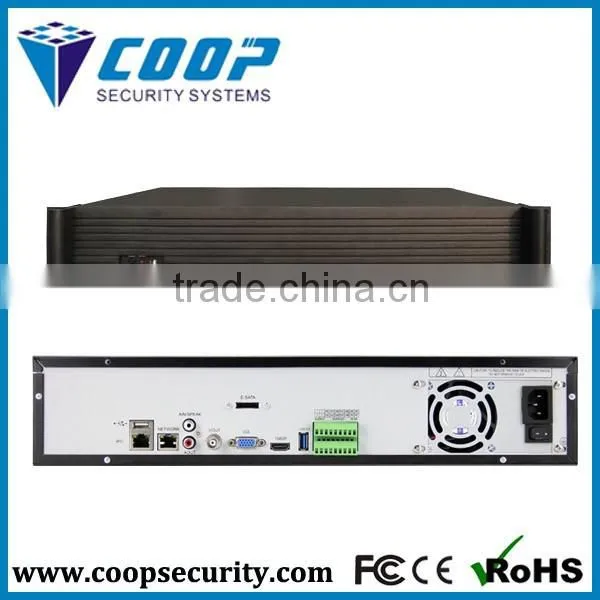

Product photos





3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output





OEM &ODM

Welcome to OEM &ODM

OEM .MOQ Is 50pcs,

Pls let us know the model No and quantity.

Print your logo on the camera or system







NVR KITS

 NVR KIT

4 channel nvr kit dome camera or bullet camera free combination

 720P/960P POE NVR KIT 4CH /  720P WIFI NVR KIT 4CH

3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output

8ch poe nvr kit

720P/960P/1080P optional  Bullet Camera Or Dome Camera Optional

3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output

3G WIFI 3MP IP Camera 2U 9HDD Capacity NVR 16CH HDMI VAG Video Output
