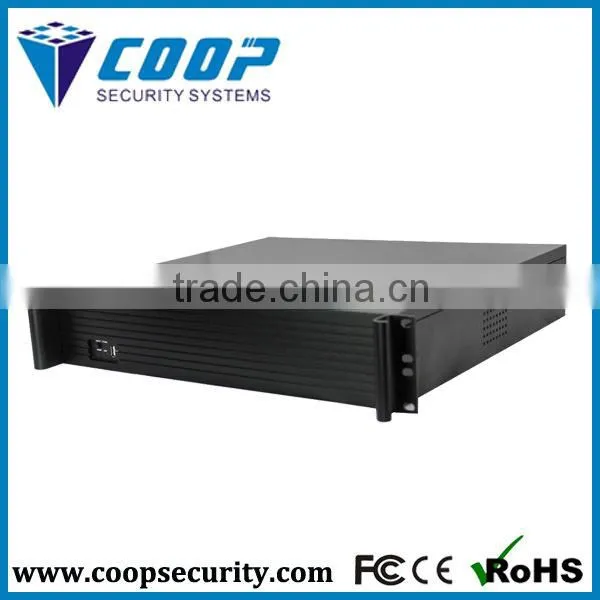

USB DVR2U Network 9CH NVR H.264 Surveillance CCTV Camera 9 Channel Long Time Recording NVR
Main Functions:
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient forthe project construction;
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parametersare more easy and convenient;
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomlyunder preview and playback modes;
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
5. The recording playback is shown by time bar and different color represents different recording type. It is veryfast and easy to find check the recording;
6. Recording backup can be accurate to second. Any time period of backup is available;
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures canbe viewed directly;
8. With 3G, WIFI wireless connection functions;
9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;
10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
SPECIFICATION
Model Number |
DV-9009 |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps / 960P(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 720P(1280×720) |
|
Image Motion Detection |
Each screen can set multiple detection areas and set 6-level sensitivity |
|
Recording Playback Quality |
Any 4ch 1080P/720P playback simultaneously |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup(Partly needs IPC Support) |
|
Operation Way |
Mouse |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |

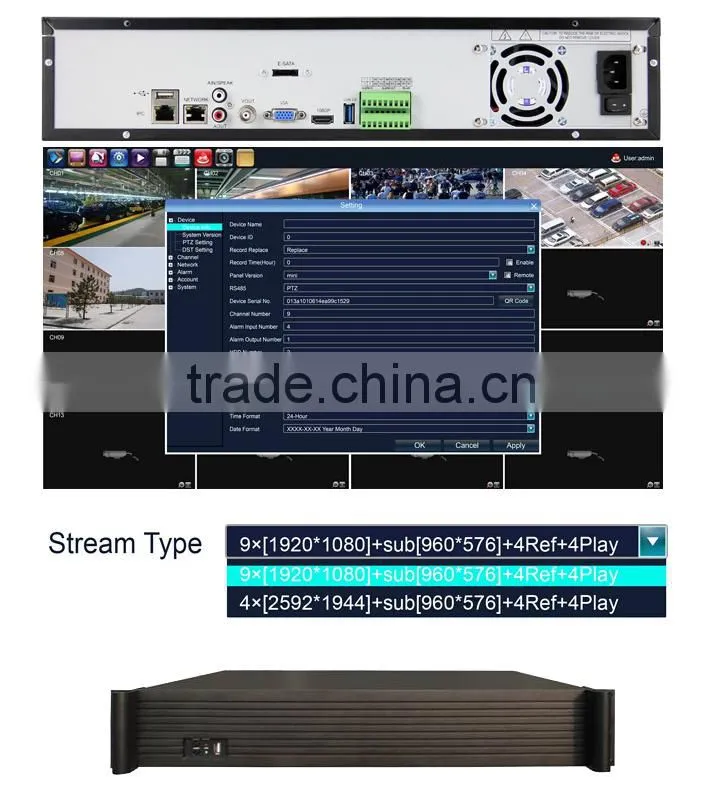

9×(1920*1080)+sub[960*576]+4Ref.+4Play 9ch 2.0MP IP Camera |
4×(2048*1536)+sub[960*576]+4Ref.+4Play 4ch 3.0MP IP Camera | ||
Audio Input |
9ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA output |
|
Network Port |
1 RJ45,10M/100M/1000M self-adaptive LAN port |
|
RS485 Port |
Full duplex standard 485 port |
|
USB Port |
3 USB 2.0 ports(one on front panel, two on rear panel) |
|
Alarm Input |
4ch |
|
Alarm Output |
1ch |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
9 SATA+1 E-SATA HDD ports |
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
ATX110-220V 300W 50-60Hz |
|
Power Consumption |
≤35W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
Dimension |
Equipment: 440mm×450mm×90mm, Packing: 539mm×550mm×225mm |
|
Weight(without HDD) |
N.W.: 7.4Kg; with packing: 10Kg |
|
Outside Carton |
2pcs/carton. 555mm×545mm×470mm; weight: 21Kg |
|
Installation Way |
Desktop Installation |
|
All of items will be careful packaged before shipping, As below photo showed :
Shipping Way:
by sea /air / express
NVR KIT
4 channel nvr kit dome camera or bullet camera free combination
720P/960P POE NVR KIT 4CH / 720P WIFI NVR KIT 4CH
8ch poe nvr kit
720P/960P/1080P optional Bullet Camera Or Dome Camera Optional
COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.
There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.
We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.
Certification if you need CE ROHS
