Home > Security & Protection > Surveillance, Control & Protection > Monitoring System & Software > RJ45 1080P 3G WIFI Port 20CH Embedded Linux Operating System NVR Cloud Network Storage

RJ45 1080P 3G WIFI Port 20CH Embedded Linux Operating System NVR Cloud Network Storage

Name: RJ45 1080P 3G WIFI Port 20CH Embedded Linux Operating System NVR Cloud Network Storage
Brand: COOPSECURITY
SKU: 103888233
Availability: InStock

RJ45 1080P 3G WIFI Port 20CH Embedded Linux Operating System NVR Cloud Network Storage thumbnail-1

RJ45 1080P 3G WIFI Port 20CH Embedded Linux Operating System NVR Cloud Network Storage photo-1

US$ 550 - 600 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

COOPSECURITY

Model Number:

DV8020 NVR

Contact Supplier Request Quote Chat Now

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name COOPSECURITY

Model Number DV8020 NVR

Specifications

nvr 36/20/16ch
P2P cloud
Onvif RTSP standard
portable nvr

1080P 3G WIFI Port 20CH Embedded Linux Operating System NVR Cloud Network Storage RJ45

Model Number		DV8020
Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps
Monitoring Image Quality		1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Motion Detection		Each screen can set mutiple detection areas and set 6-level sensitivity
Recording Playback Quality		Any 4ch 1080P/720P playback simultaneously
Region Cover		Every channel can set 4 cover regions(IPC Support)
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup
Operation Way		Mouse, remote control, front panel
Local Login		User name and password
Recording Storage		Local HDD, network
External Ports	Video Input	*20×(1280960)+sub[640480]+4Ref.+4Play 20ch 1.3MP IP Camera*
		*9x(19201080)+sub[960576]+4Ref.+4Play 9ch 2MP IP Camera*
		*4×(20481536)+sub[960576]+4Ref.+4Play 4ch 3MP IP Camera*
		*20×(1280960)+sub[720576]+1Ref.+4Play 20ch 1.3MP IP Camera*
		*16x(19201080)+sub[720576]+1Ref.+4Play 16ch 2MP IP Camera*
	Audio Input	16ch network audio input
	Video Output	1ch VGA+1ch HDMI
	Audio Output	1ch RCA output
	Network Port	1 RJ45,10M/100M/1000M self-adaptive LAN port
	RS485 Port	Full duplex standard 485 port
	USB Port	3 USB 2.0 ports (one on front panel, two on rear panel)
	Alarm Input	4ch
	Alarm Output	1ch
	Wireless Port	3G,WIFI
HDD	HDD Port	4 SATA HDD Port
	MAX Capacity	Each port supports MAX 4TB HDD
Mobile Surveillance		Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply		12V6A
Power Consumption		≤25W(without HDD)
Working Temperature		-10℃~+55℃
Working Humidity		10%-90%

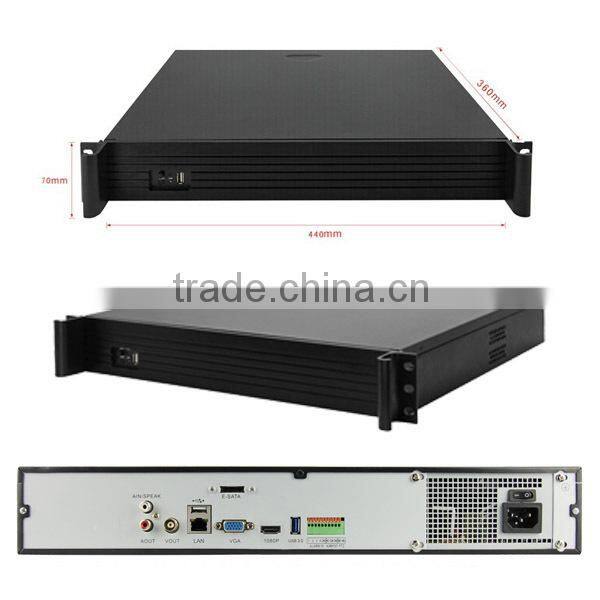

Dimension		Equipment: 440mm×360mm×70mm, Packing: 460mm×135mm×560 mm
Weight(without HDD)		N.W.:5.7Kg;With packing:6.9Kg
Outside Carton		4 pcs/carton, Size:480mm×560mm×575mm; Weight:30Kg.
Installation Way		Desktop Installation
