Cloud Service NVR System CMS HDMI VGA Output Onvif P2P 3MP 5MP NVR 1080P 25CH 1.5U NVR DV7025
DV7025 1080P 25CH 1.5U NVR Features:
- Recording backup can be accurate to second. Any time period of backup is available.
- Backup recording files in the USB disk can play and search on the NVR directly.
- Support 15X zoom under preview and playback modes.
- NVR assigns IP address for IPC automatically, plug and play (only for the IPC that has private protocol with NVR).
- Support setting IPC parameters on the NVR directly.
DV7025 1080P 25CH 1.5U NVR Specification:
Model Number |
DV7004 |
DV7009 |
DV7025 |
||
Operating System |
Embedded LINUX operating system |
||||
Image Code Contrlo |
Image code quality adjustable, variable bitstream optional. |
||||
Dual Stream |
Each channel can set main stream and sub stream. |
||||
Video Standard |
1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps |
||||
Monitoring Image Quality |
1080P(1920×1080)/960P(1280×960)/720P(1280×720) |
||||
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support) |
||||
Recording Playback Quality |
4ch 5MP/3MP/1080P |
Any 9ch 960P playback, 4ch 5MP/3MP/1080P |
|||
Region Cover |
Every channel can set 4 cover regions (IPC Support) |
||||
Recording Mode |
Support manual, auto, motion detecion, alarm trigger record mode. |
||||
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, nerwork storage and backup. |
||||
Operation Way |
Mouse |
||||
Local Login |
User name and password. |
||||
Recording Storage |
Local HDD, nerwork |
||||
External Ports |
Video Input |
1.4x(2592*1944)+sub[960*576] |
1.9×(1920*1080)+sub[960*576] |
1.25×(1280*60)+sub[960*576] |
|
2.4×(2048*1536)+sub[960*576] |
2.9×(1280*960)+sub[720*576] |
2.×(1920*1080)+sub[720*576] |
|||
3.4×(1920*1080)+sub[960*576] |
3.9×(2048*1536)+sub[960*576] |
3.(2048*1536)+sub[960*576] |
|||
/ |
4.4x(2592*1944)+sub [960*576] |
4.(2592*1944)+sub [960*576] |
|||
/ |
/ |
/ |
|||
Audio Input |
t 4ch network audion input |
9/4ch network audion input |
25/16ch network audion input |
||
Audio Output |
1ch RCA |
||||
Video Output |
1ch VGA+1ch HDMI |
||||
Network Port |
1 RJ45, 10M/100M/1000M self-adaptive LAN port |
||||
RS485 Port |
Full duplex standard 485 port. |
||||
USB Port |
3×USB 2.0 ports |
2×USB 2.0 ports |
|||
Alarm Input |
2ch(Optional) |
||||
Alarm Output |
1ch(Optional) |
||||
Wireless Port |
WIFI |
||||
HDD |
HDD Port |
2×SATA HDD Port |
|||
MAX Capacity |
Each port supports MAX 4TB HDD |
||||
Mobile Surveillance |
Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
||||
Power Supply |
12V3A |
||||
Power Consumption |
≤20W(without HDD) |
||||
Working Temperature |
-10℃~+55℃ |
||||
Working Humidity |
10%-90% |
||||
Dimension |
Equipment: 350mm×240mm×68mm, Packing: 409mm×365mm×129mm |
||||
Weight(without HDD) |
N.W.: 1.7Kg; With Package: 2.9Kg |
||||
Outside Carton |
5 pcs/carton. 675mm×425mm×385mm; Weight: 15.3Kg |
||||
Installation Way |
Desktop Installation |
||||

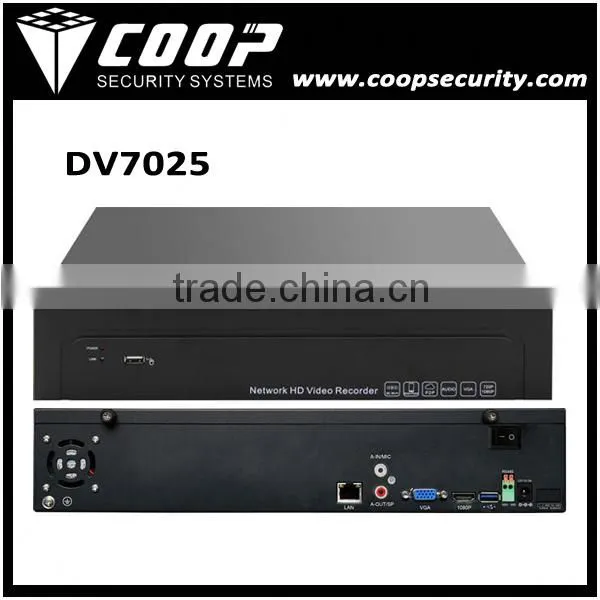

DV7025 Ports
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
