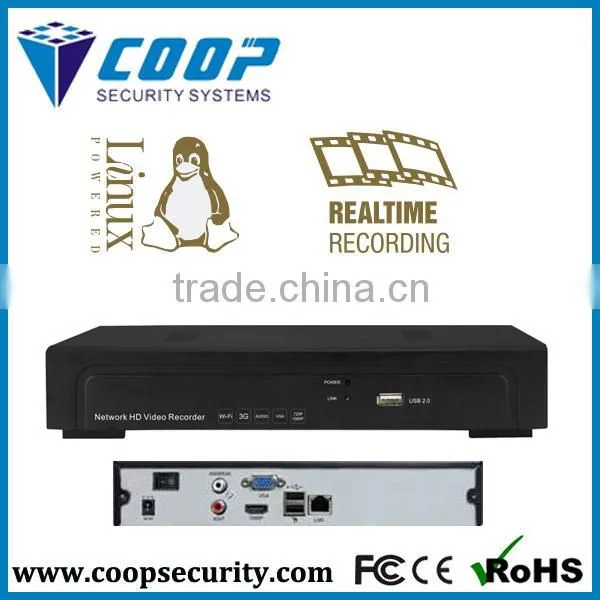

Security CCTV System 3MP 5MP 1.5U 1HDD 8 Channel IP Camera Recorder Cloud NVR HD 1080p

Model Number

DV6008

Operating System

Embedded LINUX operating system

Image Code Contrlo

Image code quality adjustable, variable bitstream optional.

Dual Stream

Each channel can set main stream and sub stream.

Video Standard

1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps

Monitoring Image Quality

1080P(1920×1080)/960P(1280×960)/720P(1280×720)

Image Motion Detection

Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)

Recording Playback Quality

4ch playback in 8ch
720P mode;
1ch playback in 8ch
1080P/960P mode.

Region Cover

Every channel can set 4 cover regions (IPC Support)

Recording Mode

Support manual, auto, motion detecion, alarm trigger record mode.

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW, nerwork storage and backup.

Operation Way

Mouse

Local Login

User name and password.

Recording Storage

Local HDD, nerwork

External Ports

Video Input

8×(1280*960)
+sub[640*360]
+1Ref.+4Play
8ch 1.0MP IP Camera

8×(1280*960)
+sub[640*480]
+4Ref.+1Play
8ch 1.3MP IP Camera

8×(1920*1080)
+sub[640*480]
+2Ref.+1Play
8ch 2.0MP IP Camera

8×(1920*1080)
+sub[720*576]
+1Ref.+1Play
8ch 2.0MP IP Camera

/

Audio Input

4ch network audion input

Audio Output

1ch RCA

Video Output

1ch VGA+1ch HDMI

Network Port

1 RJ45, 10M/100M self-adaptive LAN port

RS485 Port

/

USB Port

3×USB 2.0 ports(one on front panel, two rear panel)

Wireless Port

WIFI

HDD

HDD Port

1×SATA HDD Port

MAX Capacity

Each port supports MAX 4TB HDD

Mobile Surveillance

Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply

12V2.6A

Power Consumption

≤25W(without HDD)

Working Temperature

-10℃~+55℃

Working Humidity

10%-90%

Dimension

Equipment: 260mm×220mm×43mm, Packing: 355mm×255mm×88.5mm

Weight(without HDD)

N.W.: 1.5Kg; With Package:2.6Kg

Outside Carton

10 pcs/carton. 525mm×455mm×365mm; Weight:25Kg

Installation Way

Desktop Installation

Rear Panel:
