CCTV PTZ Keyboard Plug and Play USB Joystick IP LED RS485 PTZ Controller
CCTV RS485 Remote PTZ Keyboard 3 Joystick IP LED PTZ Controller
3-Aixs USB PTZ Controller compatible with milestone, Axxon, NUUO, ACTI, Vivotek and Video Insight Client Software
FEATURE
8" Digital Monitor support high pixel of 800*600 or 1024*768
PTZ joystick
BNC/USB/VGA Interface,VGA input, support DVR linkage control
Shuttle support the FORWARD/BACKWARD/STOP/PLAY/RECORD
Support multi Dome Protocol, Pelco D/P etc.
Support multi DVR Protocol, Hikivision/Duhua/TVT ect.
PTZ Controller Specification

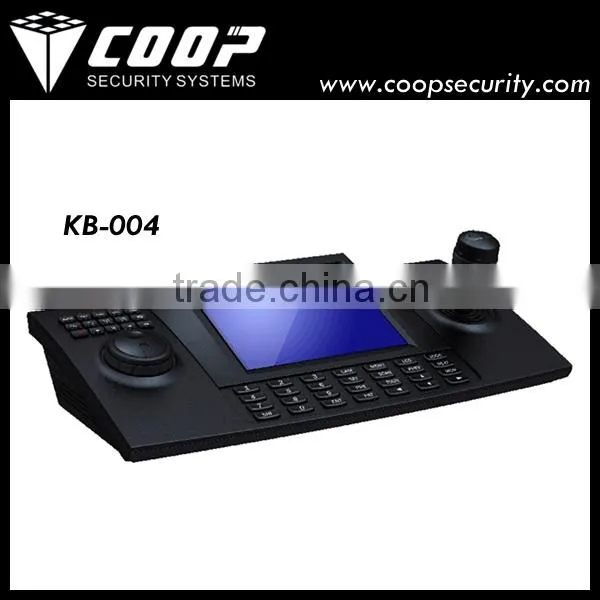

Model |
KB-004 |
Screen |
8” Digital Monitor |
Interface Mode |
USB VGA RS485 |
Baud Rate |
2,400~19,200bps |
Switch |
DVR Playback Control |
Controller |
255 Unit (PTZ/ DVR/ Matrix) |
Pixel |
Support 800*600 1024*768 |
Protocol |
Pelco D/P |
Operation Temperatuer |
-10°C ~ + 50°C |
Humidities |
10~ 70% ( Non condensed state) |
Operation voltage |
DC 12V ~ 18V |
Operation Consumption |
500mA |

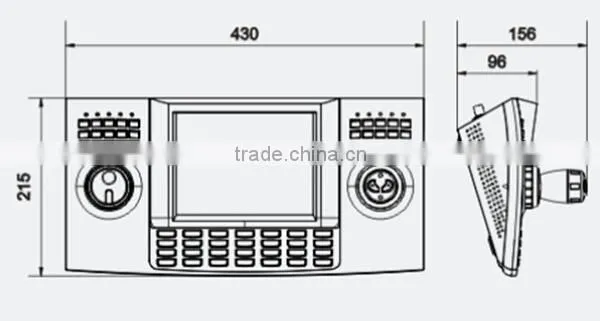

Measure |
L430mm* W206mm * H144mm |
Weight |
1700 |
Material |
`ABS Plastic |

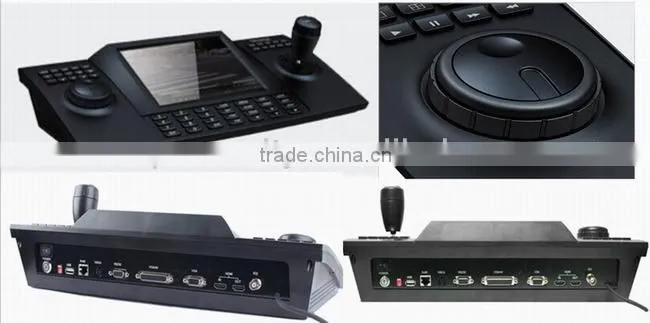

PTZ Controller IMAGES
PTZ Controller Similar Products
Packing: 1 PCS to 1 Box. 12 Boxes to 1 carton.
Shipping: Usually shipping by Express for small order, by Air or by sea for large order
We were in Secutech 2013 Taipei
1. Sample order is highly welcomed.
2 Your LOGO can be puttted on cameras.
2. Model Number can be customized.
3. Welcome OEM & ODM order, MOQ for OEM is 50pcs/model.
Q. What's the MOQ for this item?
A. MOQ 1pcs. Sample order is welcome.
Q. What's the payment term?
A. We accept payment by T/T bank transfer, PayPal, or WesterUnion.
Q. What's the delivery time?
A. Usually in 7-10 workdays after payment received.
Q. What's your detailed warranty policy?
A. Please kindly refer to our webiste for related information: /Warranty.html
