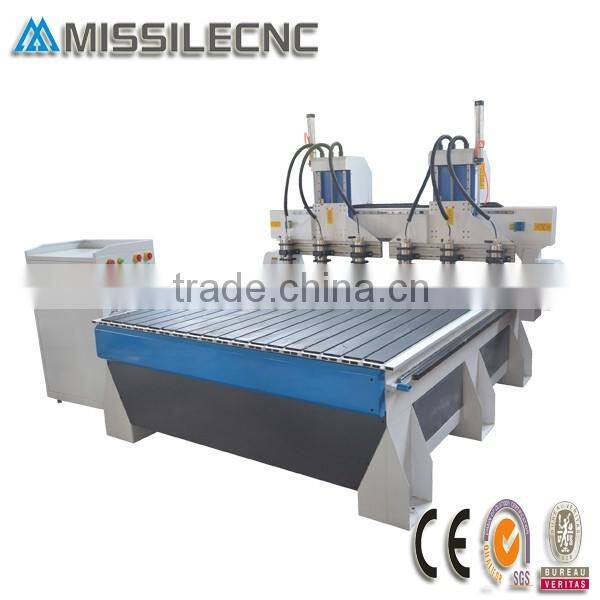

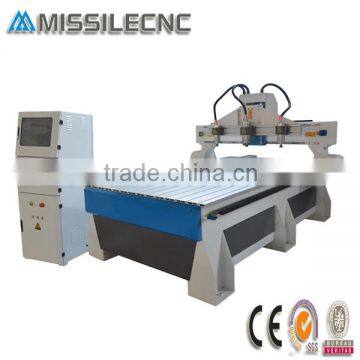

jinan missile 2025 3d wood carving machines
Parameter:
X,Y,Z Working Area |
2500x1500x200mm (opitioinal other model) |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear |
Z axis transmission |
Ball Screw |
Max. Traveling speed |
40000mm/min |
Max. Working speed |
25000mm/min |
Soft working system |
Windows2000/XP/98 |
Rail Configuration |
25 square rail( opitional 20/30) |
Resolution |
0.01mm |
Spindle Power |
Water-cooling 1.5KW (opitional Airr-cooling spindle ) |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
Servo |
Working Voltage |
AC380V/50Hz,3PH (Opition: AC220V/50HZ) |
Operating System |
Ncstudio system |
Computer Interface |
USB |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
JDPaint |
Packing |
Wooden case |
N.W. |
1300KG |
Features:
Structure: welded thick square-tube steel, whole body aging treatment, highly controlled rate of deformation .
Transmission: X and Y axis equipped with high precision high rigidity helical rack-pinion. Y axis is with two sides driving, high speed, powerful
Driver: Servo system, not break, not misplace.
Control system: NC studio control system, PC based control. It has the function of breaking point memorize function, which can back to work after accident (cutter break) or the next day.
Optional: Air cooling or water cooling spindle, imported servo available, customized different models.
Application:
Applicable field: European furniture carving, powerful, deep engraving
Applicable material: wood, MDF, plywood, etc
