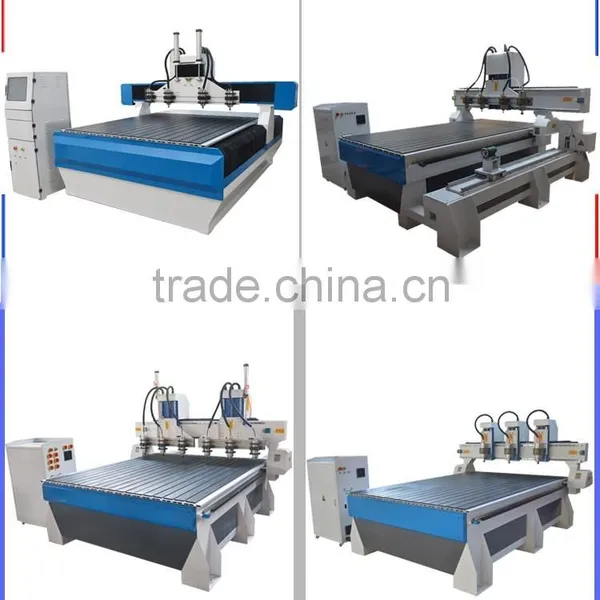

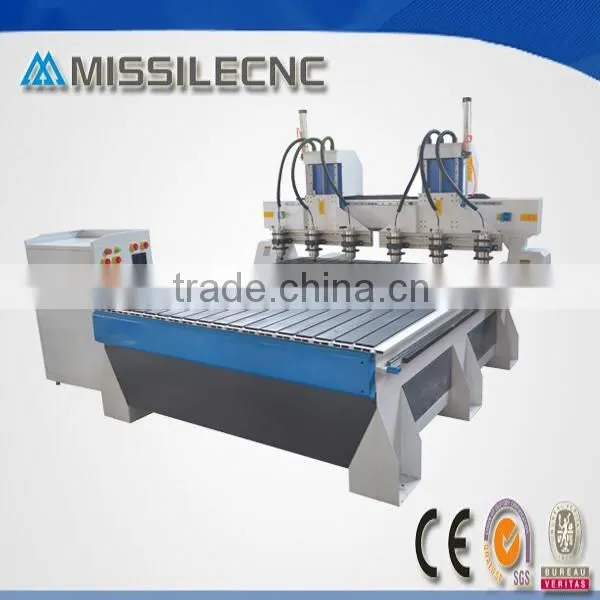

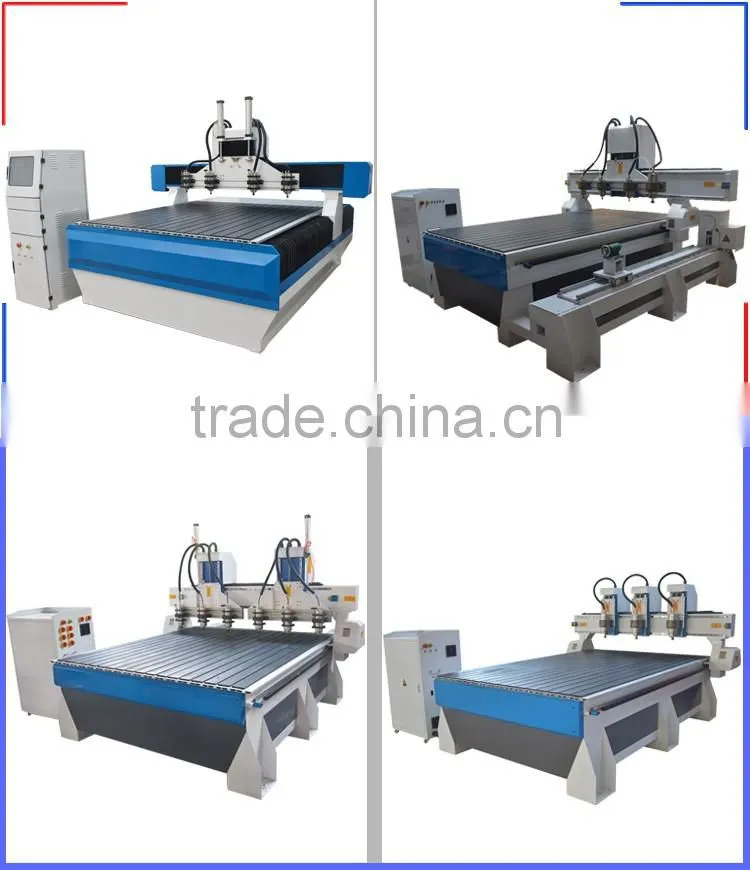

good price multi head wood engrave router machine
1.Structure : welded thick square-tube steel, whole body aging treatment, highly controlled rate of deformation .
2.Transmission: X and Y axis equipped with high precision high rigidity helical rack-pinion.Y axis is with two sides driving, high speed ,powerful
3.Driver: SERVO SYSTEM,not break ,not misplace.
4.Control system : NC studio control system ,PC based control
5.SPINDLE:1.5KW X 6 AIR-COOLED SPINDLE
| X,Y,Z Working Area | 2500x1500x200mm(OPINION OTHER MODEL) |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| RESOLUTION | 0.01MM |
| Table Surface | Aluminum T-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | rack |
| Z axis transmission | Ball Screw |
| Max. traveling speed | 40000mm/min |
| Max. Working Speed | 25000mm/min |
| Rail Configuration | 25 square rail(opition:20,30) |
| Spindle Power | air-cooled 1.5kw*6 spindle |
| Spindle rotationg Speed | 0-24000RPM |
| Drive Motors | Servo |
| Working Voltage | AC220V/50HZ |
| Operating System | NC Studio system ( opitional DSP handle) |
| Computer Interface | USB/PCI |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | JDPaint |
| Packing | Wooden case |
| N.W | 1300KGS |
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
