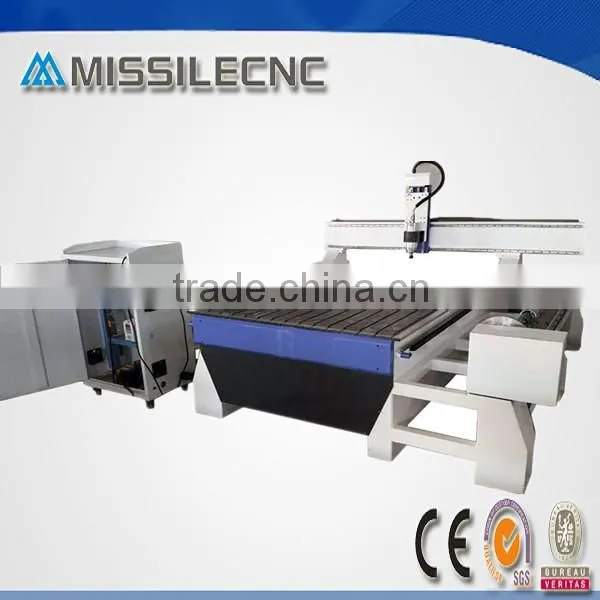

High precision 3d 1325 wood cnc router with rotary axis
Features of wood cnc router with rotary axis :
1. 3-axis import linear square rail , xyz axis adopt import ball screw , move smoothly , high accuracy carving .
2. High-speed low noise import spindle , long time .
3. 3-axis adopt high power high speed low noise , low error rate sevo diver and motors , efficiently avoid misplace situation for motor heating after x –axis work high speed long time widen machine head part assembly additional bob-weight and ancillary shorting , make whole machine move more smoothly , more flexible up and down .
4. Original nc-studio control system with computer connection directly , supprt break , continue carving after cut off electric , and auto-alarm in the situtation of wrong engraving , avoid waste products,strong anri-interference ability,and ajust products accuracy by software , compatibility type3/artcam/castmate/proe/ug/wen tai ect kinds of cad/cam software .
5. Lathe bed is welded by thick square tubes , through giant planer processing , strong and non-defrmation , long life time .
Specifications of wood cnc router with rotary axis :
Model |
1825 |
X,Y,Z Working area |
1800*2500*200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear, |
Z axis transmission |
Ball Screw |
Max Traving speed |
25000mm/min |
Max Working speed |
15000mm/min |
Rail Configuration |
20 square rail |
Spindle Power |
Water-cooling 1.5KW*4 |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
Stepper System |
Working Voltage |
AC220V/50HZ |
Operating System |
NC Studio system |
Computer Interface |
PCI |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
Packing |
Wooden case |
N.W. |
1450KG |
Main applications of wood cnc router with rotary axis :
It is widely used for processing art craft , classical furniture , redwood etc 3d relief engraving .
Furniture: can process cabint , wood door , soild wood , plate-type , windows , table,chairs, etc.
Decoration: screen , wave plate , huge-scale hanging , advertisment plates , markings makiing .
Arts: can engrave on man-made stone , wood , bamboo , marble , acrylic , double-colored board beautiful drawings and letters .
