H.264 Format 4-Bracket Mega Pixel HD Dome Camera

H.264 Format 4-Bracket Mega Pixel HD Dome Camera thumbnail-1
H.264 Format 4-Bracket Mega Pixel HD Dome Camera thumbnail-2
H.264 Format 4-Bracket Mega Pixel HD Dome Camera thumbnail-3
H.264 Format 4-Bracket Mega Pixel HD Dome Camera photo-1
H.264 Format 4-Bracket Mega Pixel HD Dome Camera photo-2
H.264 Format 4-Bracket Mega Pixel HD Dome Camera photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
COOP
Model Number:
HD30VDYV
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name COOP
Model Number HD30VDYV
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof

Model NO.:HD30VDYV

H.264 format 4-Bracket Mega Pixel HD Dome Camera



l 3 MP 1080P HD real-time image output, Clear and realistic, Transmission fluently.

l Wide dynamic range is 120dB,Apply to many environment where intense light contrast.

l Best Low-illuminance effect,Colour:0.1 lux(F1.7),B&W:0.01 lux (F1.7).

l 4- speedy adjust structure, metal vandal resistant, easy to assemble, waterproof strength constant force, IP 66.

l Special flush mount, Adopt flush mount, more secluded, artistic, safety.

l IR-CUT Filter, Support auto iris, Automatic Electronic shutter function, high definition day and nigh surveillance, adapt to different monitoring environment.

l H.264 video compression technologies, super Low stream can reproduce high definition picture quality, record the condition clearly.

l Support Onvif2.0 protocol. Support RTSP VLC streaming media protocol. Support record FTP upload

l Dual stream transmission- Local High stream transmission TF card, WIFI low stream visit, Noninterference, clearly image.

l Two-way Audio talk back ,easily Communication. WIFI. P2P function optional.

l Adopt DC power,adopting POE power support, built-in lightning protection 6KV, wave resistance protection and overvoltage protection systems.



l Network remote browse, cooperate platform management, Access easy and convenient, accurate information security.



Parameters:



F

Model No.

HD30VDYV

General Function

Feature

Wide Dynamic Range

CMOS Type

Aptina Imaging CMOS

CMOS Model

1/3″300 Mega Pixel

HD Output

Image Adjustable

1080P:2048×1536P

720P:1280×720P

D1:640×480

Illumination

Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON)

IR Distance

40M(42pcs black IR led)

Shutter Speed

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Lens

Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens

Exposure Control

DSP Auto Adjust

AGC & WB

AGC:Auto(high, media, low )    White Balance:Auto,Close

S/N Ratio

≥50dB

Network function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support

Agreement

Support Onvif2.0,PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS

Dual Stream

Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, SD Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Upgrade maintenance

Support Remote Upgrade, With Password Protect.

Wireless

Charge for optional, Adapting WIFI and P2P Intelligence Mobile Phone Visit

Special function

Optional Function

Charge for optional: POE and TF card storage

Mouse Zoom

Click Any Rectangle Area And Zoom In or Zoom Out On the Image By Mouse

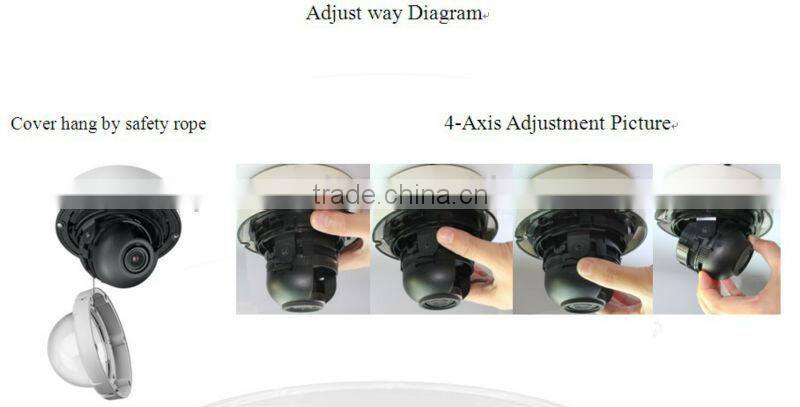

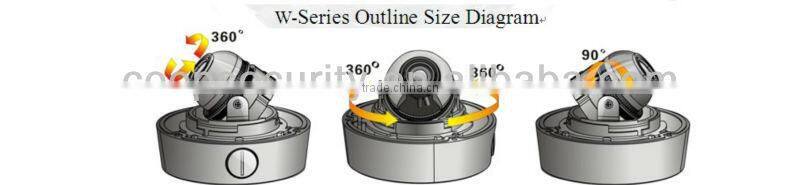

4 Adjustment

Built In 4- Bracket, Adjust the Surveillance Angle at Any Position Easily

Vandal Resistant

High Strength Aluminium Casting Alloy,“0°Warp Ray Rate” Acrylic Gauge Cover

Flush Mount

Adopt Flush Mount, More Secluded, Artistic, Safety

Waterproof Grade

Constant Force Soft Plug at Fitting Up Joint, IP66

Intelligent Alarm

Motion Detect,Video Shelter,I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal.

Video efficiency

Effective Pixel

1280*1080

Video Frame Rate

50Hz/60Hz: 25fps,30fps,50fps,60fps etc

Image Capture

JPEG for Local Storage

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.

Audio

Audio Encoding

With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed

Audio Function

Audio Broadcast Audi playback

Mount Standard

Power Mount

DC Female Connector,5.5×2.1mm

Network Mount

1ch 10M/100M Ethernet Mouth, RJ45 Mount

Video Output

1ch local analog output, BNC interface.

Alarm Mount

1ch Alarm Input 1ch Alarm Output

Audio Mount

1ch Audio input 1ch Audio Output

RS485 Mount

1ch RS485 mount

Other standard

Working Enviroment

Enviroment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90%

Power Consumption

DC 12V±5% ,IR Led on: 5W

size(mm)

Products Size:155 × 155 × 130 mm   Carton Size:580 × 430 × 380 mm(22 CTN)

weight

Net Weight:1.45 Kg~1.55 Kg     Gross Weight:31.90 Kg~34.10 Kg

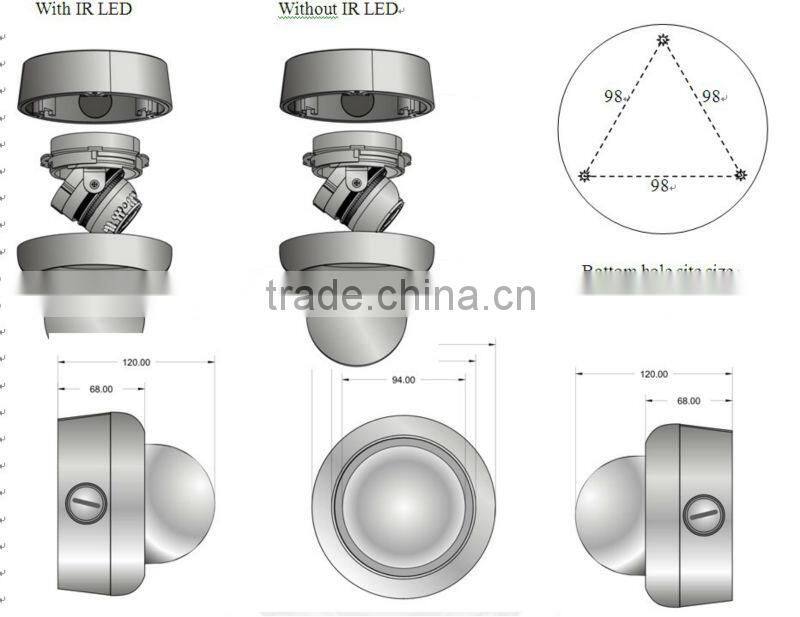

  Machine Size:



H.264 format 4-Bracket Mega Pixel HD Dome CameraH.264 format 4-Bracket Mega Pixel HD Dome CameraH.264 format 4-Bracket Mega Pixel HD Dome Camera
