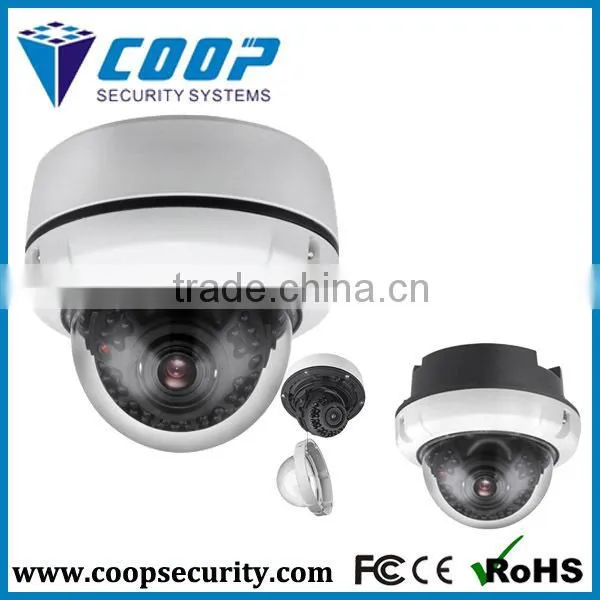

1.3 MP 960P HD IR Vandalproof Dome IP camera

F

Model No.

HD13VDYS

General Function

Feature

Simplification

CMOS Type

Aptina Imaging CMOS

CMOS Model

1/3″1.3 Mega Pixel

HD Output

Image Adjustable

960P:1280×960P

720P:1280×720P

D1:640×480

Illumination

Color: 0.1Lux/BW:0.01Lux(F1.2,AGC ON)

IR Distance

40M(42pcs black IR led)

Shutter Speed

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Lens

Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens

Exposure Control

DSP Auto Adjust

AGC & WB

AGC:Auto(high, media, low )    White Balance:Auto,Close

S/N Ratio

≥50dB

Network function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support

Agreement

Support Onvif2.0,PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS

Dual Stream

Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, SD Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Upgrade maintenance

Support Remote Upgrade, With Password Protect.

Wireless

Non

Special function

Optional Function

Non

Mouse Zoom

Click Any Rectangle Area And Zoom In or Zoom Out On the Image By Mouse

4-Adjustment

Built In 4-Bracket, Adjust the Surveillance Angle at Any Position Easily

Vandal Resistant

High Strength Aluminium Casting Alloy,“0°Warp Ray Rate” Acrylic Gauge Cover

Flush Mount

Adopt Flush Mount, More Secluded, Artistic, Safety

Waterproof Grade

Constant Force Soft Plug at Fitting Up Joint, IP66

Intelligent Alarm

Motion Detect,Video Shelter,I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal.

Video efficiency

Effective Pixel

1280*960

Video Frame Rate

50Hz/60Hz: 25fps,30fps,50fps,60fps etc

Image Capture

JPEG for Local Storage

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.

Audio

Audio Encoding

Non

Audio Function

Non

Mount Standard

Power Mount

DC Female Connector,5.5×2.1mm

Network Mount

1ch 10M/100M Ethernet Mouth, RJ45 Mount

Video Output

1ch local analog output, BNC interface.

Alarm Mount

Non

Audio Mount

Non

RS485 Mount

Non

Other standard

Working Enviroment

Enviroment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90%

Power Consumption

DC 12V±5% ,IR Led on: 5W

size(mm)

Products Size:155 × 155 × 130 mm

weight

Net Weight:1.45 Kg~1.55 Kg
