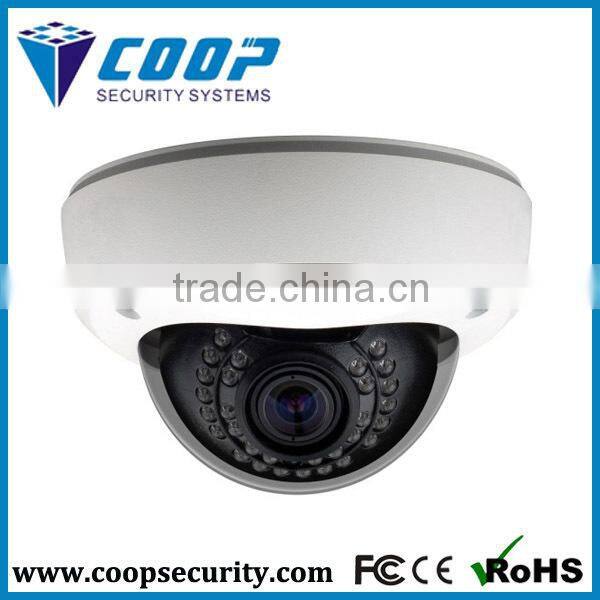

Chinese Surveillance Cameras HD TVI/AHD/CVI Analogue Dome Camera 1080p HD TVI System Camera

Model Number

HP-PA1080PN

Camera Solution

EN773E+IMX322+TP2801

Image Sensor

1/2.8”SONY CMOS(IMX322LQJ)

Total Pixels

2000(H) × 1241(V)Approx. 2.48M pixels

Effective Pixels

1984(H) × 1105(V)Approx. 2.19M pixels

Scanning System

Progressive

Resolution

Digital:1080(30p)

Min.lllumination

Color:1.0 lux ,BW: 0.5 lux ,Color:DSS:0.017 lux, BW DSS: 0.0008 lux

Video Output

Digital Output:HD-TVI (1080P)

Analog Output:1Vp-p Composite Output(75Ω

/BNC)

S/N Ratio

More than 50Db(AGC off)

ACE/DWDR

DWDR

Lens

DC/Manual

Brightness

0-20

AGC

0-20 steps

Sens-up

Off-X8

Shutter Speed

AUTO/MANUAL(1/5060 ~ 1/30,000 sec)

Defog

Off/On

Shading

Off/On

BLC

Off/BLC

HLC

Off/Hlc

Day &Night

Auto/Color/B&W/EXTERN

White Balance

Auto/Auto ext/Preset/Manual

MONITOR

0/1/2/3

DNR(Digit Noise Reduction)

Off/Low/Middle/High

Mirror

Off/On

H-V-REV

Off/On

Sharpness

0-10steps

Digital Zoom

1.0x-8.0x

Motion

Off/on

Privacy Mask

16Masks

Language

Chinese/English  polyglot

Power(Max.) supply

DC12V ±10%<1.50W

Video Output

HD-TVI

HD-TVI distance

Support 75-3 coaxial line with more than 350M transfer distance

SIZE

D:Ø135*85mm(H)
