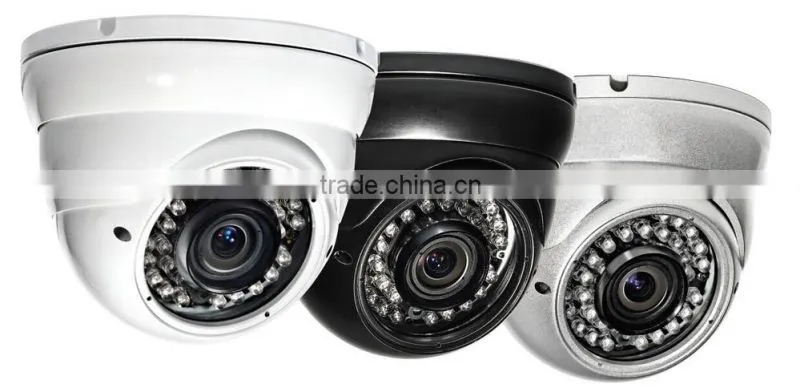

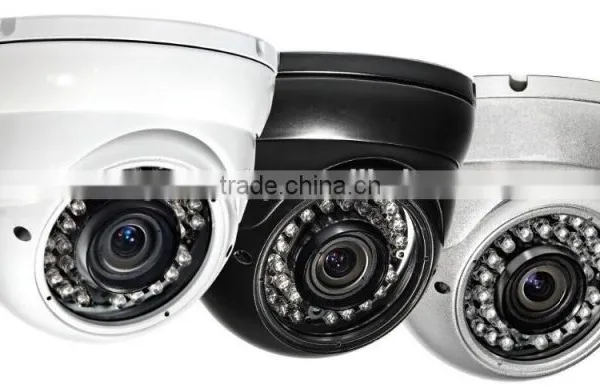

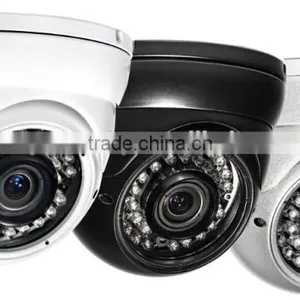

1080p 1/3" CMOS Super wide dynamic ICR Vanderproof Infrared cctv IR dome camera 2.8-12mm lens 2.0MP 36pcs IR leds
Infrared cctv IR dome camera Features:
1080p 1/3" CMOS
Super wide dynamic ICR
Vanderproof Infrared IR dome camera
2.8-12mm 2.0MP VF lens
36pcs IR leds
30-40m IR range
CCTV IR dome camera Technical specifications:
Imaging Sensor |
1/3” 2.43Mega Progressive Scan CMOS IMX222 |
|
Signal System |
PAL/NTSC |
|
Pixel |
1984(H)×1225(V) |
|
Minimum Illumination |
0.001Lux @ (F1.2,AGC ON),0 Lux with IR 0.0014Lux @ (F1.4,AGC ON),0 Lux with IR |
|
Shutter speed |
PAL: 1/50 s--1/100,000s NTSC: 1/60 s-- 1/100,000s |
|
Lens |
2.8~12mm@ F1.4 |
|
Len type |
Φ14 |
|
D/N Switch |
ICR Infrared filter |
|
Horizontal resolution |
1100TVL |
|
Angle adjust |
H:0°~355°;V:0°~80°;rotation: 0°~90° |
|
Synchronization System |
Internal Synchronization |
|
frame rate |
1080p@25fps/1080p@30fps |
|
Video Output |
HD-TVI(1080P)+CVBS 960H |
|
CVBS Video Output | ||
S/N Ratio |
More than 62dB |
|
Wide dynamic |
More than120dB |
|
Title setting |
on/off (15 characters, Any position on the Screen) |
AGC |
Support |
Color/black white |
Auto/Color/B/W/External Control |
White Balance |
Auto |
Privacy Zone |
1~8 Zones |
Mobile detection |
1~4 Zones |
Backlight Compensation |
Support |
Language |
Chinese/English/German / French / Italian / Spanish / Polish / Russian / Turkish / Portuguese / Dutch/Turkish |
Function |
super wide dynamic,strong Light inhibited,3D noise reduce , Digital zoom, Electronic sensitivity,image,demist,Positive negative, Defective pixel,SMART D-ZOOM |
Scene |
indoor,low luxindoor lightoutdoor |
Temperature and humidity |
-20℃~65℃,humidity<90%(No condensation) |
Power |
DC12V±15%(“-A”support AC24V±15% / DC12V±15%) |
IR range |
30-40m |
Consumption |
4W MAX(-A: 5W MAX) |
Waterproof |
IP67 |
Communication |
Coaxial video control coaxial output control protocol: CVBS protocol: Pelco-C output control (with controller) |
Dimension(mm) (packing box) 6.5x6x4cm | |
Weight: 1.2KG | |
