Home > Products > HD-TVI Camera > New HD TVI/AHD/CVI 1080P Technology CMOS Sensor 2MP Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P

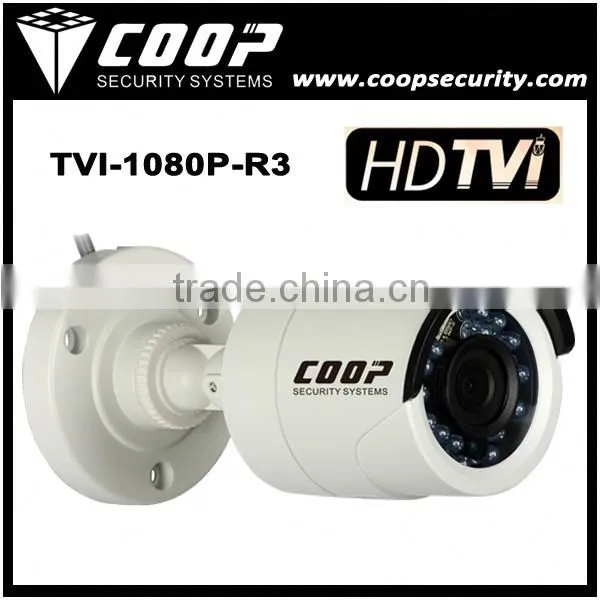

New HD TVI/AHD/CVI 1080P Technology CMOS Sensor 2MP Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P
- Quanzhou
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Coop | |
| Model Number | TVI-1080P-R3 Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P | Type | Analog Camera | |
| Style | Bullet Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
New HD TVI/AHD/CVI 1080P Technology CMOS Sensor 2MP Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P TVI-1080P-R3

Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P Features and Benefits:
2.1M Pixels 3.6mm
- IR distance 30M with 36pcs/5 IR Lens
- High-performance CMOS sensor,with Mega pixels resolution
- Support HD video, control signal transfer
- Support 75-3 coaxial line with more than 350M transfer distance
- Support 1080p(1920*1080)@25/30fps
- High speed, long distance, lives transmission.
- Support OSD menu adjusting parameter.
- Support DC 12V Power Supply
- High-performance, 3D-NR and Super Low Lux Performance
- Support WDR,DSS,D-ZOOM ,3D-DNR,DEFOG
- AWB/ATW/PUSH/MANUAL
- IP66 Weatherproof
- ICR
Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P Specification:
Model Number | TVI-1080P-R3 |
Camera Solution | IMX222 |
Image Sensor | 1/2.8”SONY CMOS |
Total Pixels | 2000(H) × 1241(V)Approx. 2.48M pixels |
Effective Pixels | 1984(H) × 1105(V)Approx. 2.19M pixels |
Scanning System | Progressive |
Resolution | Digital:1080(30p) |
Min.lllumination | Color:1.0 lux ,BW: 0.5 lux ,Color:DSS:0.017 lux, BW DSS: 0.0008 lux |
Video Output | Digital Output:HD-TVI (1080P) Analog Output:1Vp-p Composite Output(75Ω /BNC) |
S/N Ratio | More than 50Db(AGC off) |
ACE/DWDR | DWDR |
Lens | DC/Manual |
Brightness | 0-20 |
AGC | 0-20 steps |
Sens-up | Off-X8 |
Shutter Speed | AUTO/MANUAL(1/5060 ~ 1/30,000 sec) |
Defog | Off/On |
Shading | Off/On |
BLC | Off/BLC |
HLC | Off/Hlc |
Day &Night | Auto/Color/B&W/EXTERN |
White Balance | Auto/Auto ext/Preset/Manual |
MONITOR | 0/1/2/3 |
DNR(Digit Noise Reduction) | Off/Low/Middle/High |
Mirror | Off/On |
H-V-REV | Off/On |
Sharpness | 0-10steps |
Digital Zoom | 1.0x-8.0x |
Motion | Off/on |
Privacy Mask | 16Masks |
Language | Chinese/English polyglot |
Power(Max.) supply | DC12V ±10%<1.50W |
Video Output | HD-TVI |
HD-TVI distance | Support 75-3 coaxial line with more than 350M transfer distance |
SIZE | D:280mm(L)*100mm(W)*120mm(H) |
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Electronic Show:
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS

Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
Fixed Lens 3.6mm HD TVI Outdoor Camera 1080P Similar Products:
1080P HDCVI Camera Kit
