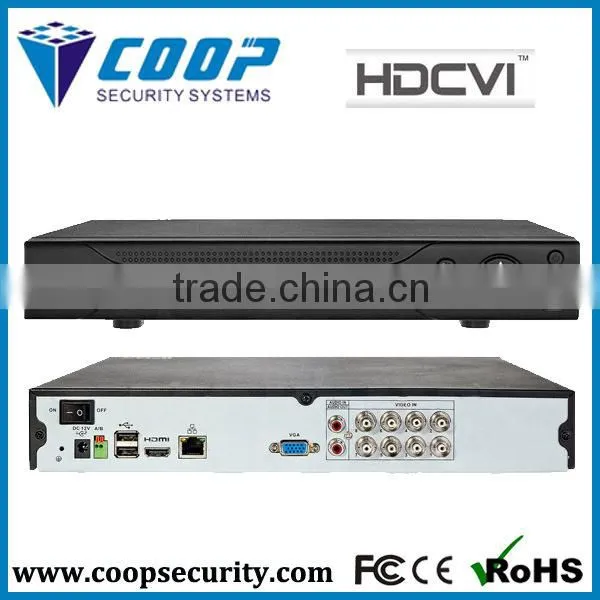

Professional HDCVI DVR 8 Channel Home Security System Moblie Surveillance CVI DVR
Specification
Model |
DV-8004-CVI |
DV-8008-CVI |
DV-8016-CVI |
||
System | |||||
Main Processor |
Embedded processor |
||||
Operating System |
Embedded LINUX |
||||
Video | |||||
Input |
4 channel, BNC |
8 channel, BNC |
16 channel, BNC |
||
Standard |
HDCVI |
1080P/720P HDCVI Camera |
|||
IP |
1080P/720P/D1/CIF IP Camera |
||||
Audio | |||||
Input |
1 channel, RCA |
||||
Output |
1 channel, RCA |
||||
Two-way Talk |
Reuse audio input/output channel 1 |
||||
Display | |||||
Interface |
1 HDMI, 1 VGA |
||||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
||||
Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
||
Privacy Masking |
4 rectangular zones (each camera) |
||||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||||
Recording | |||||
Video/Audio Compression |
H.264/G.711 |
||||
Resolution |
1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
||||
Record Rate |
Main Stream: |
1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
|||
Extra Stream |
CIF/QCIF(1~25/30fps), D1(1~12/15fps) |
||||
Bit Rate |
48~4096Kb/s |
||||
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
||||
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
||||
Video Detection | |||||
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips |
||||
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
||||
Playback & Backup | |||||
Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
||||
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
||||
Backup Mode |
USB Device/Internal SATA burner/Network |
||||
Network | |||||
Ethernet |
RJ-45 port (10/100M) |
||||
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
||||
Max. User Access |
128 users |
||||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||||
Storage | |||||
Internal HDD |
1 SATA port, up to 4TB |
||||
Auxiliary Interface | |||||
USB Interface |
2 ports(1 Rear), USB2.0 |
||||
RS485 |
1 port, For PTZ Control |
||||
General | |||||
Power Supply |
DC12V/2A |
||||
Power Consumption |
10W(without HDD) |
||||
Working Environment |
-10°C ~+55°C / 10%~90%RH / 86~106kpa |
||||
Dimension(W×D×H) |
Mini 1U |
||||
Weight |
1.5KG(without HDD) |
||||
All of items will be careful packaged before shipping, As below photo showed :
Shipping Way:
by sea /air / express
COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.
There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.
We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.
Fair
Certification if you need CE ROHS
