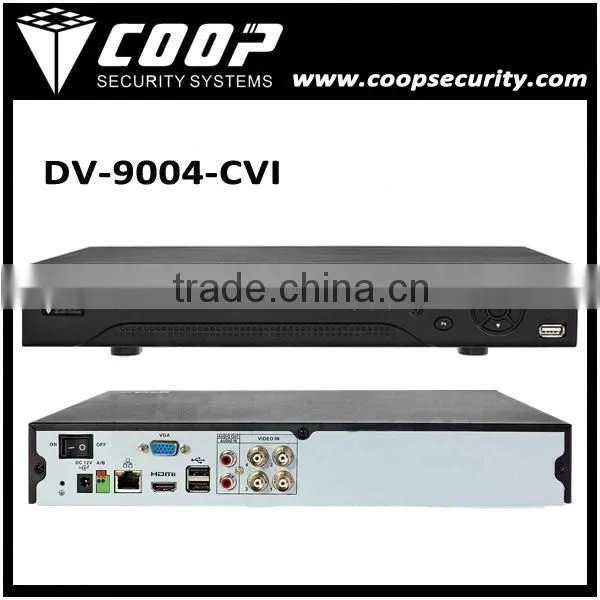

4 Channel Real Time Preview 1080P CVI DVR DMSS VMS H.264 Support Android iPhone IPad USB 2U 1080P 4CH CVR DV-9004-CVI
- Up to 4/8/16 cameras with 1080p realtime preview
- H.264 dual-stream video compression
- HDMI/VGA simultaneous video output
- Allchannel 720P realtime or 1080P non-realtime recording
- All channel synchronous realtime playback, GRID interface & smart search
- Support 1 SATA HDD up to 4TB, 2 USB2.0

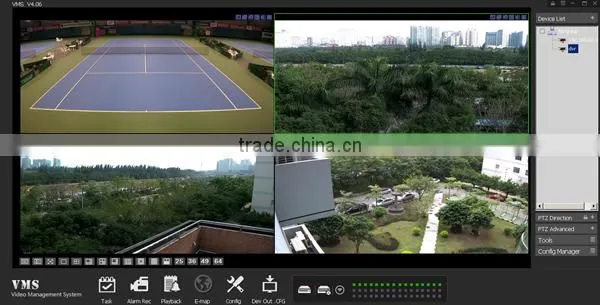

- Multiple network monitoring: Web viewer, VMS& DMSS
- Smart Phone iPhone, iPad, Android
- Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
2U 1080P 4CH CVR Specification:
Model |
DV-8004-CVI |
DV-8008-CVI |
DV-8016-CVI |
||
System | |||||
Main Processor |
Embedded processor |
||||
Operating System |
Embedded LINUX |
||||
Video | |||||
Input |
4 channel, BNC |
8 channel, BNC |
16 channel, BNC |
||
Standard |
HDCVI |
1080P/720P HDCVI Camera |
|||
IP |
1080P/720P/D1/CIF IP Camera |
||||
Audio | |||||
Input |
1 channel, RCA |
||||
Output |
1 channel, RCA |
||||
Two-way Talk |
Reuse audio input/output channel 1 |
||||
Display | |||||
Interface |
1 HDMI, 1 VGA |
||||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
||||
Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
||
Privacy Masking |
4 rectangular zones (each camera) |
||||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||||
Recording | |||||
Video/Audio Compression |
H.264/G.711 |
||||
Resolution |
1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
||||
Record Rate |
Main Stream: |
1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
|||
Extra Stream |
CIF/QCIF(1~25/30fps), D1(1~12/15fps) |
||||
Bit Rate |
48~4096Kb/s |
||||
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
||||
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
||||
Video Detection | |||||
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips |
||||
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
||||
Playback & Backup | |||||
Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
||||
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
||||
Backup Mode |
USB Device/Internal SATA burner/Network |
||||
Network | |||||
Ethernet |
RJ-45 port (10/100M) |
||||
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
||||
Max. User Access |
128 users |
||||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||||
Storage | |||||
Internal HDD |
1 SATA port, up to 4TB |
||||
Auxiliary Interface | |||||
USB Interface |
2 ports(1 Rear), USB2.0 |
||||
RS485 |
1 port, For PTZ Control |
||||
General | |||||
Power Supply |
DC12V/2A |
||||
Power Consumption |
10W(without HDD) |
||||
Working Environment |
-10°C ~+55°C / 10%~90%RH / 86~106kpa |
||||
Dimension(W×D×H) |
Mini 1U |
||||
Weight |
1.5KG(without HDD) |
||||

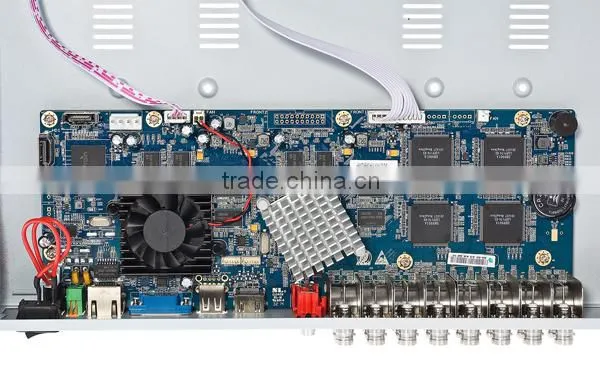

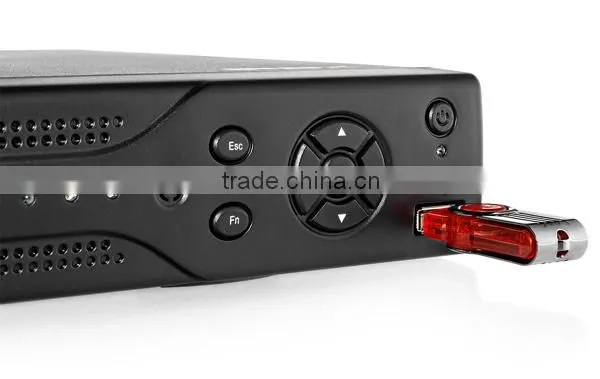

2U 1080P 4CH CVR Pictures:
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
