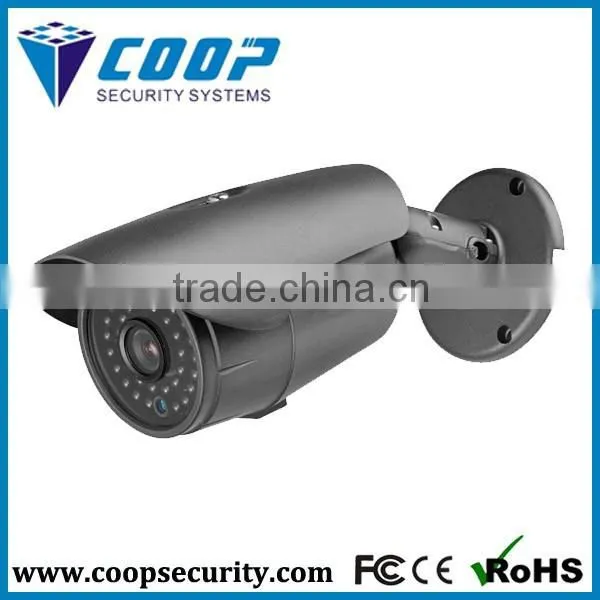

Economic 720P Vari-focal Lens HD CVI Camera System with 500m Transmission 2 year warranty

CVI-W720M3

Model

CVI-W720M3

Camera Solution

1/3"HDIS  720P with IR-CUT CMOS DH9801+PO3100K

Resolution

HD-CVI 720P

Lens

Built-in 3.6/6mm Fixed Lens

IR LED & Distance

36pcs/5pcs Black IR LED,IR Distance 30M,3 rotation gimbals design

Effective Pixels

1984(H)×1225(V)

Electronic Shutter

1/3s~1/100,000s

Mini. Illumination

 0.05Lux/F1.2(AGC ON), 0Lux IR on

Mount Type

F14

Noise Reduction

2D/3D

Video frame

25/30/50/60fps 720P; 25/30fps 1080P ;

Alarm

1 Channel in/out

Audio

1 Channel in

Heater

Optional

Video output

1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)

OSD

Support

Menu control

Exposure Mode

Whole exposure/Center photometry/Center weight photometry /BLC/ FLC /Feature exposure

White balance

AWB-GW/AWB-CCT/AWB-PRO/AWB-TEMPORAL/AWB-AI/AWB-SZ

Day/night switch

Auto/ B&W / color

Function Set

3D-NR

AF

Mirror/Language/system switch/software version function

Image adjustments

sharpen/contrast/saturation/reference brightness

Transfer distance

More than 500M with common 75-3 coaxial cable

Operating T&H

-30°C~+60°C / Less than 95%RH (no condensation)

Power supply

AC24V±10% / DC12V±10%

Power Consumption

 Max 7.4W
