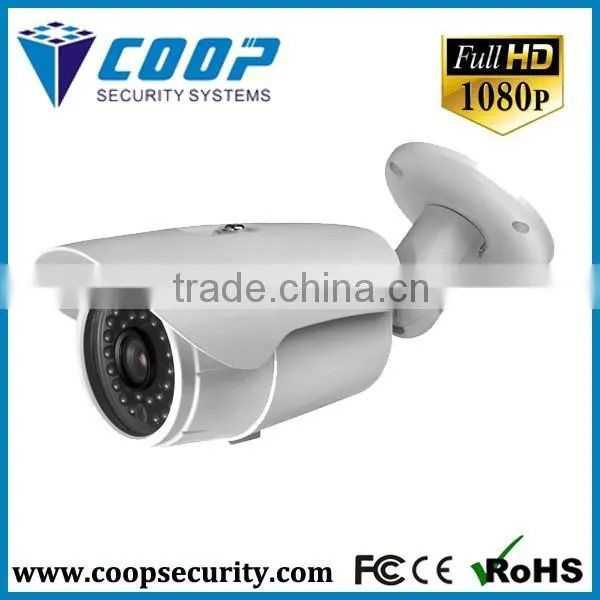

2015 New Product IR 20-30M 2 Megapixel Cmos 1080P HD CVI Camera CCTV Analog Camera

US$ 26 - 44 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Model Number:

CVI-W1080M3 CVI Camera

Type:

Analog Camera

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Model Number CVI-W1080M3 CVI Camera

Type Analog Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Vandal-proof

2015 New Product IR 20-30M 2 Megapixel Cmos 1080P HD CVI Camera CCTV Analog Camera

Product Description

CVI-W1080M3
Model		CVI-W1080M3
Camera Solution		1/3"HDIS 1080P with IR-CUT IMX222+DH9801+AVS05P
Resolution		HD-CVI 1080P
Lens		Built-in 3.6/6mm Fixed Lens
IR LED & Distance		36pcs/5pcs Black IR LED,IR Distance 30M,3-rotation gimbals design
Effective Pixels		1984(H)×1225(V)
Electronic Shutter		1/3s~1/100,000s
Mini. Illumination		0.05Lux/F1.2(AGC ON), 0Lux IR on
Mount Type		F14
Noise Reduction		2D/3D
Video frame		25/30/50/60fps 720P; 25/30fps 1080P ;
Alarm		1 Channel in/out
Audio		1 Channel in
Heater		Optional
Video output		1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
OSD		Support
Menu control	Exposure Mode	Whole exposure/Center photometry/Center weight photometry /BLC/ FLC /Feature exposure
	White balance	AWB-GW/AWB-CCT/AWB-PRO/AWB-TEMPORAL/AWB-AI/AWB-SZ
	Day/night switch	Auto/ B&W / color
	Function Set	3D-NR
	AF	Mirror/Language/system switch/software version function
	Image adjustments	sharpen/contrast/saturation/reference brightness
Transfer distance		More than 500M with common 75-3 coaxial cable
Operating T&H		-30°C~+60°C / Less than 95%RH (no condensation)
Power supply		AC24V±10% / DC12V±10%
Power Consumption		Max 7.4W
