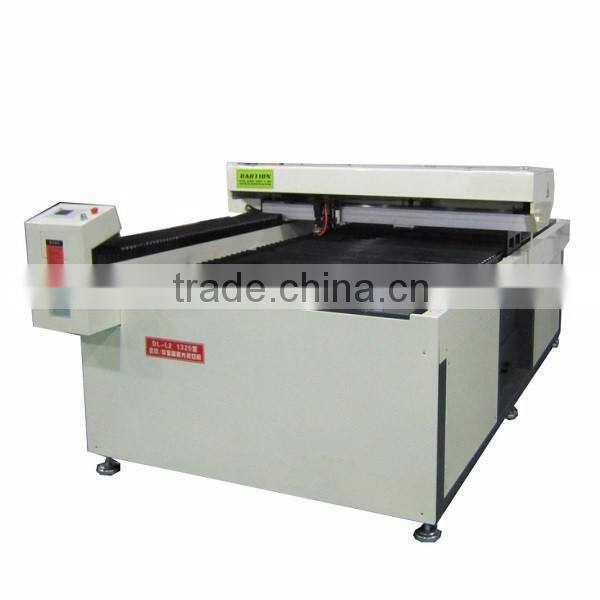

High power 150/260W laser metal nonmetal cutting machine
Features of laser metal nonmetal cutting machine :
1. Missile metal & nonmetal laser cutting machine adopting imported linear guides , all-round screw transmission with highest accuracy .
2. Servo motion system , processing , stable operation , low noise .
3. High power CO2 Laser tube , high light extraction efficiency , small spot , long time light extraction in very stable state .

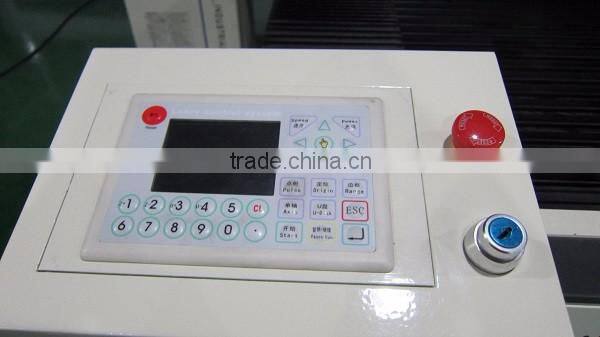

4. Using the color control system , diverse data transmission , easy to use , powerful functions , can be off-line or online .
5. Using the industrial refrigeration system to ensure the life of the laser , lower maintenance rate .
6. The unique design of untouched following system , consistent with the focal length of the beam , to ensure that the cutting surface of the gap is small and smooth .

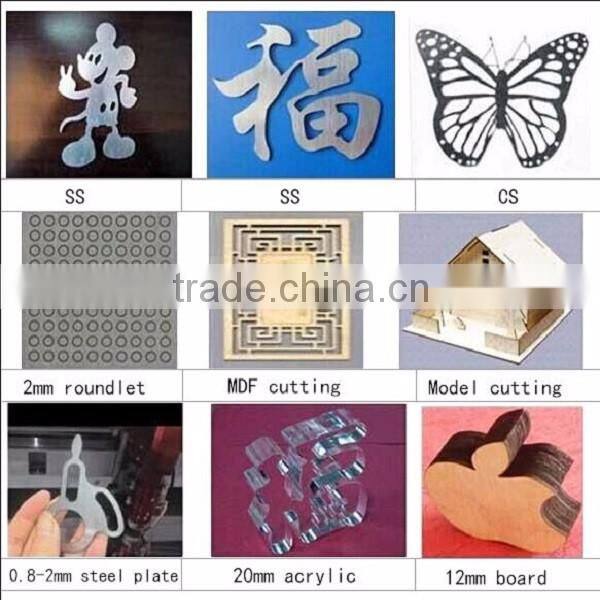

Applications of laser metal nonmetal cutting machine :
Metal cutting : Stainless steel , Carbon steel , Galvanized sheet etc .
Nonmetal cutting : Acrylic , MDF , Plywood , Wood , Leather etc .
Industry : Advertising , Cloth , Decration , Furniture , Craft gift industry .

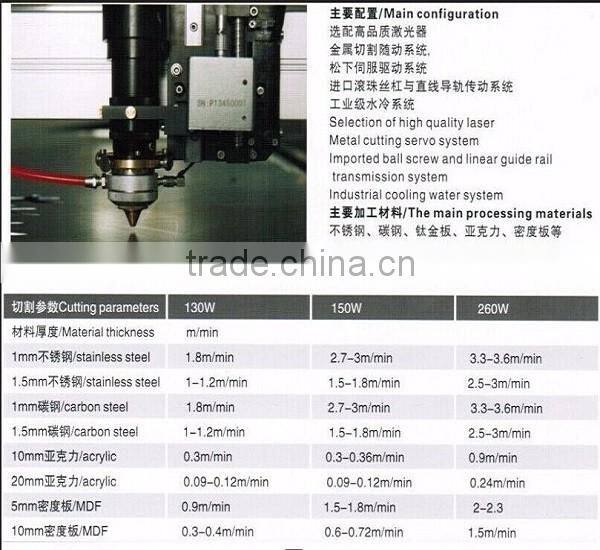

Cutting parameters |
150W |
260W |
320W |
||
Cutting gas |
Oxygen |
Oxygen |
Air |
Oxygen |
Nitrogen |
0.6mm stainless steel |
4-5.5m/min |
7-8m/min |
3-3.5m/min |
8-10m/min |
1.8-2.4m/min |
0.8mm stainless steel |
3.5-5m/min |
5-6m/min |
1.8-2.5m/min |
4.8-6.5m/min |
1.8-2.4m/min |
1.0mm stainless steel |
2.5-4m/min |
4-5m/min |
1.8-2.5m/min |
3.6-4.8m/min |
1.6-0.9m/min |
1.5mm stainless steel |
1.2m/min |
3-4m/min |
4-5.5m/min |
4-5.5m/min |
|
2.0mm stainless steel |
|
1-2m/min |
1.9-1.2m/min |
1.8-2.5m/min |
|
1.0mm carbon steel |
2-3m/min |
4-5m/min |
2.5-3.5m/min |
4.8-6m/min |
|
2.0mm carbon steel |
1.5-1.2m/min |
2-3m/min |
2.5-3m/min |
3.8-5.5m/min |
|
3.0mm carbon steel |
|
1-1.5m/min |
0.6-0.8m/min |
1.2-2.5m/min |
|
0.6mm galvanized sheet |
3-4.2m/min |
4.2-5.4m/min |
1.8-2.8m/min |
4.8-7.2m/min |
1.2-2.2m/min |
1mm galvanized sheet |
1.2-2.8m/min |
2.4-3.6m/min |
0.6-1.2m/min |
3.6-4.8m/min |
0.3-0.6m/min |
1.5mm galvanized sheet |
1.05-2.2m/min |
1.2-2.8m/min |
0.3-0.6m/min |
1.6-3.6m/min |
|
2mm galvanized sheet |
|
1.1-1.8m/min |
|
1.5-2.4m/min |
|
Cutting Gas |
Air |
Air |
Air |
|
|
10mm Acrylic |
0.3-0.3m/min |
0.6-0.8m/min |
0.9-1.2m/min |
|
|
20mm Acrylic |
0.1-0.15m/min |
0.12-0.24m/min |
0.18-0.26m/min |
|
|
30mm Acrylic |
|
0.06-0.15m/min |
0.08-0.25m/min |
|
|
40mm Acrylic |
|
0.03-0.12m/min |
0.04-0.15m/min |
|
|
5mm MDF |
1.5-1.8m/min |
1.8-2.4m/min |
2.2-2.8m/min |
|
|
10mm MDF |
0.72-1.1m/min |
0.9-1.5m/min |
1.1-1.8m/min |
|
|
