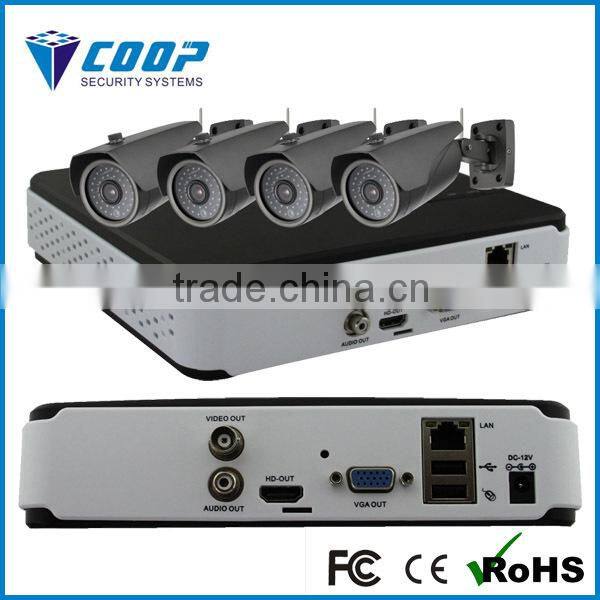

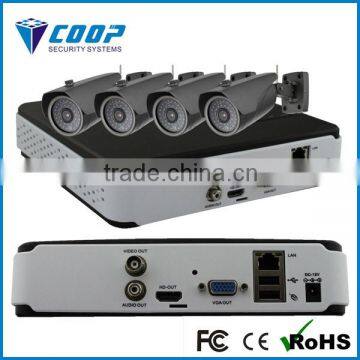

Security Excellent 1.0Megapixels 720P Outdoor WIFI IP Camera Economic Wireless Security Camera Set With Recording

Model

Kit model

HP-7604-WIFI

Style

Feature

720P WIFI NVR kit

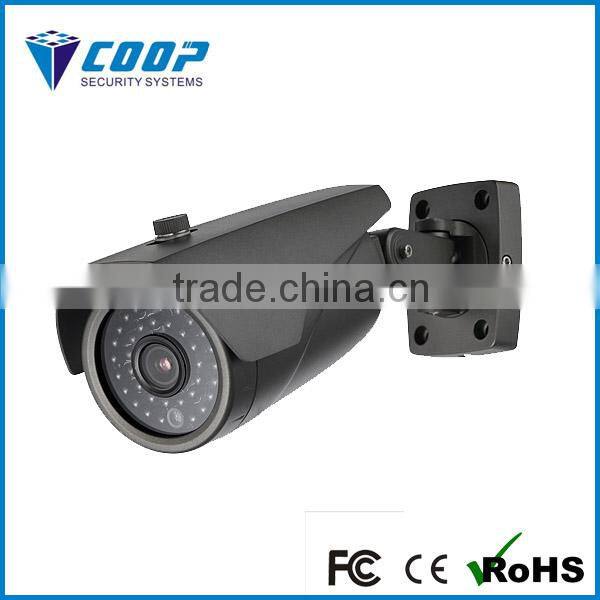

IPC specification:

System

System source

Embeded LINUX OS HI3518

Sensor

Sensor

1.0Mega Pixel, 1/4" progressive scanning CMOS

Illumination

Color:0.1 LuxF1.2,B/W:0 LuxF1.2(IR ON)  100W

     Lens

3.6mm mega fixed lens

Others

Video compression

H.264 High profile

Video code rate

1Mbps~6Mbps

Resolution

Main code stream:1280*720,704*576;Sub code stream:704*576,352*288

Standard

Waterproof level

IP67

IR distance

25-30M

Power supply mode

NVR POE

Communication mode

P2P

Dimension

191× 76 × 71 mm(color: white & Grey optional)

NVR specification:

System

System source

Embeded LINUX OS HI3515

System source

Simultaneously multi-record/playback/users/back-up

Interface

OS

16bit real color imaging OS menu, supporting moese

Image display

1/4 picture

Video

Input

4CH 720P(1280*720)

playback

960P/720P

monitor

VGA:HD;HDMI:HD

Motion detection

Support

Video playback

Recorde mode

Manual/dynamic detection/timing

Local playback

1CH playback

Record query

Timing/Calendar/Event/Channel query

Storge back-up

Record storage

HDD/network

Back-up mode

Network back-up/USB mobile mobile hard disk

Standard

Video output

1pc VGA,1 pc HDMI

1 pc BNC,1 pc VGA

Network interface

5pcs RJ45,10M/100M salf-adaption ethernet port, 4pcs supoorting POE

USB interface

2pcs USB interface

HDD interface

1pc  SATA interface(MAX 4T)

Power supply

DC15V/5A

Dimension

Black:215(L)x215(W)x45(H)mm;White:235(L)*205(W)*45(H)mm
