Help CenterH.264 D1 Standal Alone 16ch CCTV DVR
Related Products
Specifications
H.264 D1 Standal Alone 16ch CCTV DVRMulti-language OSD,
Email alarm
mouse, remoter controller
panel operating

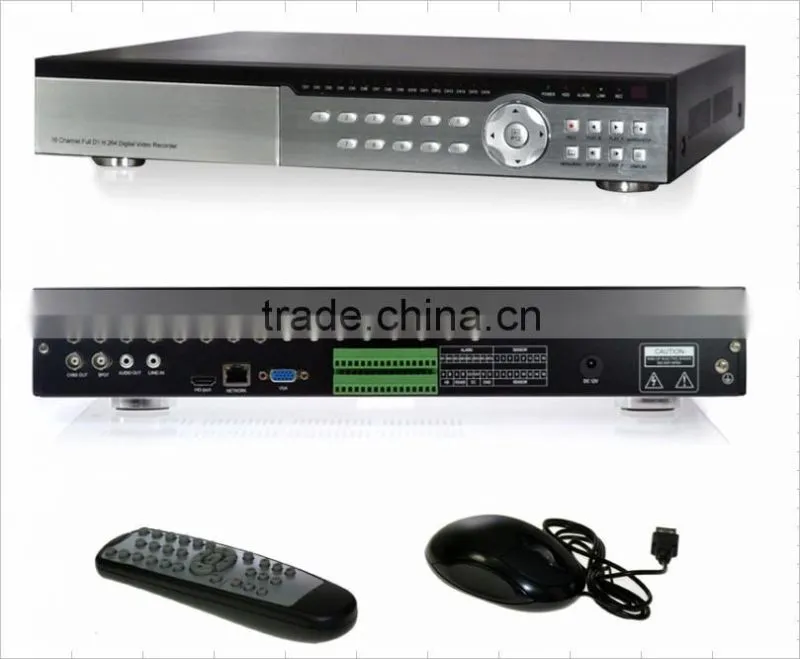

H.264 D1 Standal Alone 16ch CCTV DVR
1. Adopts the standard Main profile H.264 compression technology,D1 and CIF can be adjusted, supports 16ch recording, Network transmission, and playback simultaneously.
2. Support dual-stream transmission for all channels.
3. Support Multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance.
4. Support backup with USB Flash Disk, Movable hard disk, DVD writer, Network.
5. Support 1channel. Main output, 1channel. VGA output, 1channel HDMI(1920x1080).
6. Support video channel hidden and S.E.Q for single channel .
7. Support Digital Zoom in both live and playback ; PIP preview.
8. Support all channels playback at the same time.
9. Support Action with Alarm and pre-alarm recording function.
10. Support Email alarm.
11. Mobile phone surveillance (Win CE/Symbain/iPhone/Android/ Blackberry).
12. Support PTZ preset and Cruise Control.
13. Support Multi-language OSD.
14. Central management software and Networked system management.
15. Support mouse, remoter controller, panel operating.
Model |
HP-9816HD |
|
Operating System |
Embedded LINUX |
|
|
Video |
Video Compression |
H.264 |
Recording Resolution |
D1/HD1/CIF |
|
Frame Rate |
PAL:D1@25fps,HD1@25fps,CIF@25fps, NTSC: D1@30fps,Half-D1@30fps,CIF@30fps adjustable |
|
Image Quality |
5 levels |
|
Bit Rate |
64 kbps ~2048 kbps |
|
Audio |
Audio Compression |
ADPCM |
Bit Rate |
8 kbps |
|
Hard Disk |
Interface |
4 CH SATA 1CH E-SATA |
Capacity |
Max 2TB each HDD |
|
|
basic functions
|
Recording Mode |
Schedule, Manual, Alarm, Motion Detection, Schedule & Alarm |
Playback |
1/4/8/all playback simultaneously, search by time or by type |
|
backup |
USB flash drive / USB HDD/USB CD&DVD-RW/Built-in SATA burner/Network |
|
Alarm Trigger |
Buzzer, Alarm, Recording, PTZ movement, Email, channel pop-up |
|
PTZ control |
Support Preset point, cruise |
|
Digital zoom |
Live view digital zoom, playback zoom |
|
Channel Tour |
Support |
|
Multi-language OSD |
Support |
|
|
network |
Network mode |
Support PPPOE, static IP, DHCP, 3G |
Web browser |
Support Windows platform IE6 - IE9, Chrome, Firefox, Opera, Safari, etc |
|
Client software |
Support Windows platform Client software |
|
CMS |
Support Windows platform CMS |
|
Mobile Surveillance |
Support iPhone, Android, Symbian, Blackberry, Windows Mobile OS |
|
DDNS |
Build-in special DDNS and third-party DDNS(dyndns, no-ip, changeIP, etc) |
|
Dual Stream |
Main stream ,Sub stream(32 kbps – 1.5 mbps) |
|
|
Input Output interface |
Video input |
16CH, BNC(1.0Vp-p, 75Ω) |
|
Video output |
1 CH, BNC (1.0Vp-p, 75Ω), 1 CH, Spot 1 CH, VGA (1280×1024, 1024×768, 800×600) 1 CH, HDMI (1920x1080) |
|
Audio input |
16 CH, RCA,1 CH, intercom |
|
Audio output |
1 CH, RCA |
|
Alarm input |
16CH , Switch |
|
Alarm output |
4CH , Switch |
|
Network |
1 CH, RJ-45 100/1000M Ethernet interface |
|
Serial Interface |
1 CH, RS485 PTZ (A B - G) |
|
USB |
2 CH, USB interface |
|
Remote control |
support |
|
|
Other |
Power Supply |
DC 12V/6A |
Power Consumption |
< 20W (without HDD) |
|
Working Environment |
-10°C-+60°C, 10%-90%RH |
|
Dimension |
430(W)*345(D)*66(H)mm,1.5U |
|
ABOUT US:
* We usually accept payment by T/T ( bank transfer).
* Packages will be shipped after we receive your payment.
* Welcome OEM & ODM order,MOQ for OEM is 50pcs/model.
* 2 Years of warranty for CCTV cameras & DVRs, 1 year for PTZ Cameras.
* More details, please contact our sales for infomation.
Certificates:

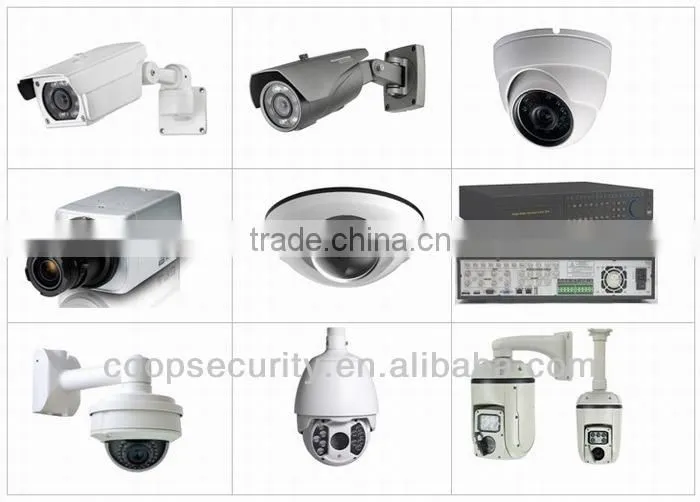

More Products:
