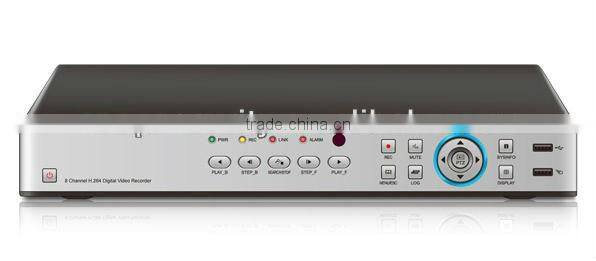

CCTV 8CH Standalone D1&CIF H.264 DVR

Name: CCTV 8CH Standalone D1&CIF H.264 DVR
Brand: COOP Security
SKU: 103882041
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP Security

Model Number:

HP-9608DH

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP Security

Model Number HP-9608DH

Specifications

H.264 8CH DVR
Mouse, remote controller operating
Multi-language OSD
1channel BNC output, 1channel.VGA output
PTZ Control

CCTV 8CH Standalone D1&CIF H.264 DVR

Model No.: HP-9608DH

1. Adopts the standard Main profile H.264 compression technology, supports 4ch D1&CIF recording, Network transmission, and playback simultaneously

2. Support dual-stream transmission for all channels

3. Support Multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance

4. Support backup with USB Flash Disk, Movable hard disk, USB writer, Network

5. Support 1channel BNC output, 1channel. VGA output

6. Support Email alarm

7. Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry)

8. Support PTZ Control

9. Support Multi-language OSD

10. Supports mouse, remote controller operating.

Model No.
Main Function
Operating system	Embedding Linux OS
Video Compression Format	Main Profile H.264
Video Input	8Channels BNC
Video Output	1 Channel BNC, 1 Channel VGA, 1 Channel HDMI(1920*1080P)
Audio Input/Output	8 CH RCA/1CH RCA
Display Picture	1/4/8CH PIP/ZOOM
Multiplex Operation	LivedisplayPlaybackRecordingBackup Mobile phone Surveillance Network simultaneously
Display Resolution	PAL:D1(704576),NTSC:D1(704480)
Recording Mode	ManualTimerMotion DetectionRemote
Recording Frame Rate	PAL:D1@100fps,HD1@100fps,CIF@100fps NTSC:D1@120fps,HD1@120fps,CIF@120fps
Recording Resolution	PAL:D1(704576),HD1(704288),CIF(352288) NTSC:D1(704480),HD1(704240),CIF(352240)
Recording Playback	1/4/8CH Playback
Alarm in/Out	8CH/1CH (Optional)
Recording Backup	USB,Moved Hard Disk.Network
Recording Play	Special player
Email Alarm	Send pieces to the designated email
PTZ protocol	PELCO-D,PELCO-P
HDD	Support 1 SATA HDD, capacity to 2TB
HDD Remain Time Hint	Support
Network and Protocol	RJ-45 10/100M via Ethernet, Support TCP/IP,PPPOE,DHCP,DDNS
IE Browser	Windows XP/Vista/Win 7/Mac OS,IE6.0-9.0/Firefox/Chrome/Opera/Apple Safari
Client Software/CMS	Support(One software for at most 200 DVRs),Mac O.s
Dual Stream	Support(Main and secondary interchange)
Multi-language	Support
Mobile Phone Surveillance	Support Windows Symbian iPhoneBlackberry Operation System
Mouse Interface	USB2.0
Backup interface	USB2.0
Remoter Controller	Support
Power	DC12V/3A
Working Temperature	-10°C-60°C
Working Humidity	10%-90%
Size	35423045mm(LDH)
