Injection Molded R&D Products
Inspiring, new product ideas are everywhere for R&D-minded companies and entrepreneurs. Taking those ideas and turning them into reality is also one of Yixun's inspirations.
Our team has the design knowledge, engineering experience needed to bring your injection molded concepts to life. From co-development of R&D products, through full plastics production, yixun Molded Plastics is committed to providing the highest quality products and services the first time, on-time.
Why bring your R&D project to Yixun?
Production Quality Prototypes - YX can develop prototype tools that are effective, low-volume production tools
Melt Flow Analysis - YX’s design specialists can use simulation software to optimize the product design and manufacturing process before the first piece of steel is cut, which reduces the time needed to condition the mold and speeds the product to market
- In-Process Monitoring - YX is using the latest in process monitoring systems and pressure sensing technology to ensure consistency, maximum up-time and quality in the production line
- Integrated Assembly, Automation and Packaging - YX Molded Plastics excels at finding innovative ways to assemble, automate, sort by cavity ID, and package finished products to reduce costs and build value into the production process
- Secondary Services - YX will gladly evaluate and offer solutions that meet your needs for special processessuch as de-burring, post-curing, or sonic weldingVV

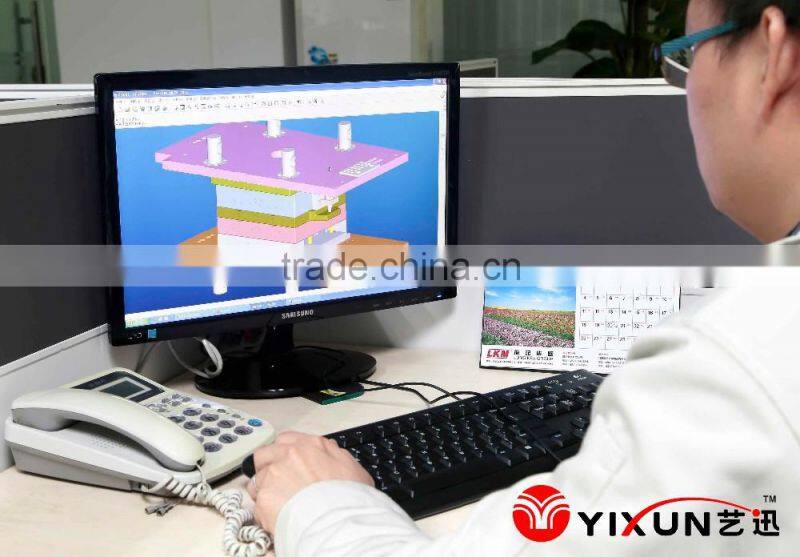

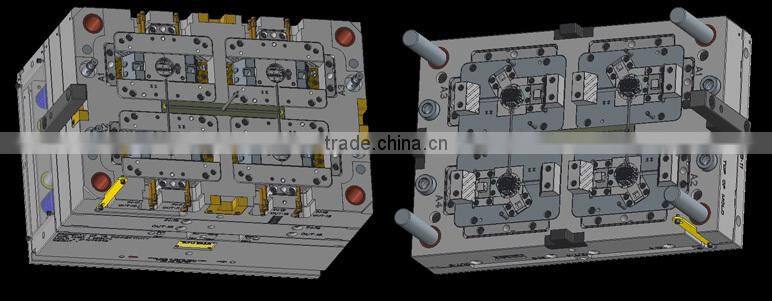

Mold Design Resources and Tools at Yixun
Our design team at yixun Molded Plastics uses project management fundamentals throughout the design process to document customer specific requirements and integrate them into the mold product design. Using parametric fundamentals of design, the team creates tool design models that have complete associativity throughout all of the different components of an assembly. Some of our design tools and resources include:
Primary CAD Software
PTC (Creo 2.0 or earlier)
Siemens (NX 8.0 or earlier)
Primary CAM Software
Pro/NC for high-speed precision machining of cores/cavities and electrodes
DP Esprit for CNC wire EDMs
Design and Engineering Experience
Shuttle and insert molds
Face-mounted, quick-change tooling
Expandable and interchangeable tooling
Multiple slide action molds
Stripper and floating cavity plate molds
Hot runner system
Unscrewing molds
Sending file for quotation :
Engineering File Preparation
Yixun Molded Plastics provides design assistance, engineering services and complete project management for precision injection molded plastics products through out the design, custom mold build, plastics production and often includes other value added services. If you have an idea or a project that you would like to see take shape contact our team today!
RFQ File Formats
Pro /Engineer (Wildfire 3 or earlier)
Unigraphics (NX3 or earlier)
Parasolids
STEP
IGES
DXF
AutoCAD (Rev.14)
If available, please include:
- 3D engineering file and/or 2D print
- Resin type and color
- Type of finish
- Anticipated yearly part volume(s)
For Mold Making:

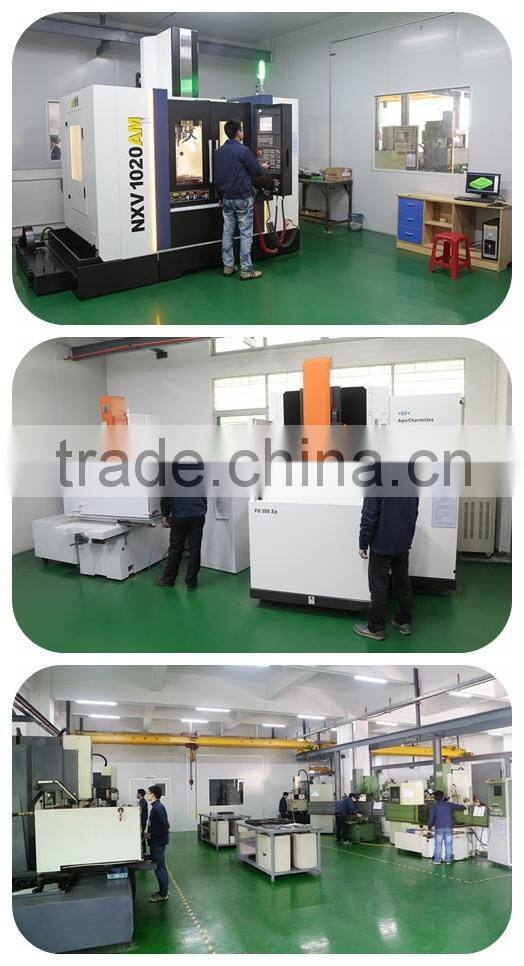

Latest Equipment List:
Name |
Brand/ Model |
QTY |
Vertical Machining Center |
(YOUKANG)YK-1060 |
1 |
Vertical Machining Center |
(YOUKANG)YK-850 |
2 |
CNC Engraving Machine |
(YOUKANG)YK-560 |
1 |
Milling Machine |
CYX |
4 |
Milling Machine |
LITE |
4 |
Milling Machine |
TOPONE |
3 |
Dring |
Z3132H |
3 |
E.D.M |
(LITE)ZNC-650 |
3 |
E.D.M |
(LITE)ZNC-540 |
3 |
E.D.M |
(LITE)ZNC-430 |
2 |
E.D.M |
TOPONE |
3 |
Lathe |
CQ1237A |
1 |
Big grinder |
M7132B |
2 |
Wire Cut Machine |
SANGUANG |
6 |
Grinder |
(KENT)KGS-618M3 |
4 |
2D Measurement |
EASSON |
1 |
80T injection machine |
(CREATOR)CI-80 |
1 |
80T injection machine |
(EASYMASTER)EM80-V |
1 |
80T injection machine |
JIADA-80 |
2 |
98T injection machine |
(CHENHSONG)JM98-Ai |
3 |
160T injection machine |
(CD)-CJ160M5 |
2 |
250T injection machine |
EA250-A ELite |
2 |
350T injection machine |
TMC |
1 |
Gas-assisted Injection Moulding |
|
1 |
We also good at produce all kinds of plastic product as your customised Mould.

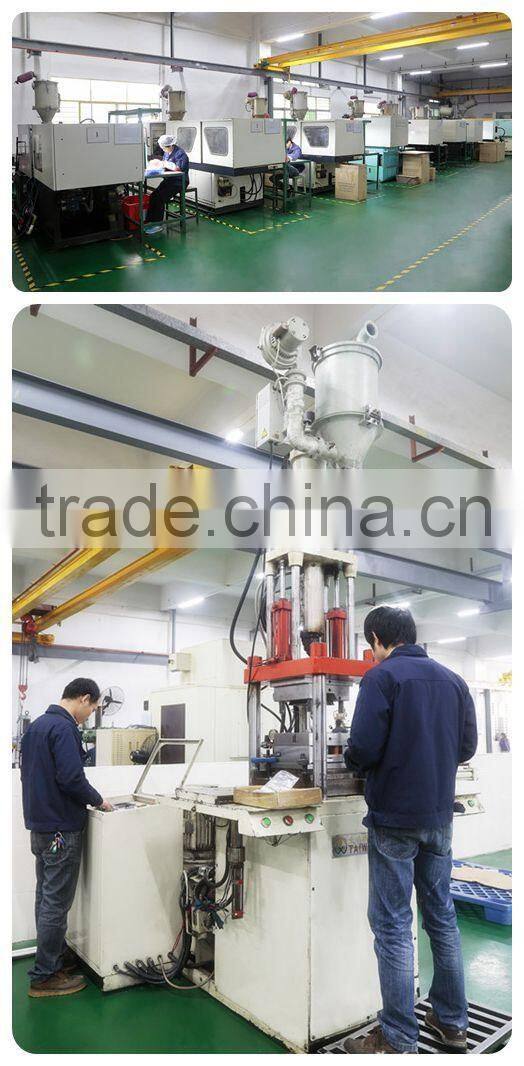

Injection Equipment:
Choosing the Best Resin for Your Part
The success of innovative design and engineering rely on choosing the right material for your project. Our specialists at Yixun Molded Plastics have the knowledge around the nuances of the various engineering resins available. We will guide you in choosing an appropriate resin that will result in a quality and effective injection molded plastic product.
PPS (Polyphenylene Sulfide)
Examples – Ryton, Fortron
Aviation and electronics high-temp environments
- Stability for temp changes
- Tolerancing in steel is critical for close-tolerance molded product
- Very tight process window
- Stringent PM guidelines on molds and screw and barrel
- Thick/thin wall variation can be molded together, but requires adequate design for manufacturing analysis with moldflow and fill simulation technology
- Highly susceptible to flash
- Medical, healthcare, sporting goods
- Extremely pliable Shore A 00 Durometer requires non-typical molding press screw design and processing standards
- Part-removal and ejection techniques are non-standard for mold build and may require automation or operator assistance
TPE (Thermoplastic Elastomer)

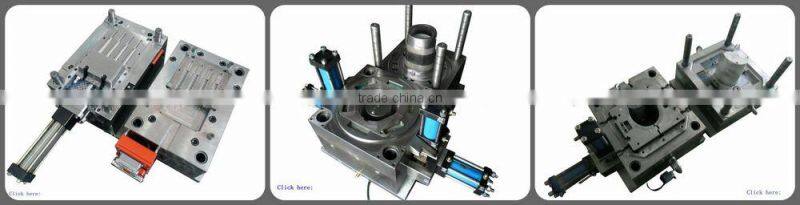

2: Professional Mould Manufacture:
Since established in 1998,YIXUN Mould has manufactured thousands of sets of Moulds,including various parts with structure and material,mainly for anyomative parts and electrnic&electric components
Total Quality Management
3D Measurement of mold parts checking
YIXUN QC procedure:
1: Part mold draft analysis,
2:Mold design control,
3:steel hardness inspection,
4:Dimension inspection of electrode cavity and core,
5:Mold trial report and inspection report
6:Shipment inspection
We always say the warmest welcome to all friends from all over the world.
Client feedback
