China Advertising CNC Router Machine Pricefor Wood Carving Aluminum Metal Cutting
Give each CNC an Honorable identity

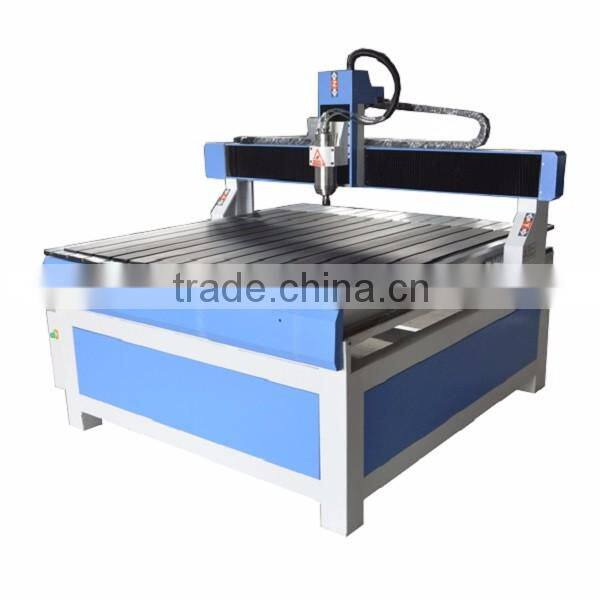

China Advertising CNC Router Machine Price
* Imported linear guiding system 20mm, with strong carrying capacity, stable running, high precision,and long life.
* Z-axis adopt imported ball screw, equip with standard lubricating oil system, which ensure the Advertising cnc router machine last longer.
* Selecting high-power water-cooled motor and high performance , frequency converter , make with good performance big torque , high working efficiency .
* software with best capacity,
* compatible with Type3/Art cam/CAXA/UG/Pro-E/Master cam/Art grave,etc.
Model: |
MS-1313A |
Machine body: |
welded machine frame |
X,Y-axis working area : |
1300*1300mm |
Z-axis working area: |
200 mm |
Max. Speed: |
25000mm/min |
Working speed : |
0-15000mm/min |
Mechanical precision: |
0.04mm/300mm |
Compatible Software: |
Artcam |
Power source: |
AC 220v(50HZ)/380v(60HZ) |
Driver type |
stepper motors 450B& lead shine drivers M860 |
The transmission: |
Rack and gear drive on X/Y axis; TBI ball screw drive on Z axis |
Guideway |
HIWIN 20 square linear rails |
Spindle: |
3.0KW water cooling spindle |
Spindle speed: |
0~24000rpm |
Blade diameter: |
3.175mm/4mm/6/8/12.7mm |
Control system: |
3 axis DSP control system |
Command: |
G code (uoo.mmg.plt.) |
Running circumstance temperature: |
0-45°C |
Relative humidity: |
30%-75% |
Other Optional machine parts |
Dust collector Oil injection device Vacuum Worktable |
China Advertising CNC Router Machine Price for Wood Carving Aluminum Metal Cutting

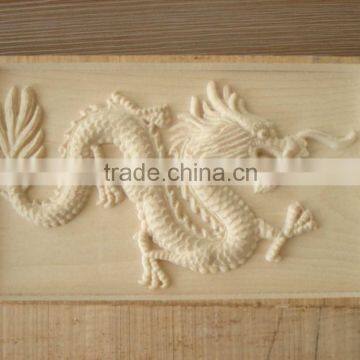

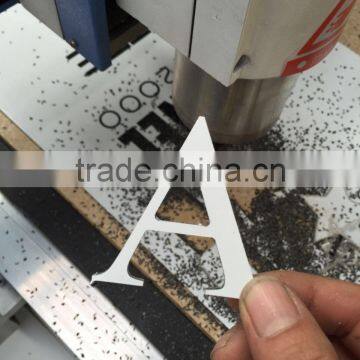

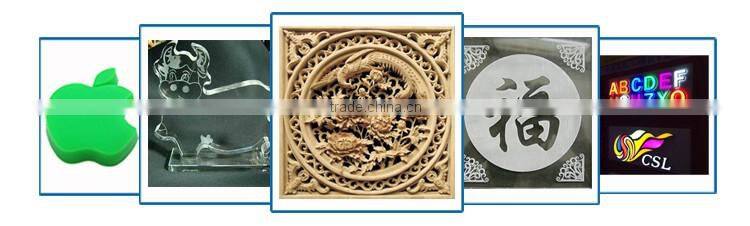

Suitable work : Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB Aluminum sheet etc.
Suitable work : Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB Aluminum sheet etc.
Advertising CNC Router Machine
*The main parts exclude consumables shall be changed free of charges if any problem during the warranty period
* Whole lifetime maintenance free of charges.
*Our engineer can be assigned to your country for testing and training as per your requirements. (Customer is responsible for round tickets, food and accommodation,etc).
For offer the most suitable machine with favorable price, would you like to confirm below questions:
======================================
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
======================================
After your return comments, we will send you more information about the machine along price . Thanks.
Welcome to Visit Our Company !!
Invites Agent from All Over the World !!
Please contact me for more information
Send Inquiry to This Supplier
