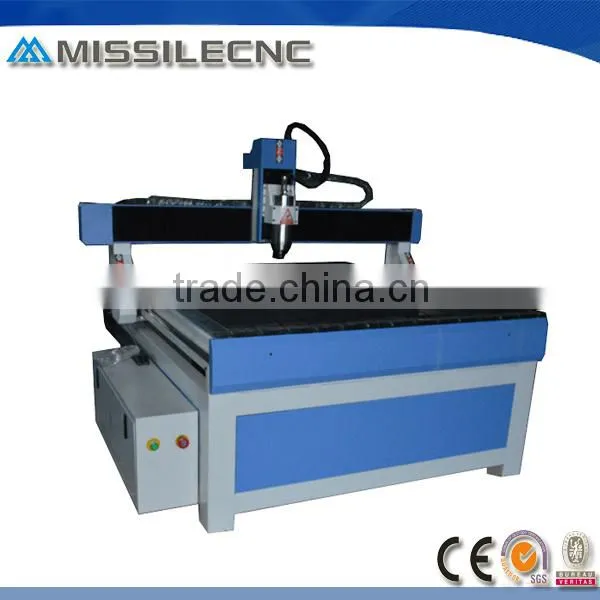

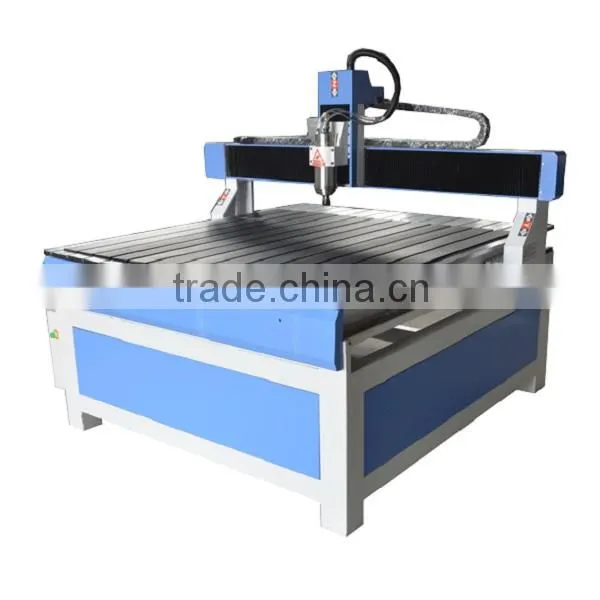

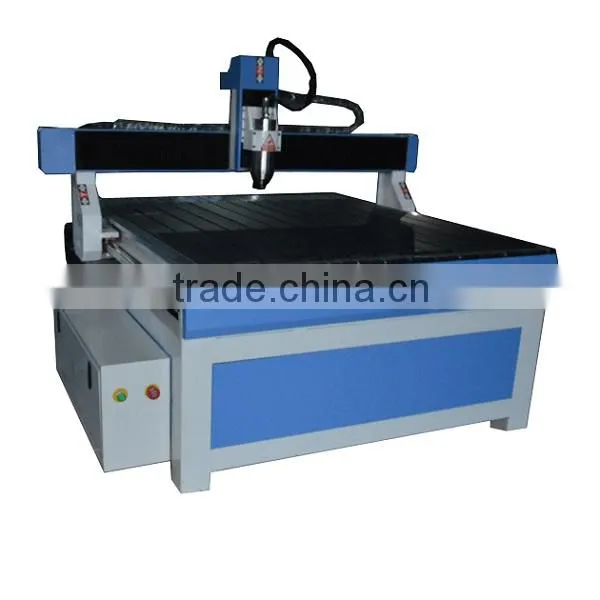

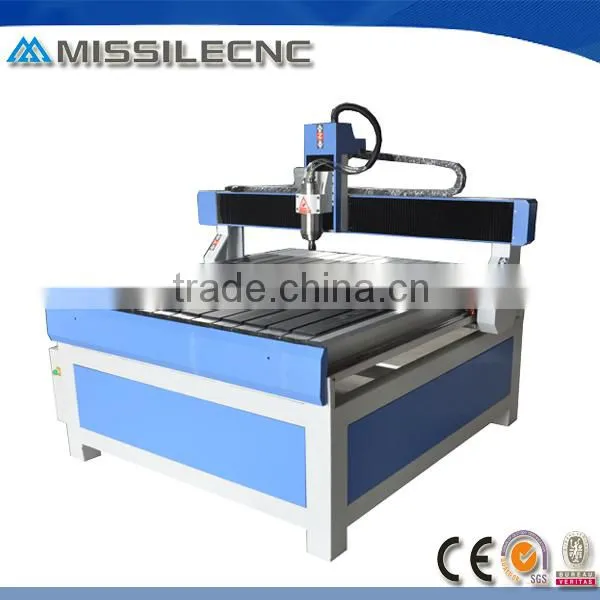

High precision Chinese mini 1212 wood cnc router machine
1212 wood cnc router machine for signage is our professional mini wood cnc router machine. With square pipe welded structure, air-cooling spindle, DSP controller, servo motor and driver, dust suction system etc.1212 wood cnc router machine is equiped with thick square tube welded lathe bed, aluminum T-slot table. Our cnc router machine price is reasonable due to no limited by the number of processing , special advantage for small quantity processing .
Technical paremeters of 1212 wood cnc router machine :
Model: |
MS-1212A |
Machine body: |
welded machine frame |
X,Y-axis working area : |
1200*1200mm |
Z-axis working area: |
120 mm |
Max. Speed: |
25000mm/min |
Working speed : |
0-15000mm/min |
Mechanical precision: |
0.04mm/300mm |
Compatible Software: |
Artcam |
Power source: |
AC 220v(50HZ)/380v(60HZ) |

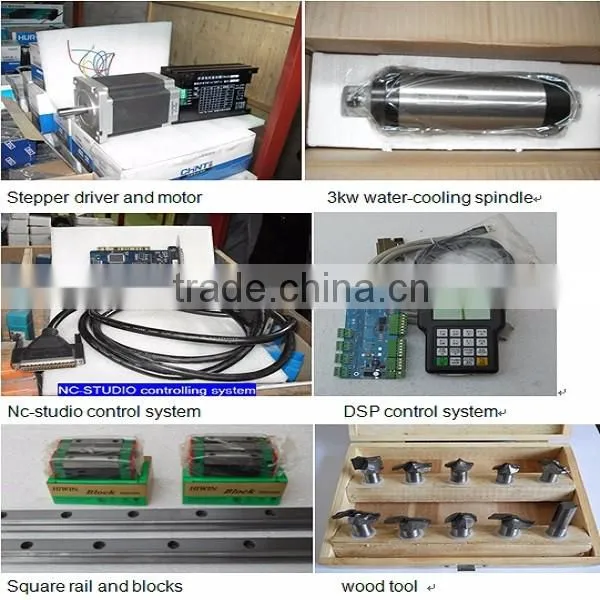

Driver type |
stepper motors 450B& lead shine drivers M860 |
The transmission: |
Rack and gear drive on X/Y axis; TBI ball screw drive on Z axis |
Guideway |
HIWIN 20 square linear rails |
Spindle: |
3.0KW water cooling spindle |
Spindle speed: |
0~24000rpm |
Blade diameter: |
3.175mm/4mm/6/8/12.7mm |
Control system: |
NC Studio / (Option : 3 axis DSP control system ) |
Command: |
G code (uoo.mmg.plt.) |
Running circumstance temperature: |
0-45°C |
Relative humidity: |
30%-75% |
Other Optional machine parts |
Dust collector Oil injection device Vacuum Worktable |
Features of 1212 wood cnc router machine :
1.Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.
2.High power water cooling brushless motor, big power cutting capability, durable use.
3.High speed drive and stepper motor could enhance work efficiency.
4.Well designed dust and water proof device ensure the machine easy maintenance.
5.Advanced in CNC industry, break-point memory pointes for 10pcs, reducing material waste.
6.High compatibility, applicable for CNC software: type3 ARTCAM, Cast mate, pore, WENTAI, variable, CAD/CAM etc. It is easy to process relief sculpture, shadow carving, three dimension characters in fancy style etc.
Main applications of 1212 wood cnc router machine :
Acrylic, PVC board, MDF board and other board’s processing, Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
