Specifications
1. ISO90012.Wire dia: 0.5-4.8mm
3.Mesh: 3-60 mesh
4.Weight: 1.4-20 kg/m2
5.Type: Hooked and flat sides

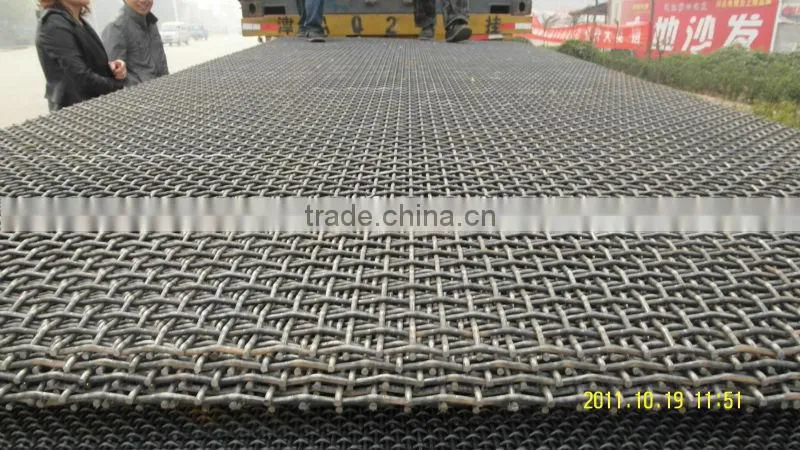

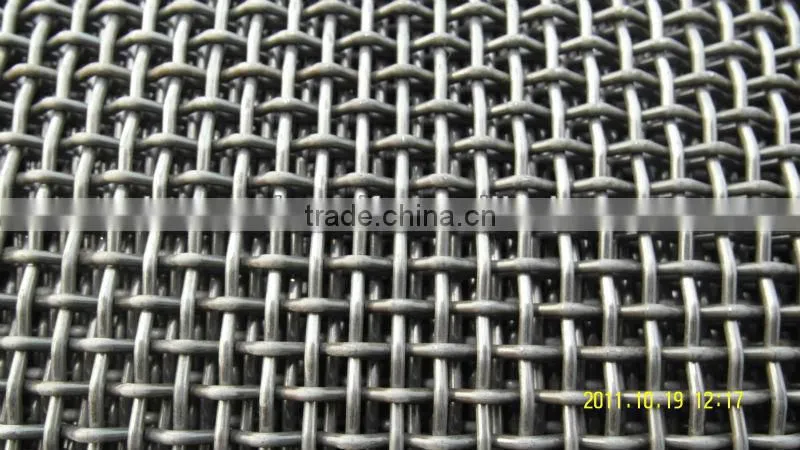

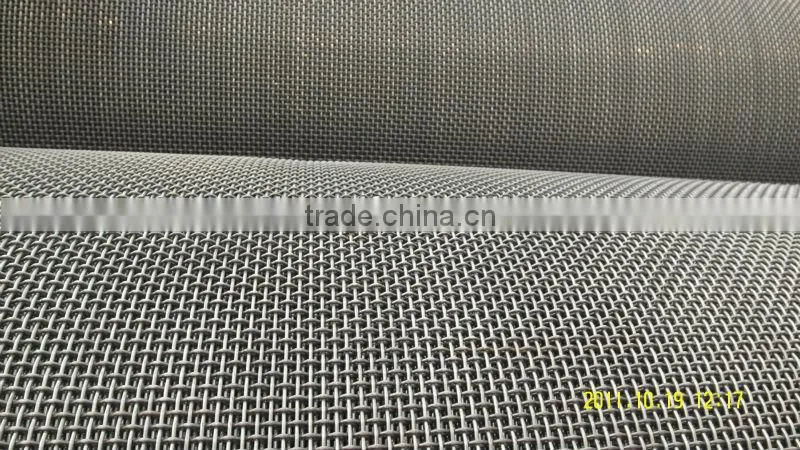

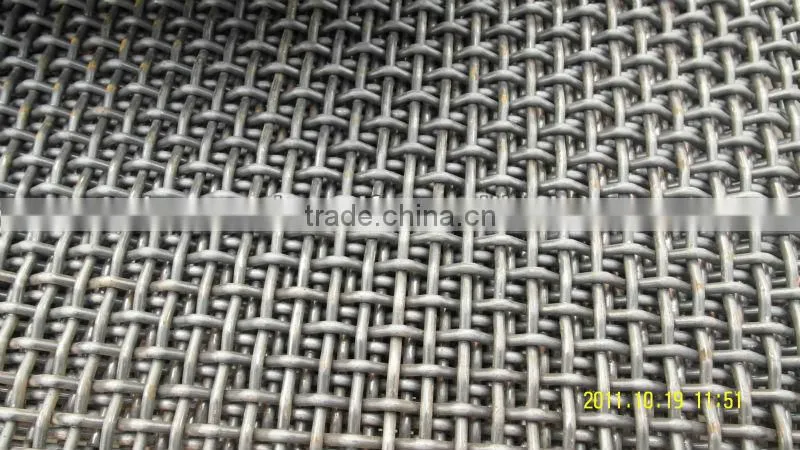

Mine Screen
Mine Screen is also caiied sieve screen, Mine sieving mesh ,Vibrating screen cloth,Oil Vibrating Sieving Mesh,Crimped wire mesh ,we are professional factory in mine screen for 21years
Wire dia: 0.5-4.8mm
Mesh: 3-60mesh Aperture: 0.1-1.5mm
Weight: 1.4-20 kg/mm^2
Material: High carbon steel wire, High tensile steel wire, Spring steel wire,Mild steel wire, SS wire, GI steel wire, Manganese Steel wire ect
Weaving and Characteristics:rimped first then weaved, two-way alternate-bending, bending engaged upon, flattened bending, two-bending, bending wave at one-way.
Uses: Widely used in coal and mining industry, construction, filtering sand, filtering liquid and gas, also can be used in protection of mechanical annex.Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.

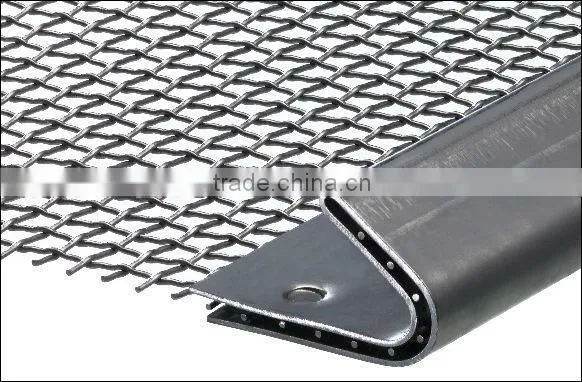

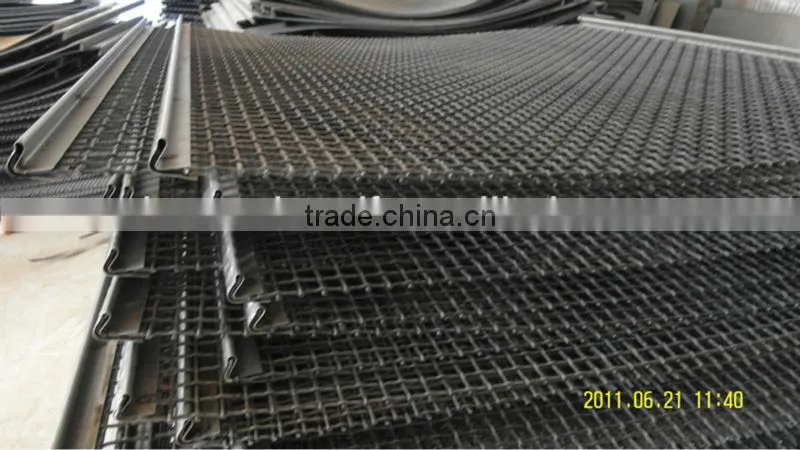

Type: Hooked and flat sides
Tensile length of the wire: 1200MpA
Thickness (wire diameter) :1.6mm -12.7mm
Opening: 5mmx5mm, 8mmx8mm, 10mmx10mm, 15mmx15mm, 18mmx18mm, 20mmx20mm, 40mmx40mm etc
Available specifications :5mm x 5mm x2mm, 8mm x8mm x 3mm, 10mm x 10mmx3mm 15mmx15mm x3.6mm ,18mmx18mmx5mm ,20mm x 20mm x 5mm, 40mmx40mm x 6mm
Specifications:
Wire Gauge (BWG) |
Aperture Size ( mm) |
Wire Dia. ( mm) |
Weight(Kg/ m2) |
8 |
30 |
4.06 |
6.00 |
8 |
25 |
4.06 |
7.00 |
8 |
20 |
4.06 |
8.00 |
8 |
15 |
4.06 |
1.00 |
8 |
12 |
4.06 |
13.00 0 |
8 |
10 |
4.06 |
15.00 0 |
10 |
30 |
3.25 |
4.00 |
10 |
25 |
3.25 |
4.70 |
10 |
20 |
3.25 |
5.80 |
10 |
15 |
3.25 |
7.40 |
10 |
10 |
3.25 |
10.00 0 |
12 |
30 |
2.64 |
2.70 |
12 |
12 |
2.64 |
3.20 |
12 |
20 |
2.64 |
3.90 |
12 |
15 |
2.64 |
5.00 |
12 |
10 |
2.64 |
7.00 |
14 |
20 |
2.03 |
2.38 |
14 |
15 |
2.03 |
3.10 |
14 |
12 |
2.03 |
3.70 |
14 |
10 |
2.03 |
4.35 |
14 |
8 |
2.03 |
5.22 |
14 |
6 |
2.03 |
6.52 |
14 |
4 |
2.03 |
8.68 |
14 |
3 |
2.03 |
10.40 0 |
16 |
15 |
1.63 |
2.03 |
16 |
10 |
1.63 |
2.90 |
16 |
8 |
1.63 |
3.50 |
16 |
6 |
1.63 |
4.40 |
16 |
4 |
1.63 |
5.99 |
18 |
12 |
1.22 |
1.43 |
18 |
10 |
1.22 |
1.68 |
18 |
8 |
1.22 |
2.05 |
18 |
6 |
1.22 |
2.62 |
18 |
4 |
1.22 |
3.62 |
18 |
3 |
1.22 |
4.48 |
20 |
12 |
0.91 |
0.82 |
20 |
10 |
0.91 |
0.96 |
20 |
8 |
0.91 |
1.18 |
20 |
5 |
0.91 |
1.78 |
20 |
4 |
0.91 |
2.15 |
20 |
3 |
0.91 |
2.69 |
