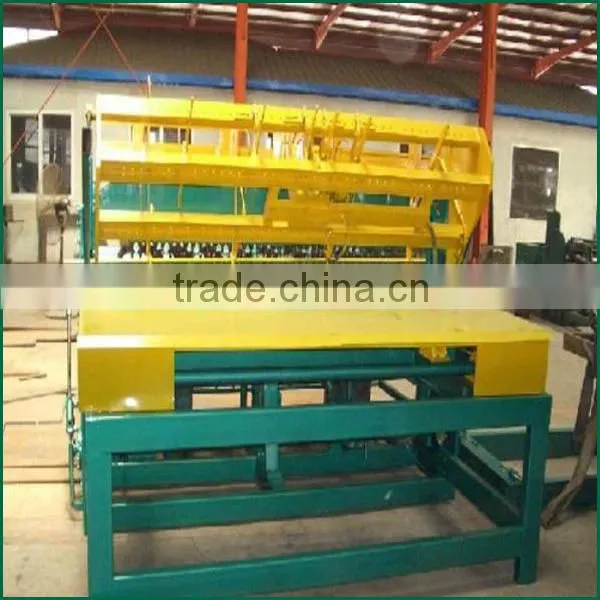

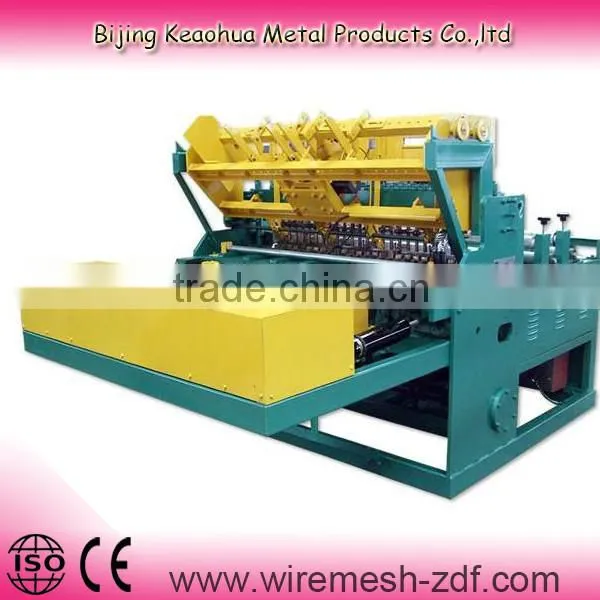

Automatic Wire Mesh Welding Machine

Automatic Wire Mesh Welding Machine photo-1
Automatic Wire Mesh Welding Machine photo-2

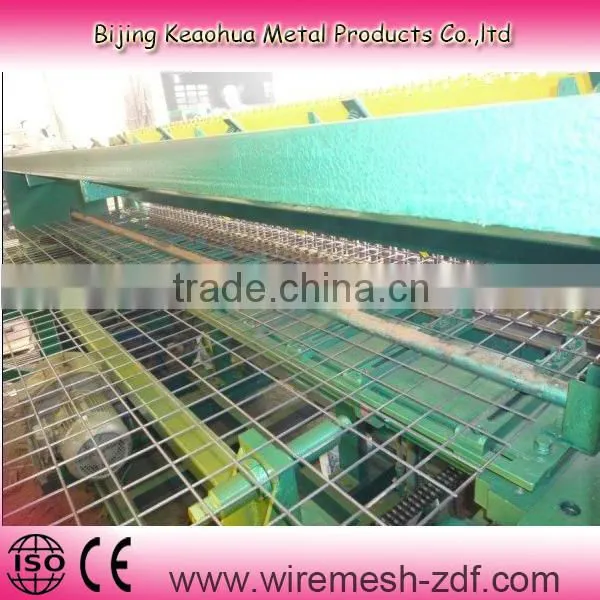

Automatic Wire Mesh Welding Machine photo-3
Automatic Wire Mesh Welding Machine photo-4
Automatic Wire Mesh Welding Machine photo-5
US$ 10,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
KAH
Model Number:
KAH0903
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name KAH
Model Number KAH0903
After-sales Service Provided Engineers available to service machinery overseas

Automatic Wire Mesh Welding Machine







Product Description



   Automatic Wire Mesh Welding Machine







1. Welded Wire Mesh Machine Raw Material :

Galvanized iron wire, black iron wire, Stainless Steel wire



2.Welded Wire Mesh Machine Characters:

Automatically feeding wire more quickly back and forth, low noise, higher stability and saving electricity



   Automatic Wire Mesh Welding Machine



   Automatic Wire Mesh Welding Machine





3.Welded Wire Mesh Machine Types:

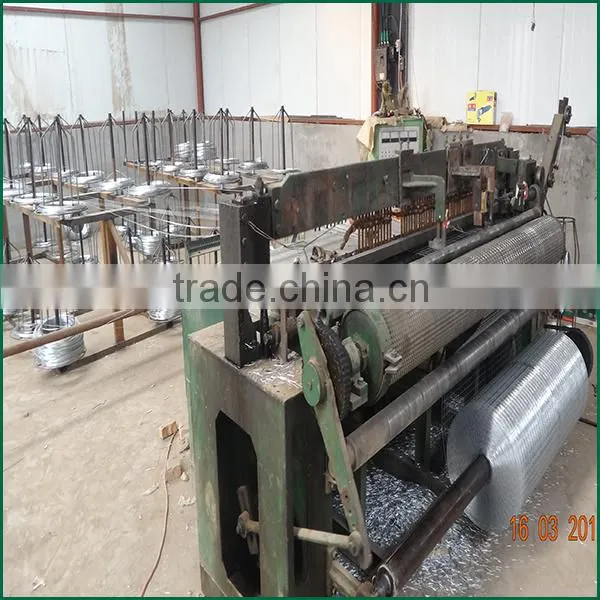

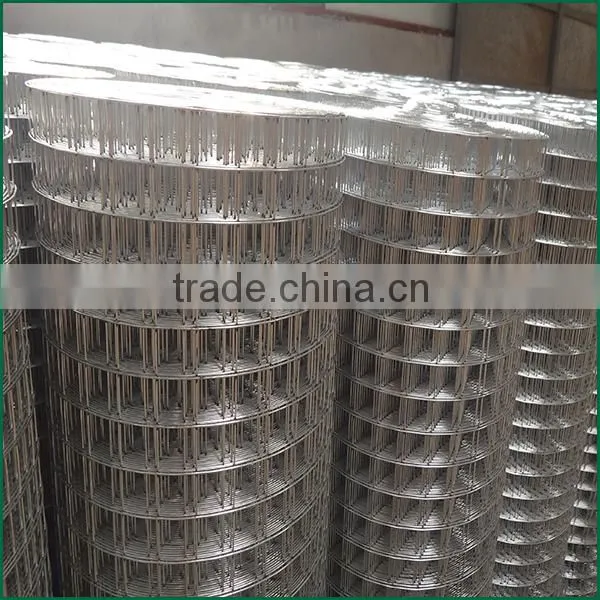

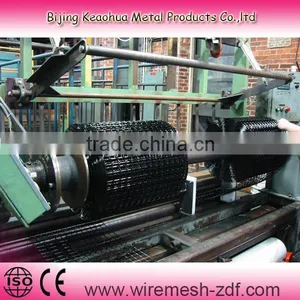

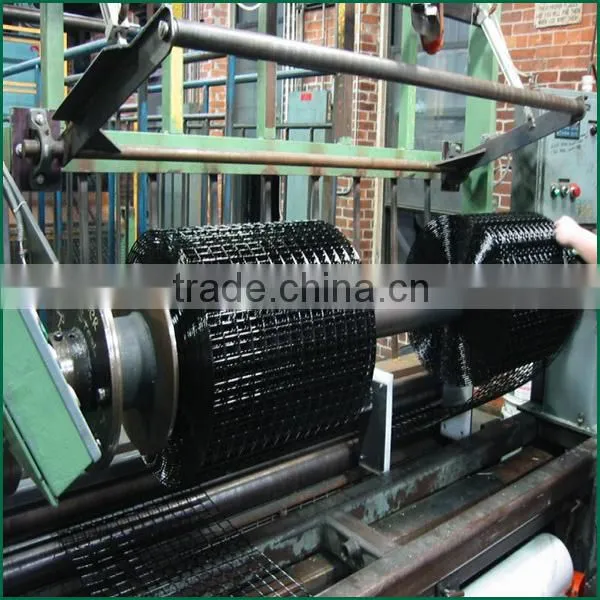

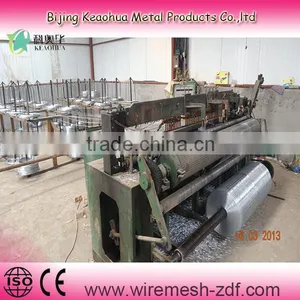

1)   Electric welded wire mesh machine in roll

  • Wire diameter: 0.6-2.2mm
  • Pitch: 1/2"; 1", 2", 3", 4"......
  • Mesh width: 1.2-2m
  • Wire feed way: automatic from wire coils
  • Material: GI wire, black wire
  • Welding speed: max.120 times/min
  • Mesh type: roll mesh

2)   Automatic wire mesh welding machine in panel

  • Wire diameter: 1.8-3.5mm
  • Longitude wire space: 50-200mm
  • Cross wire space: 25-200mm
  • Mesh width: max.1200m
  • Welding seed: 60-80 times/min
  • Control system:  PLC ( Panasonnic ) & HMI
  • Mesh pulling system: servo motor

3)   CNC wire mesh fence welding machine

  • Wire diameter: 2.5-6mm
  • Mesh hole size: 50*25-300*300mm
  • Mesh width: 1.2-2.5m
  • Mesh length: max.6m
  • Control system: PLC&HMI
  • Mesh pulling system: step motor/servo motor
  • Wire feed way: pre-cut



   Automatic Wire Mesh Welding Machine



4)   Automatic wire mesh welding machine

  • Wire diameter: 2.5-6mm
  • Mesh hole size: 50-200mm
  • Mesh width: max.2.5m
  • Mesh length: max.50m
  • Longitude wire feed: from wire coils
  • Cross wire feed: pre-cut
  • Mesh type: panel or roll

5)  Reinforcing steel bar mesh welding machine

  • Wire diameter: 5-12mm
  • Mesh hole size: 100*100-300*300mm
  • Mesh width: max.2.5m
  • Mesh length: max.12m
  • Control system: PLC (Panasonnic)&HMI
  • Mesh pulling system: Panasonnic servo motor

   Automatic Wire Mesh Welding Machine
