Hot rolled ribbed steel bar, cold rolled ribbed steel wire, Steel rebar, Round steel rod.

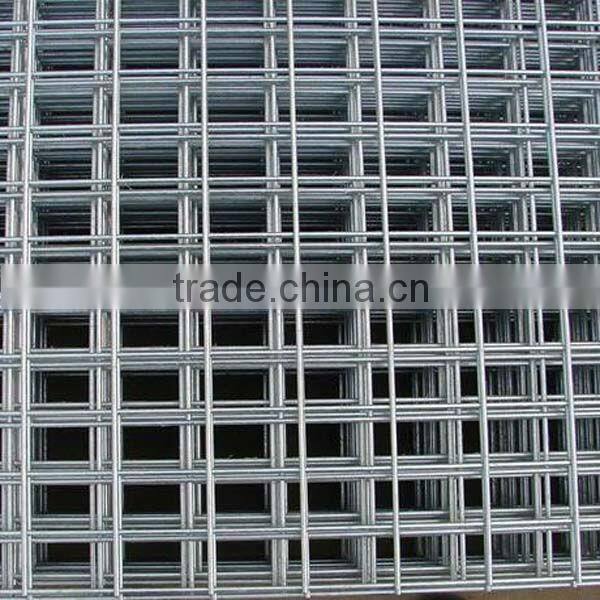

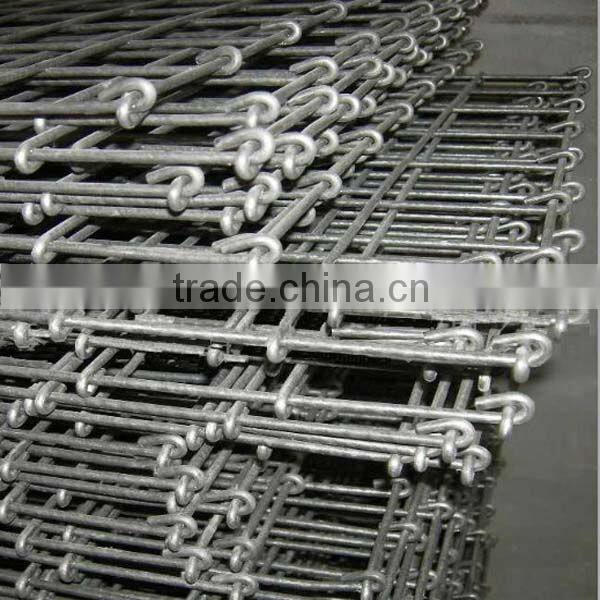

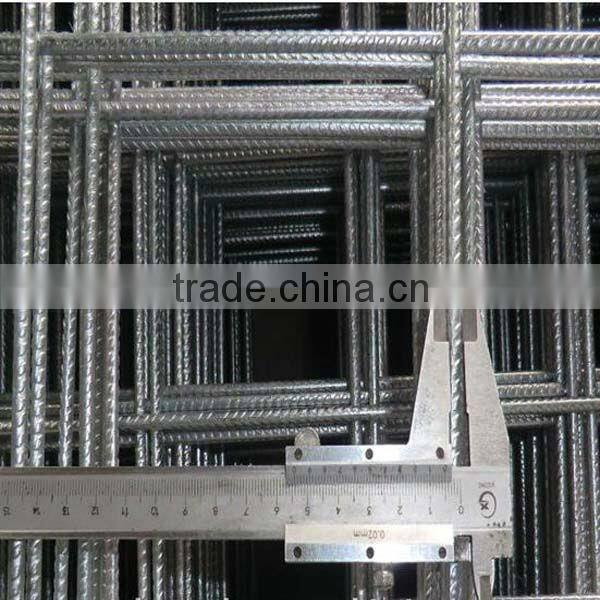

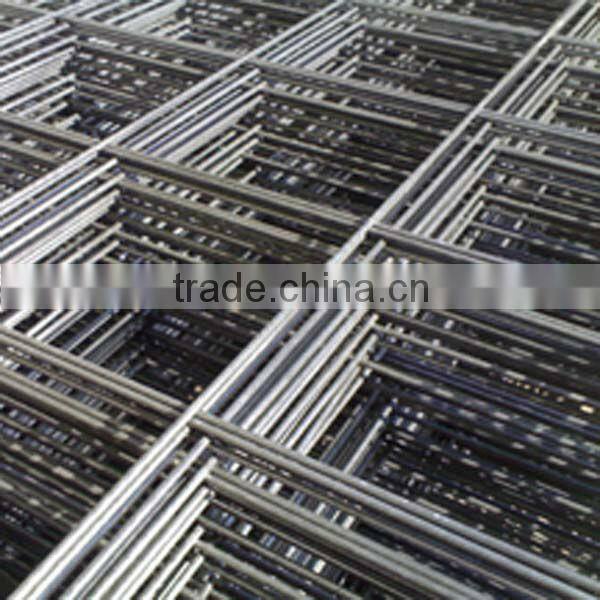

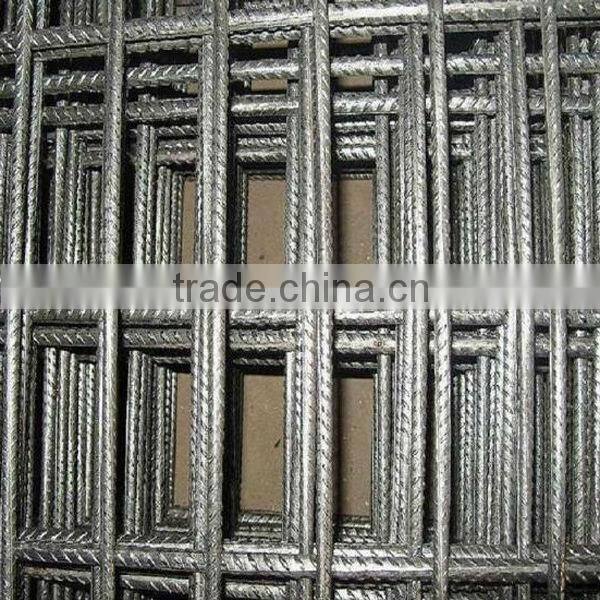

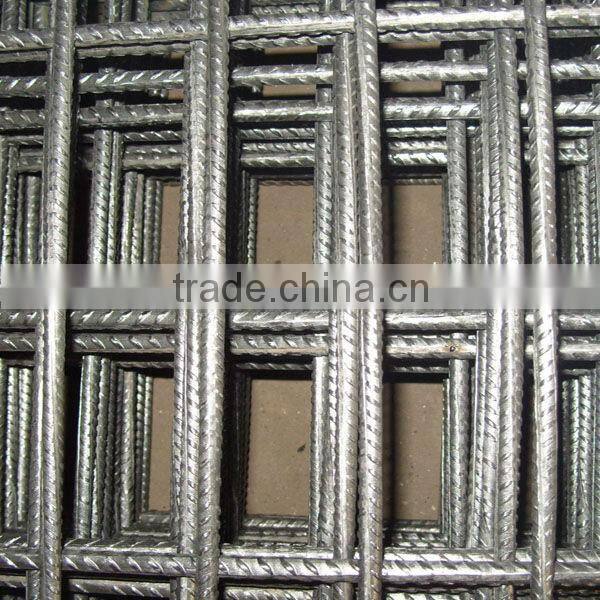

Features of Reinforcing Mesh:

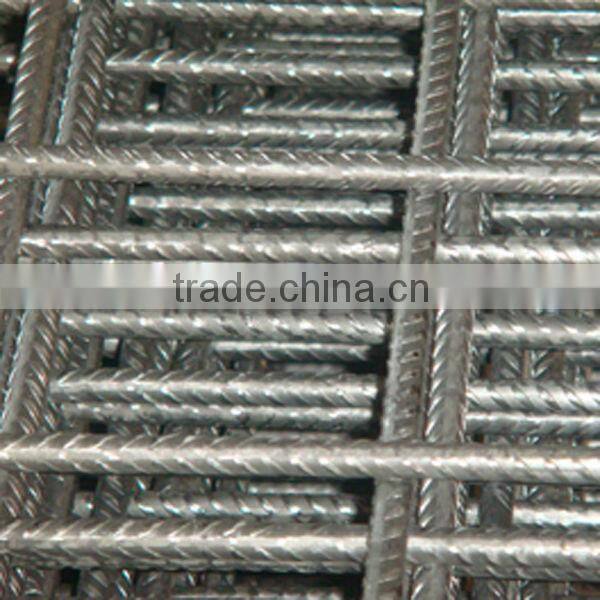

- The unique deformed wire pattern (curry pattern) offers superior bonding, improved stress distribution and crack-width control
- Ferro-Fabric is available in a wide range of diameters and apertures. The products can be bent to shape as required
- Manufactured from hard drawn wire (smooth) and cold rolled wire (deformed)
- All intersections are resistant-welded thereby not reducing the tensile strength of the wires
- Mesh has an average shear strength equal to 80% of the wire strength
- The wire used has physical properties which are rigidly controlled to produce mesh with maximum weld strength combined with ductility
- The steel specifications allow for cold rolled wire with a minimum ultimate tensile strength of 510Mpa and a high resistance to fatigue
- Mesh is available in black (pre-galvanised) and galvanised sheets or rolls
- Also available on request: plastic coated and hot dipped (galvanised) mesh
Use:

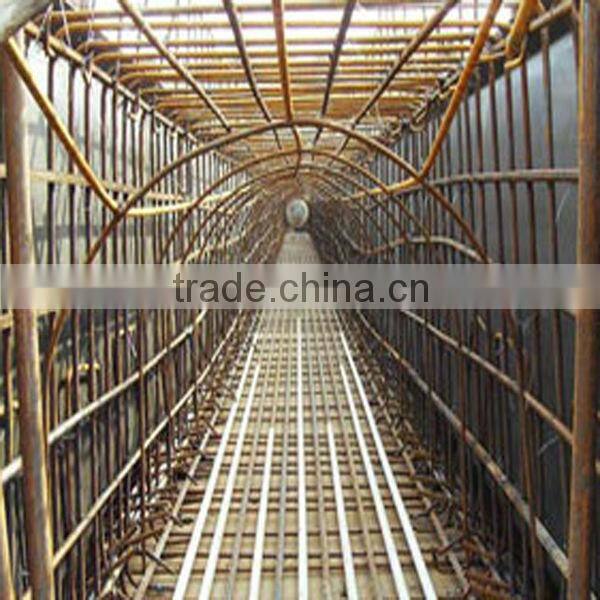

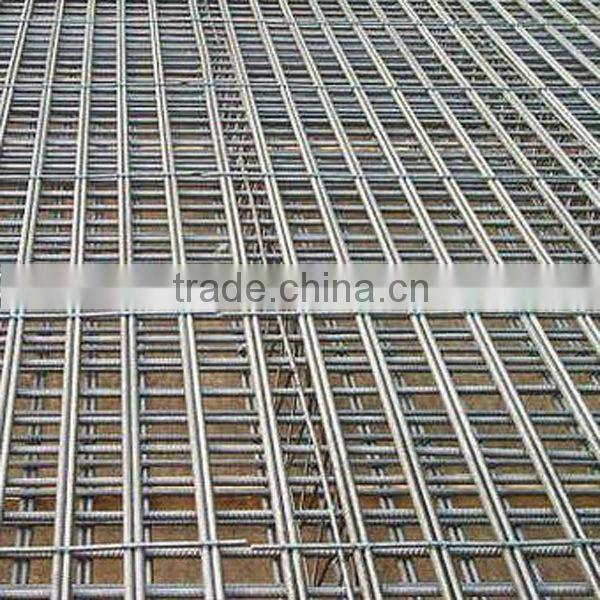

Concrete Reinforcement in Building, road, bridge, tunnel, mine, floor heating.
Reinforcing mesh specifications:
| Fabric | Mesh Size Nominal Pitch of wire | Wire Sizes | Cross Sectional area/m width | Nominal mass/m2 | |||||
| Ref No. | Main mm | Cross mm | Main mm | Cross mm | Main mm | Cross mm | Kg | Supplied in | |
| Square Mesh Fabric | 888 | 200 | 200 | 12 | 12 | 566 | 566 | 8.88 | Sheets only 6m x 2.4m |
| 746 | 200 | 200 | 11 | 11 | 475 | 475 | 7.46 | ||
| 617 | 200 | 200 | 10 | 10 | 393 | 393 | 6.17 | ||
| 500 | 200 | 200 | 9 | 9 | 318 | 318 | 5.00 | ||
| 395 | 200 | 200 | 8 | 8 | 251 | 251 | 3.95 | ||
| 311 | 200 | 200 | 7.1 | 7.1 | 198 | 198 | 3.11 | ||
| 245 | 200 | 200 | 6.3 | 6.3 | 156 | 156 | 2.45 | ||
| 193 | 200 | 200 | 5.6 | 5.6 | 123 | 123 | 1.93 | Sheets or rolls | |
| 100 | 200 | 200 | 4 | 4 | 63 | 63 | 1.00 | ||
| Design Mesh Fabric | 1085 | 100 | 200 | 12 | 8 | 1131 | 251 | 10.85 | Sheets only 6m x 2.4m |
| 943 | 100 | 200 | 11 | 8 | 951 | 251 | 9.43 | ||
| 772 | 100 | 200 | 10 | 7.1 | 786 | 198 | 7.72 | ||
| 655 | 100 | 200 | 9 | 7.1 | 636 | 198 | 6.55 | ||
| 517 | 100 | 200 | 8 | 6.3 | 503 | 156 | 5.17 | ||
| 433 | 100 | 200 | 7.1 | 6.3 | 396 | 156 | 4.33 | ||
| 341 | 100 | 200 | 6.3 | 5.6 | 312 | 123 | 3.41 | ||
| 289 | 100 | 200 | 5.6 | 5.6 | 246 | 123 | 2.89 | ||
| Longitudinal Mesh Fabric | 278 | 100 | 300 | 6.3 | 4 | 312 | 42 | 2.78 | Sheets only 6m x 2.4m |
| 226 | 100 | 300 | 5.6 | 4 | 246 | 42 | 2.26 | ||
| 133 | 100 | 300 | 4 | 4 | 126 | 42 | 1.33 | Sheets or rolls 60m x 2.4m | |
| Special Mesh | 200 | 100 | 100 | 4 | 4 | 126 | 126 | 2.00 | |
| 156 | |||||||||
Reinforcement Steel Rebar Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rebar Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rebar Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Coal Mine Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m

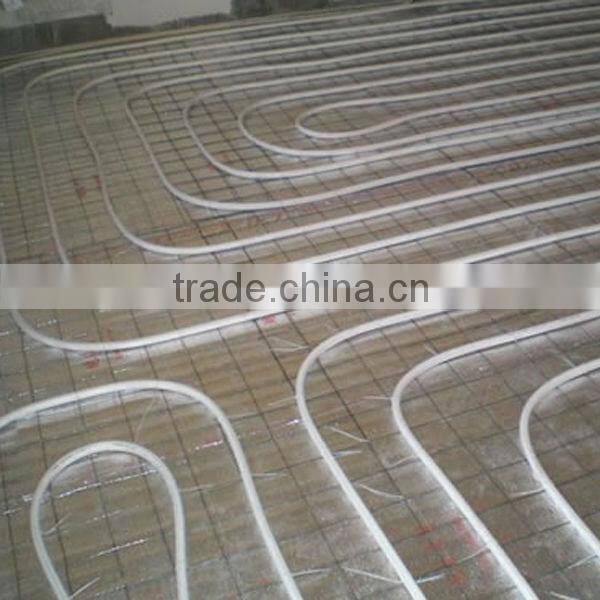

Floor Heating Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rebar Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rod Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
Reinforcement Steel Rebar Welded Mesh, Wire Dia: 4-16mm, Opening: 75-300mm, Width:1-2.5m; Length: 1-6m
