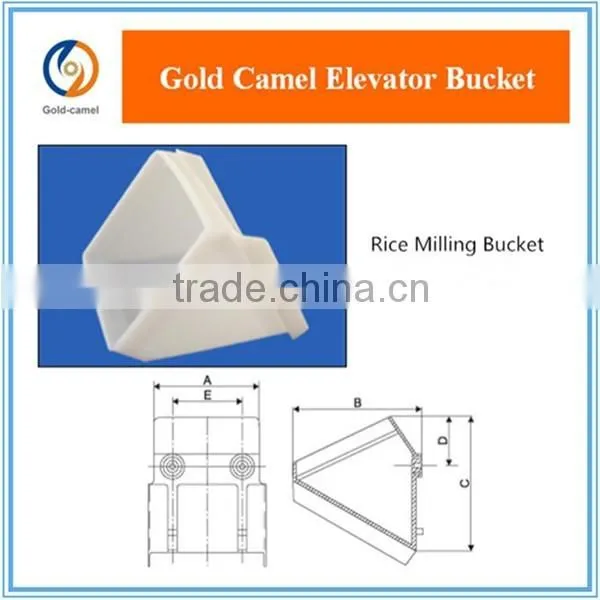

High-capacity milling mixing Elevator Bucket (Rice Milling) for industry
Over 12 different models are available for agricultural and industrial applications.
A direct replacement for many international brands.
Our buckets are highly cost performance.

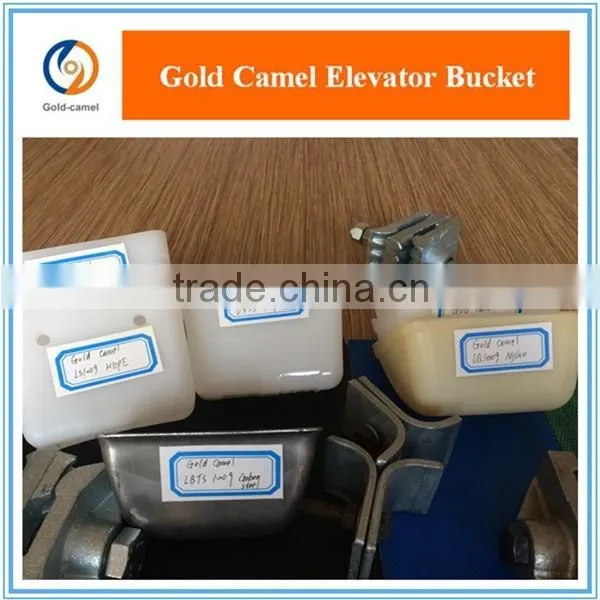

Raw material comparison
Material |
Mild Steel |
Stainless |
HDPE |
Nylon |
Reinforced Nylon |
Polyurethane |
Cost |
2 |
4 |
1 |
3 |
3 |
4 |
Wear resistance |
3 |
4 |
1 |
2 |
3 |
4 |
Impact Resistance |
2 |
2 |
1 |
2 |
3 |
2 |
FDA Approved |
NO |
OK |
OK |
OK |
OK |
NO |
Max Temp °C |
180+ |
250+ |
70 |
100 |
110 |
60 |
Max Temp °C Peak |
220 |
400 |
80 |
120 |
130 |
70 |
Property of Raw material
HDPE: tough and flexible,suitable for handing grains, foodstuffs and other produts with no sharp edges and material that has a bulk density of less than 1g/cm3.
Nylon: High impact and abrasion resistance, better heat and are well suited for handing hot, abrasive and sticky products.
PU: Extremely abrasion resistance,tough and flexible, used in handling sharp, cutting and sticky products.
Mild Steel: General purpose, long life, used in agricultural and industrial products.
Stainless Steel: Food grade, corrosive resistance, application for food and high temperature products.

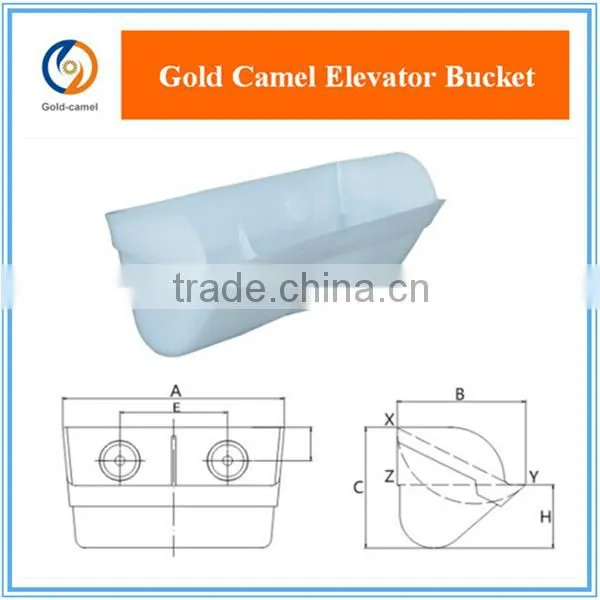

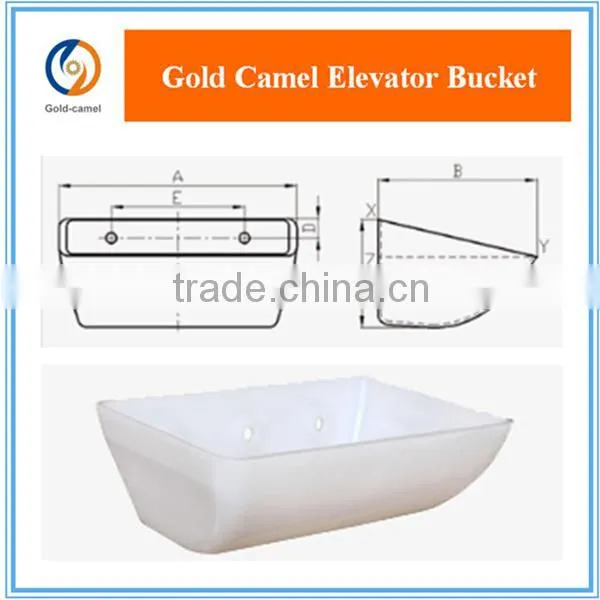

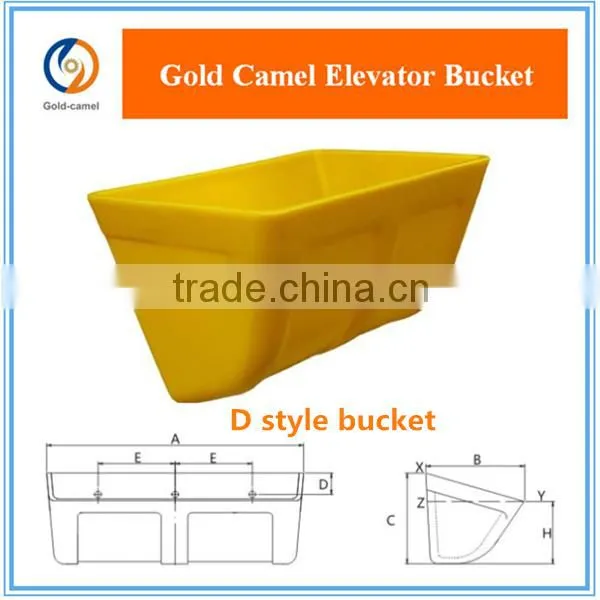

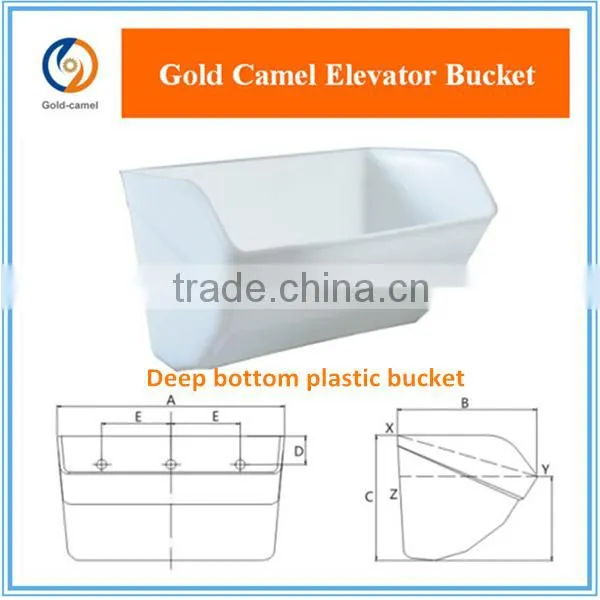

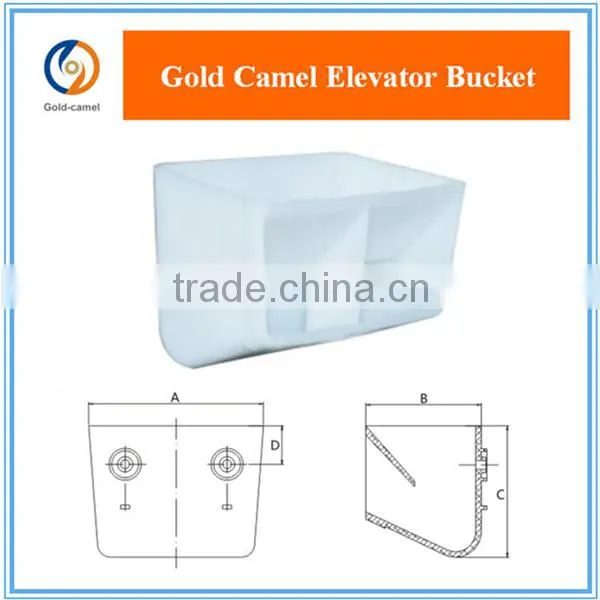

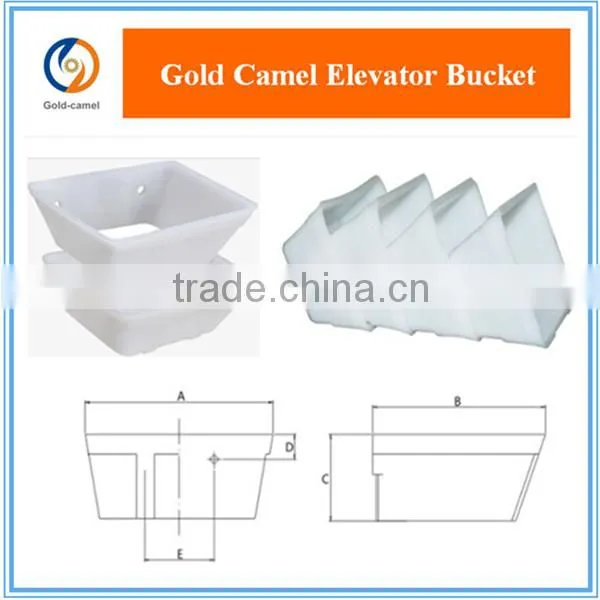

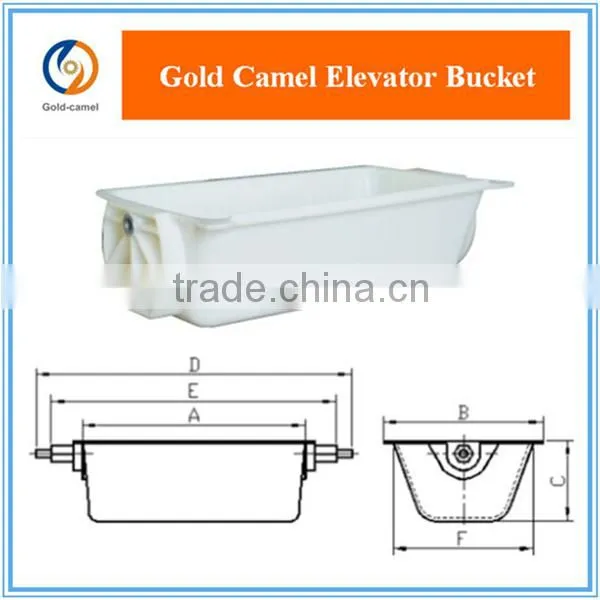

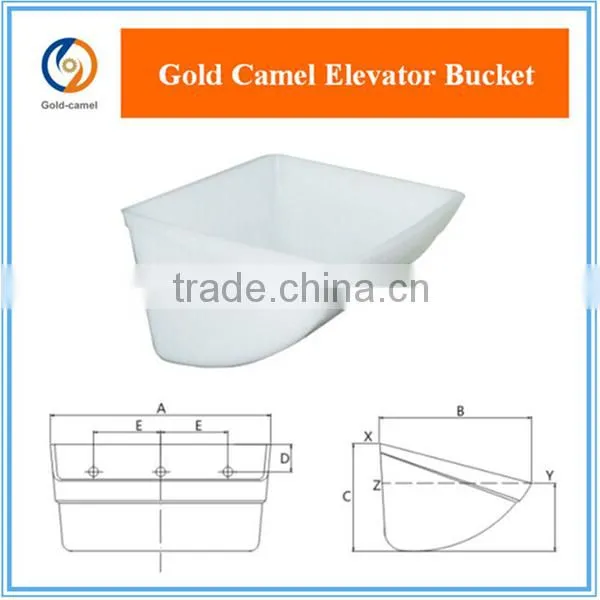

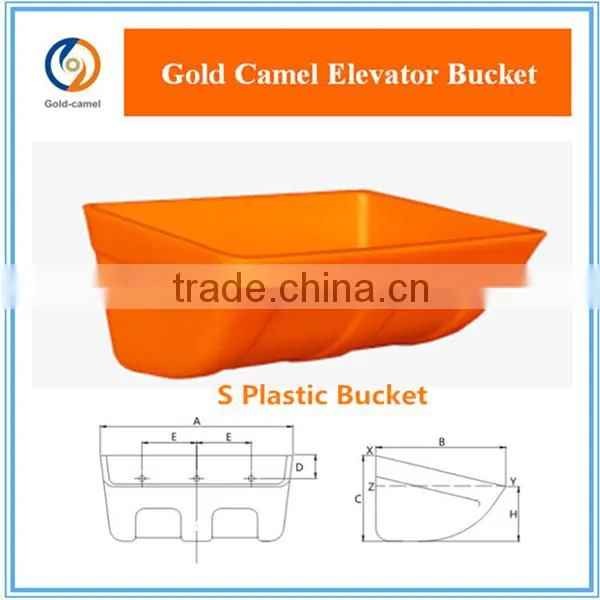

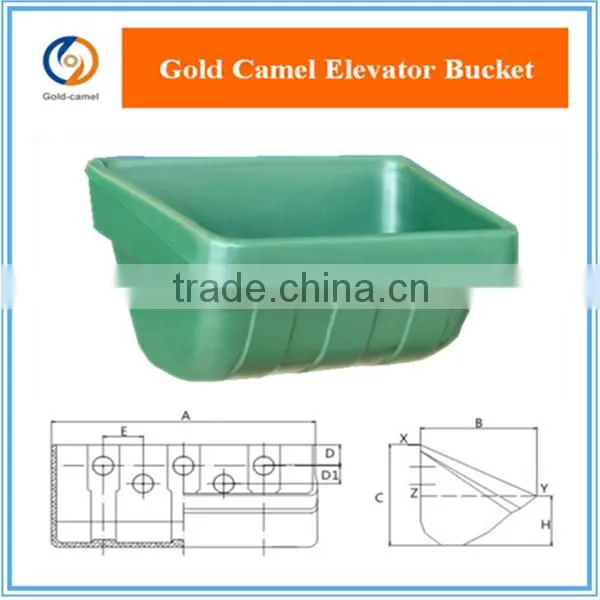

Measure the size of bucket
More details, please click the following linked products!!
Sample:
Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.
How to order your buckets:
Step1: choose bucket material
Step2: measure the size of bucket

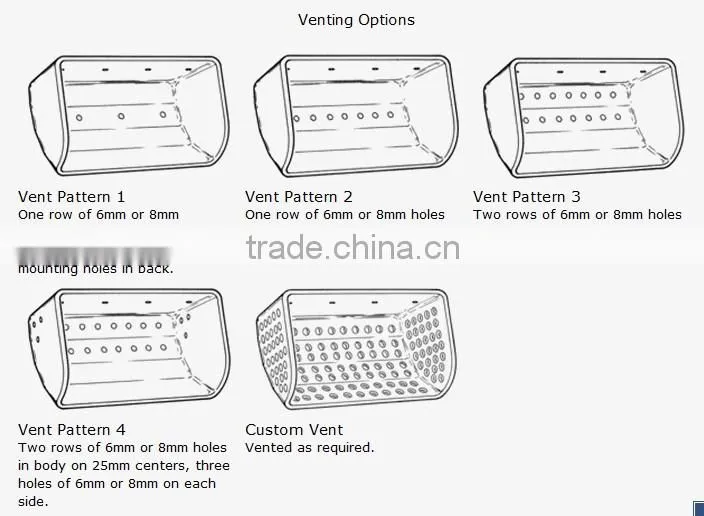

Step3: choose the vent pattern, if needed

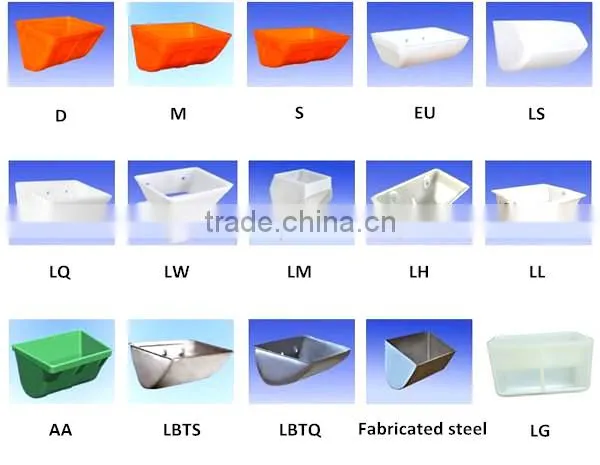

Step4: bucket type
Mould Customized:
A new mould costs range from $1500 to $6000, which depends on the size and material of customized buckets. We will return the charge when your total quantity reaches a certain quantity.
Having specialized in mechanical conveyor systems products for more than 15 years, Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Elevator buckets & Fittings.
