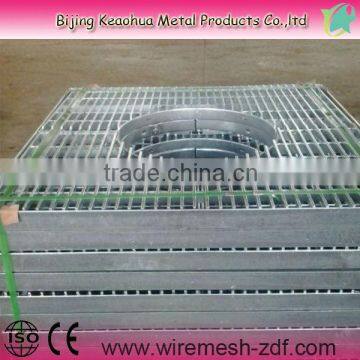

Galvanized steel round cast iron grate
- 10000 Square Mile / Square Miles per Month
- Xingang/Tianjing
- Credit Card PayPal
Product Details
Place of Origin: | Beijing, China | Brand Name: | KAH | Model Number: | KAH-SG |
Material: | Steel |
Product Description
Galvanized steel round cast iron grate
Three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
Type | Welded steel grating, pressure-locked, socket-welding |
Steel flat size | 20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm |
Beraing bar pitch | 12.5,15,20,25,30,35,40,50mm |
Cross bar pitch | 38,50,80,100mm |
material | Low carbon steel, stainless steel, aluminium |
Surface treatment | Untreated, hot galvanized, painted |
Standards | China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS 1657-1985 |
Products pictures.
