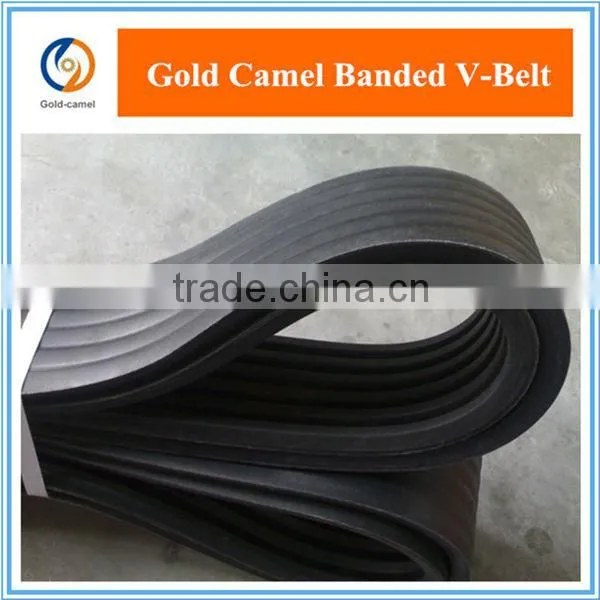

Banded V belt ( RA/RB/RC/RD/9J/15J/25J/R3V/R5V/R8V)
Features:
Banded V belt is made up from Classical or Narrow belts with a strong tie band over them.
The connection layer composed by power cord and full elastic rubber, which joints each single V-belt together. It also minimizes the vibrations from the nonuniformity working of single v belts. There is a certain of vertical surface between single belts, which makes full space for the connection layer and the outer peripheral surface of the pulley. It avoids the friction between layer and pulley. And also avoids to tear the layer and can accommodate debris.
The banded belts are vulcanized consistently by the same material. It enables each rib has the same length. With excellent overall load, it makes the belt stress evenly, smooth operation, high capacity, long life, suitable for high-power transmission.
They effectively solve problems such as wobbling,smacking and turning over occured in single belt operation while ensuring equal stress of each belt and a large transsmission load.
Main type:
Classical banded V belt: RA, RB,RC,RD
Narrow banded V belt: R3V,R5V,R8V,RSPZ, RSPA,RSPB,RSPC, 9J, 15J, & 25J.
Detail specification
Model Type |
Top Width (mm) |
Height for single (mm) |
Height for banded (mm) |
Pitch width (mm) |
Length available (mm) |
Max. Rib No.s |
AJ |
13 |
8 |
10 |
15.88 |
1200-10000 |
20 |
BJ |
17 |
10 |
13 |
19.05 |
1200-10000 |
16 |
CJ |
22 |
13 |
17 |
25.4 |
1800-10000 |
12 |
DJ |
32 |
19 |
21 |
36.53 |
1900-15000 |
-- |
3V,9J |
9.7 |
7.9 |
9.7 |
10.3 |
1000-10000 |
20 |
5V,15J,SPB |
15.7 |
13.5 |
15.7 |
17.5 |
1200-10000 |
20 |
8V,25J |
25.4 |
23 |
25.4 |
28.6 |
1900-12500 |
-- |
SPC |
22 |
18 |
20 |
25.5 |
1900-10000 |
12 |
Properties and Advantages: |
|
Excellent operational safety |
|
Narrow profile ribs provide savings through efficiency. | |
Joined construction for problem drives | |
Up to 50% more horsepower capacity | |
Temperature range from -40℃to +80℃ | |
Static conductive to ISO1813 | |
Oil, Heat, ozone, and abrasion resistant. | |
Reduced noise level | |

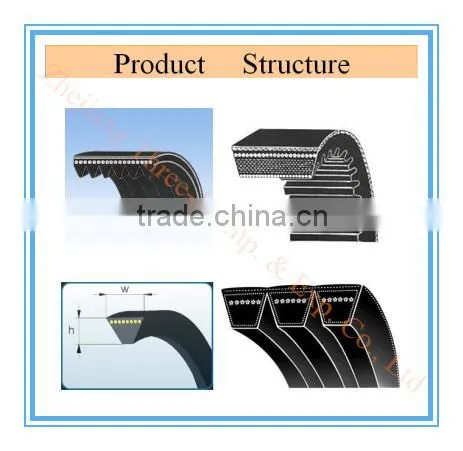

Structure: |
|
|
Outside fabric: Polyester cotton canvas | ||
Tensile memeber: Polyester cord | ||
Top rubber: NR, SBR | ||
Buffer Rubber: NR, SBR | ||
Bottom Rubber: NR, SBR | ||
|
Application: The banded belts are widely used in Vertical shaft drives, V-flat drives, Compressors, Pumps and Agricultural drives. Crushers, Saws,Screens |
Lathes, Sanders |
Dryers, Blow Tanks |
Chain Drives, Washers |
View more products, please click on images below:
Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
