High-Quality V.Belt

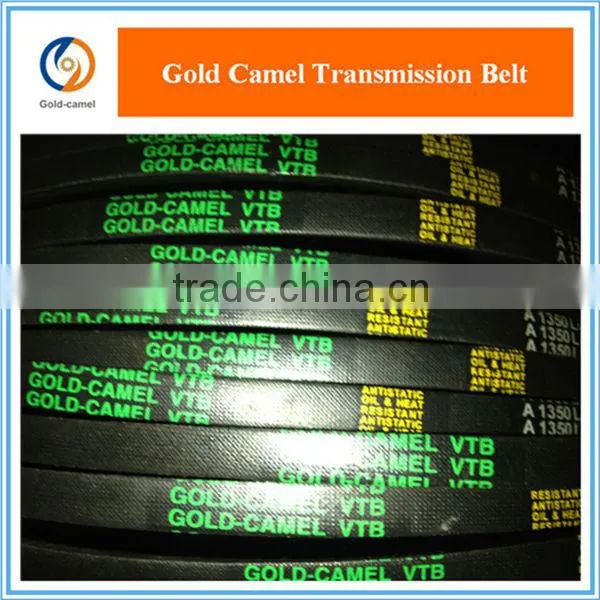

1.Classical V belt.This belt is very commonly used for power transmission. We supply a wide range of types including heat resistance, oil resistance and flexible types.
Application: General Engineering Industries & Agricultural Industries
Main Type: FM, M, K, Z, A, B, C, D, E, 3L, 4L and 5L
2.Narrow v-belt has double power transmission capacity of the classic v-belts due to the effect of the wedge. It features high-speed transmission, and an energy-saving, compact design.
Application: Narrow v-belt can be used on all the new drives, from light duty drives to heavily loaded drives.
Main Type: SPZ, SPA, SPB, SPC, 3V, 5V and 8V
3.Banded v-belt is made up from Classical, or Narrow belts with a strong tie band over them.
Application: used in Vertical shaft drives, V-flat drives, Compressors, Pumps and Agricultural drives.
Main Type: RA, RB, RC, R3V, R5V, R8V, RSPZ, RSPA, RSPB and RSPC
4.Double V-Belt, also named Six side Belt, there are four side on the working section.
Application: Textile and Agriculture machine.
Main Type: AA, BB and CC
Specification Availability:
| Section | Top Width(mm) | Thickness(mm) | Length Range(mm) | Angle(°) |
| A | 13 | 8 | 356~6000 | 40 |
| B | 17 | 11 | 533~13000 | |
| C | 22 | 14 | 800~15000 | |
| D | 32 | 19 | 1800~15000 | |
| E | 38 | 23 | 1800~15000 | |
| SPZ | 10 | 8 | 375~3810 | |
| SPA | 13 | 10 | 647~10000 | |
| SPB | 17 | 14 | 1000~10000 | |
| SPC | 22 | 18 | 1780~10000 | |
| RA | 13.6 | 10 | 1200~5000 | |
| RB | 17 | 13 | 1200~10000 | |
| RC | 22.4 | 16 | 1800~10000 | |
| 3V | 9 | 8 | 375~3810 | |
| 5V | 15 | 13 | 1100~10000 | |
| R3V | 9.7 | 9.7 | 1200~5000 | |
| R5V | 15.8 | 15.8 | 1500~10000 | |
| AA | 13 | 10 | 1524~4572 | |
| BB | 17 | 13 | 2032~6350 | |
| CC | 22 | 17 | 2540~6350 |
Auto V Belt
| Section | Pitch(mm) | angle | Thickness(mm) | Rib Numbers | Length range(mm) |
| PK | 3.56 | 40° | 6 | 3-24 | 500-2900 |
| Section | Top Width | Thickness(mm) | Length Range(mm) | ||

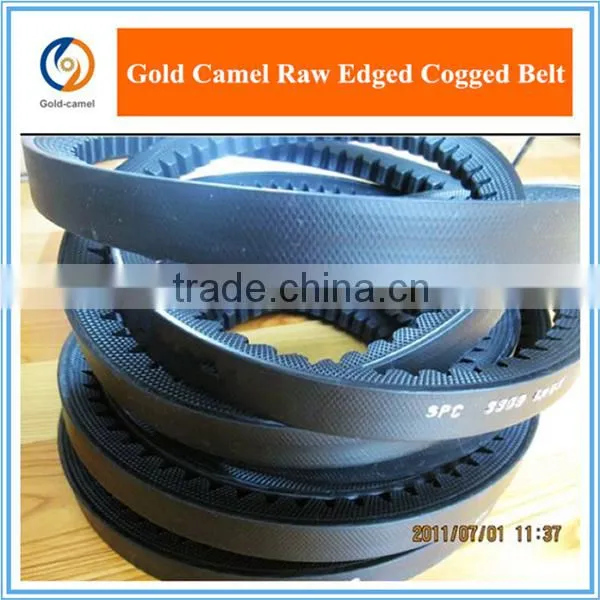

| Raw edged | Raw edge laminated | Raw edge cogged | |||
| AV10 | 10 | 7.5 | 7.5 | 8 | 595-2000 |
| AV13 | 13 | 8.5 | 8.5 | 9 | 600-2300 |
| AV15 | 15 | - | - | 9 | 615-2500 |
| AV17 | 17 | 9.5 | 9.5 | 11 | 860-2500 |
| AV22 | 22 | - | - | 13 | 860-2500 |
View more products, please click on images below:
Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
