PVC Coated Wire

PVC Coated Wire thumbnail-1
PVC Coated Wire thumbnail-2
PVC Coated Wire thumbnail-3
PVC Coated Wire thumbnail-4
PVC Coated Wire thumbnail-5
PVC Coated Wire thumbnail-6
PVC Coated Wire photo-1

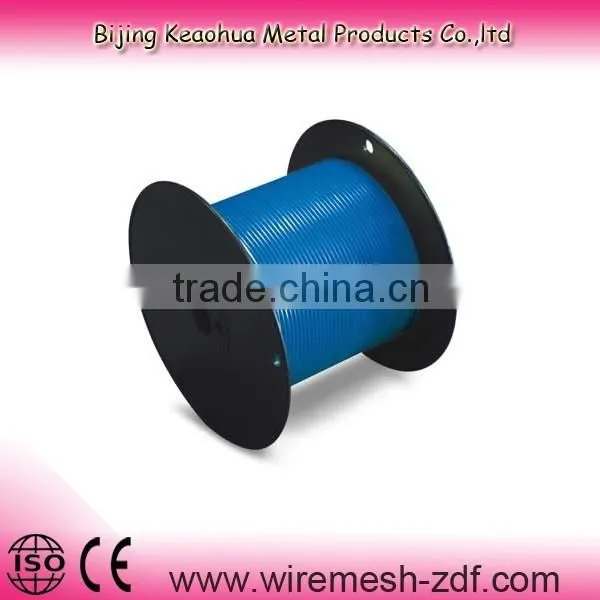

PVC Coated Wire photo-2

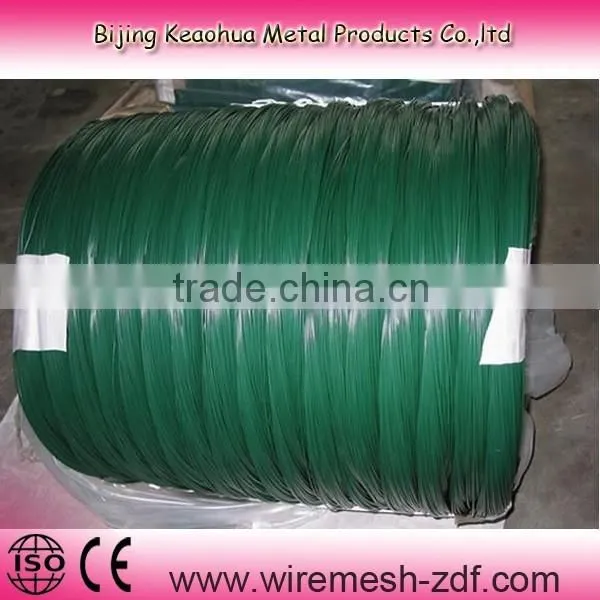

PVC Coated Wire photo-3

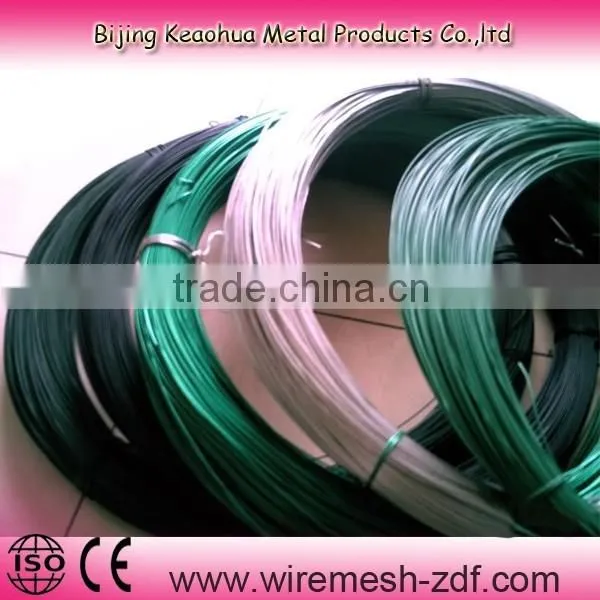

PVC Coated Wire photo-4

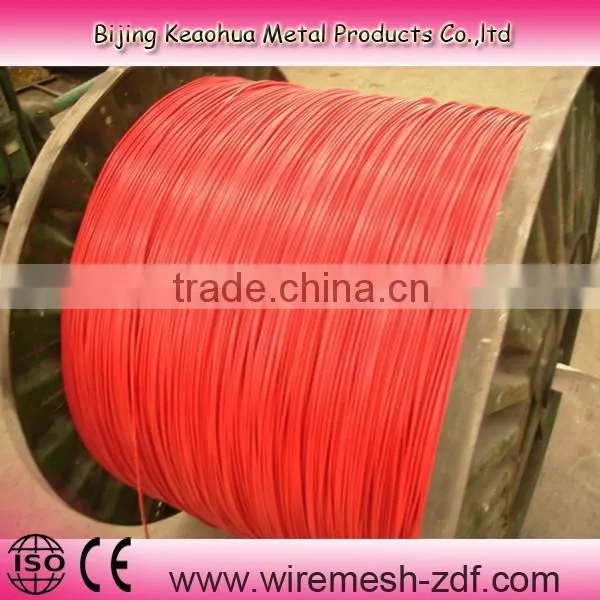

PVC Coated Wire photo-5

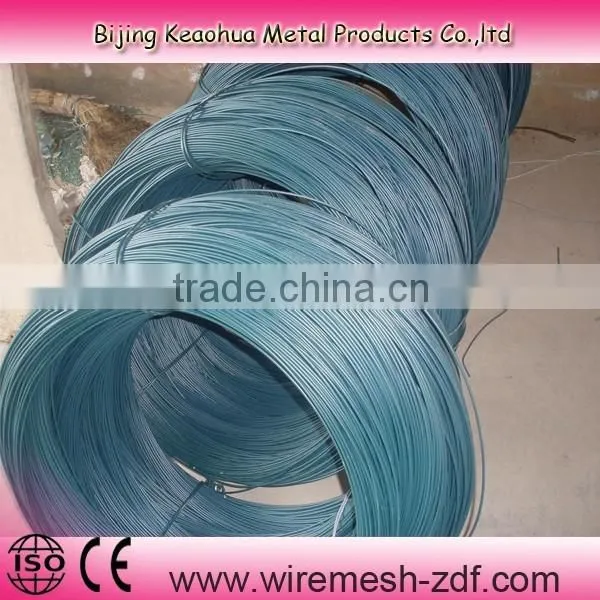

PVC Coated Wire photo-6
US$ 700 - 850 MOQ: 5 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Keaohua, Keaohua
Model Number:
KAH21000
Contact Supplier Request Quote Chat Now
Beijing Keaohua Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Keaohua, Keaohua
Model Number KAH21000
Surface Treatment Galvanized
Galvanized Technique Hot Dipped Galvanized
Type Loop Tie Wire
Function Binding Wire
Wire Gauge 2mm

PVC / Hot Dipped/Electro Galvanized Iron/Steel Wire





Hot-dip galvanized iron wire



Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, anealing, acid washing and rust removing, zinc coating and coiling. It’s mainly used in construction, binding wire, handicrafts, woven wire mesh, express way fencing mesh, agriculture shelf, packaging of products and other daily uses.



Size range: BWG 8-BWG 22



Zinc coat: 30-360g/m2



Tensile strength: 350-550N/mm2



Elongation: 10%



Packing: 1-1000kgs/coil, coil with plastic cloth inside and hessian outside or weave outside







Electro galvanized iron wire



Electro galvanized iron wire is made with choice mild steel, through wire drawing, anealing, acid washing and rust removing, zinc coating and coiling . Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.



Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28



Zinc coat: 10-30g/m2



Tensile strength: 350-550N/mm2



Elongation: 10%



Packing: 1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave cloth outside







Specifications

  Electro galvanized wire Hot dipped galvanized wire
Specification 0.2-4.0mm 0.55-5.0mm
Zinc rate 7-18g/m2 40-365g/m2
Tensile  strength 30kg-55kg/m2
Elongation rate 10%-30%
Weight/coil 0.1kg-1000kg/coil
Packing

In roll-plastic inside and hessian woven outside

In roll-plastic inside and nylon woven outside

Or in U type ,straight cut,and bobbin



Wire gauge list

 Wire gauge size

SWG

(mm)

BWG

(mm)

 Metric(mm)
8 4.06 4.19 4.00
9 3.66 3.76 -
10 3.25 3.40 3.50
11 2.95 3.05 3.00
12 2.64 2.77 2.80
13 2.34 2.41 2.50
14

2.03

 2.11 -
15

1.83

 1.83 1.80
16

1.63

 1.65 1.65
17

1.42

 1.47 1.40
18 1.22 1.25 1.20
19 1.02 1.07 1.00
20 0.91 0.89 0.90
21 0.81 0.813 0.80
22 0.71 0.711 0.70



 PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,





PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,





PVC Coated Wire





PVC Coated Wire









PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,





 PVC Coated Wire



  Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,







 PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,



 PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,





PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, then green PVC coated, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,





PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,







PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,









PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,









 PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,







 PVC Coated Wire

 Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,

coil length:500/1000/1200m,



PVC Coated Wire
